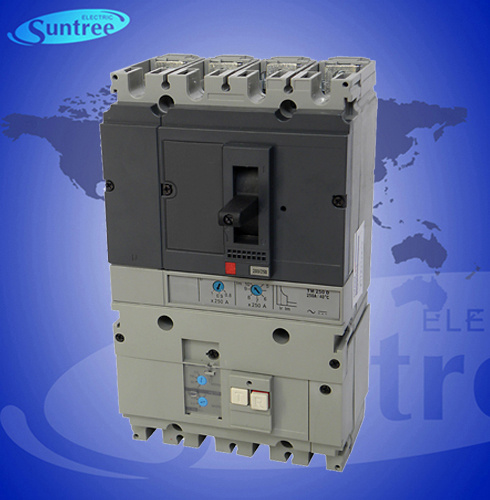

Earth Leakage Moulded Circuit Breakers (SNSL ELCB)

Name: Earth Leakage Moulded Circuit Breakers (SNSL ELCB)
Brand: all-electronics-online.com
SKU: 695263855
Availability: InStock
Rating: 4.4 (65 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

1. Application

SM2 series molded case circuit breaker (hereinafter called circuit breaker) is applicable circuit of AC 50Hz/60Hz, rated insulation voltage 750V, rated operating current up to 1250A, They are for distribution energy of electricity and infrequent making and circuit, in normal conditions. The rated current under 400A are provided with the function of the protection against overload and short circuit and under voltage.

2. Standard

SM2 series molded case circuit breaker complies with standard of IEC60947-4.

Features and Benefits
1. Earth leakage protection by associated Vigi Module
2. Compliance with international standards: IEC 60947-1 and 2
3. Breakers can be installed vertically or horizontally
4. The auxiliary device of SM3L is the same as SM3
CONDITIONS:
1. The altitude not exceeding 2000m;

2. The ambient temperature is from +40degree to - 5degree; And 24 hour cant't over 35degree;

3. Ambient enviornment freeing from explosive danger and air or dust which may cause corrosion of metal or weakness of insulation;

4. Ambient enviornment freeing from erosion of rain or snow;

5. Pollution degree 3;

6. Circuit instalation calss III.

Sensitivity, In(A)	Fixed	Adjust	Adjust
Delay time	0.3	0.03-0.3-1-3-10	0.3-1-3-10-30
Delay settings (ms)	Fixed < 40	adjust 0 60(2) 150(2) 310(2)	adjust 0 60 150 310
Total breaking time (ms)	< 40	< 40 < 140 < 300 < 800	< 40 < 140 < 300 < 800
Rated voltage(V) AC50/60Hz	200...440	200...440-440...550	200...440-440...550

Prod Model:	SNSL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Working Voltage:	690V
Certificate:	CE-LVD, RoHS
Model:	Ns MCCB
Rated Working Current:	12.5 to 1250A
Rated Insulating Voltage:	950V
All Standard:	Iec947-2
Type:	Circuit Breaker
Function:	Overcurrent Protection~@~Circuit-Breaker Failure P
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CE
Operation:	Manual Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Xinchi Electric Co., Ltd. is the best one, which stands out above the rest in China intelligent low voltage electrical field, meanwhile it is a grouping company in the "city of electrical".There are four branch companies subordinate to it:Yueqing Xinchi Electric Sci-Tech Co., Ltd, Yueqing Imp&Exp Co., Ltd, HK Yangming Electrical Technology Co., Ltd and Wenzhou Litto smart Co., Ltd.Moreover.There are 320 workers, the annual output value breakthrough one hundred million, and the export value arrive at ten million.
We always pay attention to manufacture and sell automatic industrial and control system, modular intelligent electrical equipments, such as circuit breakers, residual circuit breakers, contactors, isolators, solid state relay, control and protect switch, automatic transfer switch, electrical fire detecting system, surger protect device, multifunctional meter and new energy system fittings etc.
Especially DC circuit breaker, DC isolating switch, DC fuse, busbar chamber, waterproof switch and other products with leading technical level in this field...We are the first domestic company with CE, CB, IEC, Nemko, SAA, TUV, ISI and CCC certification.Our products are widely used by domestic famous enterprises, and it has become a OEM partner of many international famous brands.

We have fully implement the IS09001:2008 quality management system.It adopts advanced production equipment and precision detecting equipment, introduces high-tech process and high technology talents to provides powerful guarantee for product development, quality upgrading and management innovation of the company.
In order to seek after the excellence, Xinchi will continue to carry on the spirit of "practice, honesty, innovation, active", insist on the policy of " technology promotes industry, Brand promotes industrial", and we believe in "Technology innovation, famous in the world", working hard to let"XINCHI electric brand"walk towards to the world.
