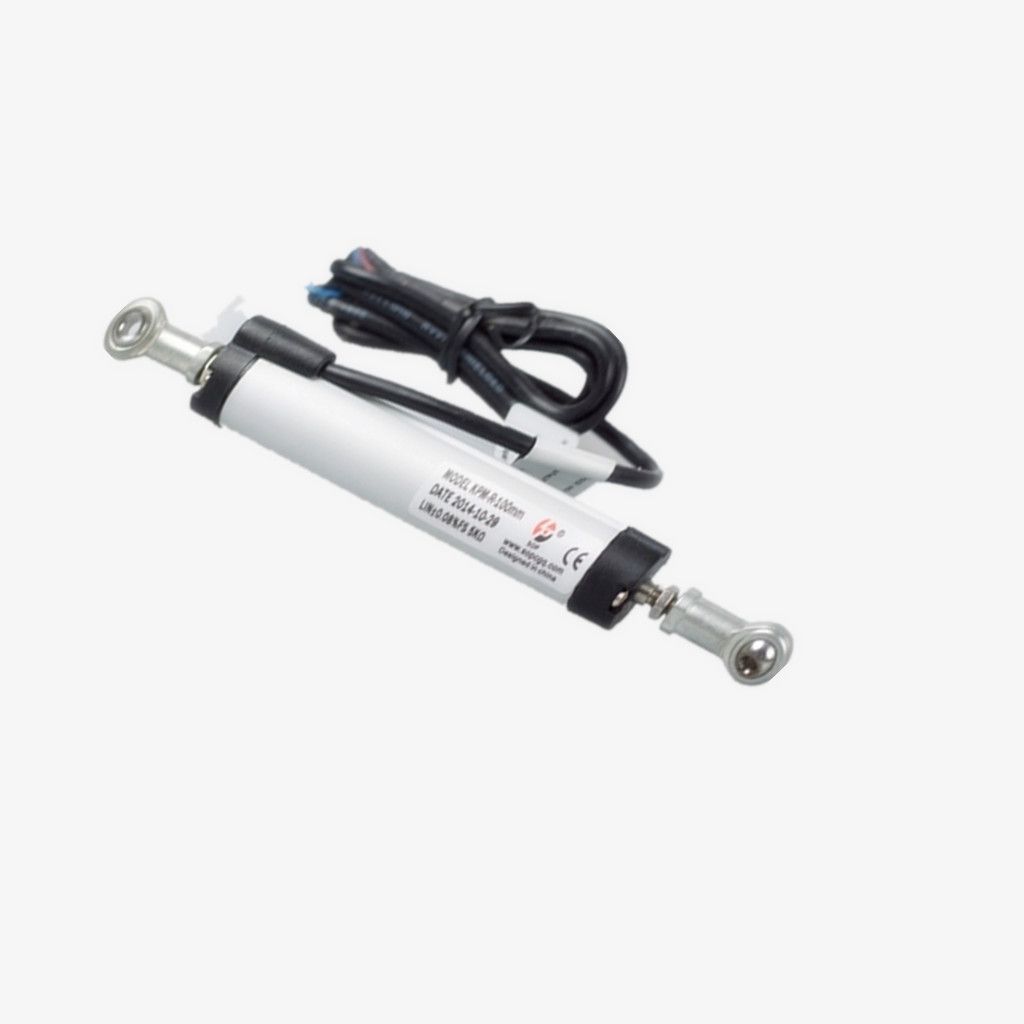

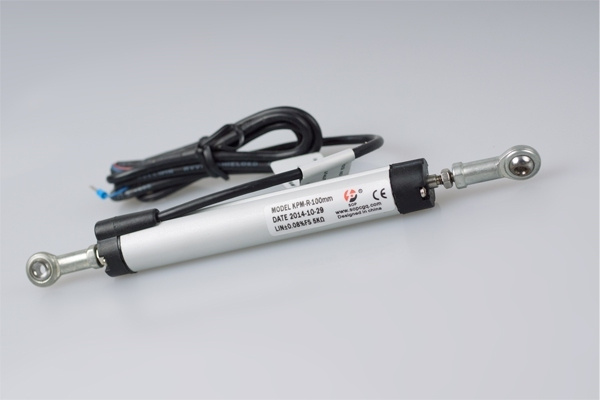

Easy Installation Mini Hinge Joint Linear Displacement Reliable Quality Sensor

Name: Easy Installation Mini Hinge Joint Linear Displacement Reliable Quality Sensor
Brand: all-electronics-online.com
SKU: 825893125
Availability: InStock
Rating: 5 (93 reviews)

Price:	US $ 110-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Easy Installation Mini Hinge Joint Linear Displacement Reliable Quality Sensor

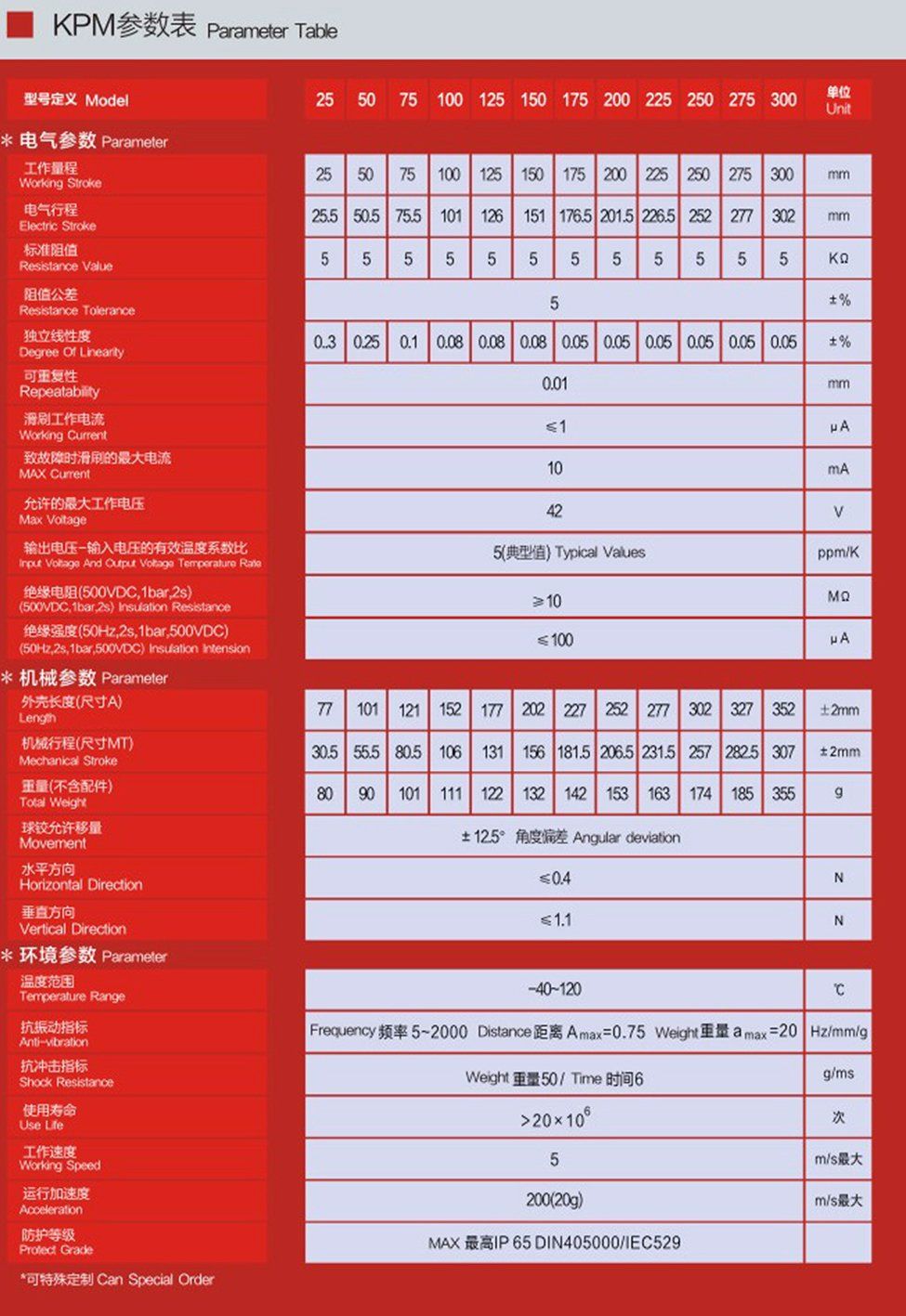

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	5	≤1	25-300	-40~120	≤0.4	≤1.1

KPM is a mini articulated structure, suitable for small installations, an ontology cannot be fixed, moving swing position detection, neutral without any requirements for installation. Such as: Android, fetching machine, brick, ceramic machine, sluice

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current, and Quadrature Encoder.

Product feature:
Volume smaller
Usage life is longer, Times could reach fifty million
Resolution rate is higher than 0.01mm
Could use in all kinds of worse environment(humid, oily, dusty)
Protection grate is ip65
Eye ball joint, could move with big angle
Could equip with voltage and current(2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Prod Model:	KPM-75mm
Working Temperature:	-40~+120
Working Stroke:	25-300mm
Feature:	2line, 3line
Working Speed:	5m/S
Material:	Aluminum Alloy

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
