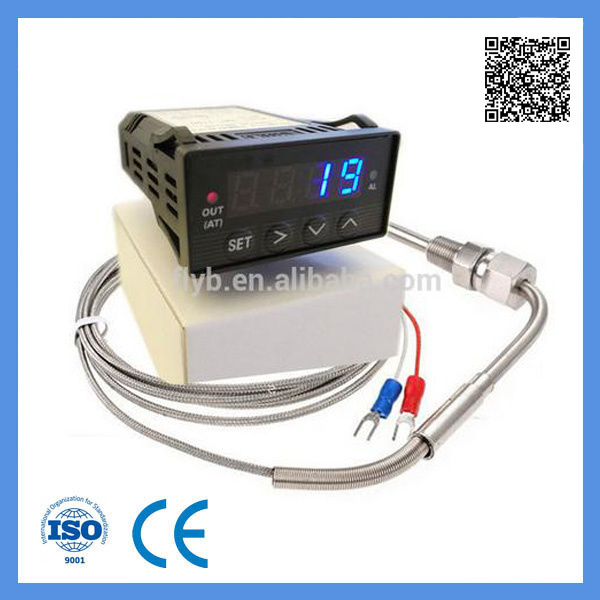

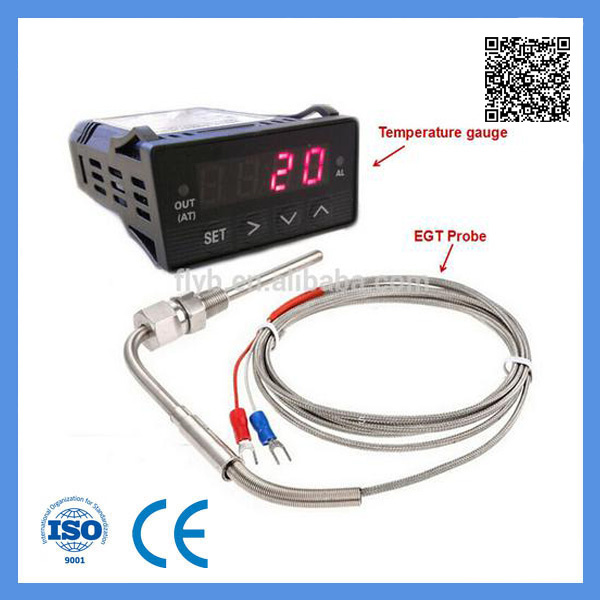

Egt Exhaust Gas Probe Temperature Sensor with Digital Pid Temperature Controller Pyrometer
| Price: |
US $ 23.81-34.78/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
EGT Exhaust Gas Probe Temperature Sensor with Digital PID Temperature Controller PyrometerSPECIFICATIONS

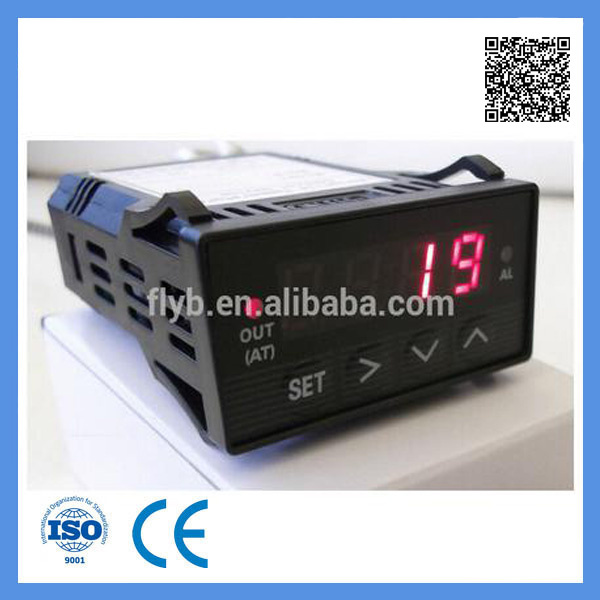

Digital PID temperature controller:
POWER SUPPLY : 12VDC/24VDC
TEMPERATURE RANGE : -200 ~ 1300deg C for type K
INPUT TYPE : Type K
CONTROL OUTPUT : SSR 8VDC
DISPLAY : 4 Digit
ALARM OUTPUT : Relay type 3A
SIZE ; 48mm X 24mm X 75mm
PANEL CUTOUT DIMENSION : 45 X 22mm
FITTING ; Snap type
INSTRUCTION MANUAL INCLUDED
AVAILABLE IN RED ,BLUE ,GREEN, WHITE AND SO ON COLOR DISPLAY

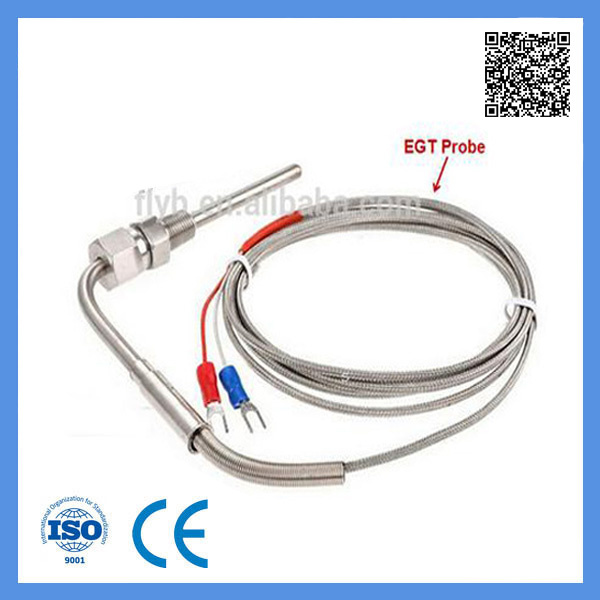

EGT Probe:
TYPE : K type
RANGE : 0-1000deg C
PROBE DIAMETER : 5mm(dia) x 80mm(L)
PROBE MATERIAL : INC0NEL600
RESPONSE TIME CONSTANT : 250milliseconds
JUNCTION : Ungrounded exposed tip
CONNECTION ; Adjustable compression fitting stainless steel
THREAD SIZE : 1/8" NPT
CABLE : 3 meter long with stainless steel braiding with teflon coated inner core cable
PRODUCTS IMAGES
CERTIFICATIONS
COOPERATIONS
FAQ1. Payment ways?T/T, PAYPAL, WESTERN UNION.2. When will you arrange the production?In 12 hours since we get your payment.3. What is your main products?Thermocouple, PT100 sensor, temperature controller, infrared thermometer and son on.4. Product certifications?ISO9001, CE, ROHS, FDA, SGS and other certificates.5. What kind of information shall I give you regarding the shipping?Company name, Recipients, Correct Address, telephone, zip code.6. What is your warranty ?For most of our products, the warranty will be 12 months.7. When will I get a solution for defective products?Within 48 hours (on working days )8. What is your shipping way?DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!9. What is your shipping time?For General Orders, the shipping time will be 5 workdays.
| Prod Model: |
WRN-533 |
| Item: |
Egt Gas Sensor with Digital Pid Controller |
| Type: |
K |
| Egt Temperature Range: |
0-1000deg C |
| Probe Diameter: |
5mm(Dia) X 80mm(L) |
| Junction: |
Ungrounded Exposed Tip |
| Thread Size: |
1/8" NPT |
| Cable Length: |
2 M |
| Certifications: |
Ce/ISO9001 |
