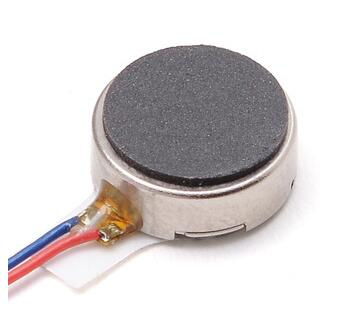

Electric DC Motor 8mm Dia for Wearable Device Vibra C0820
| Price: |
US $ 0.3-0.6/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Technical data:| Motor model | motor size (mm) | Rated voltage | Rated speed | Rated current | Starting current | Starting voltage | Insulation resistance | Operating voltage |
| Diameter | Thickness | V DC | rpm | mA | mA | V DC | MΩ | V DC |
| C0820L-066332017-1001 | 8 | 2 | 3 | ≥10000 | ≤75mA | ≤100mA | ≤2.3 | ≥10 | 2.5-3.8 |

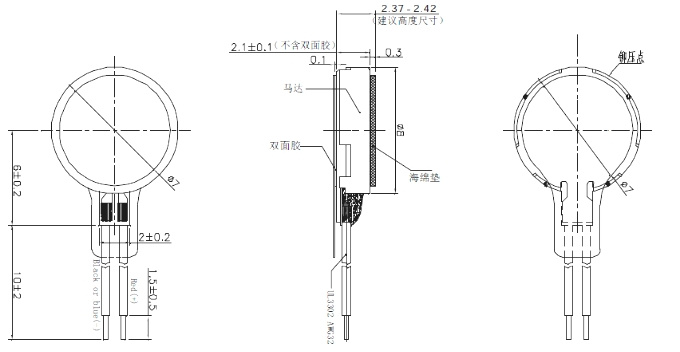

Product Drawing:

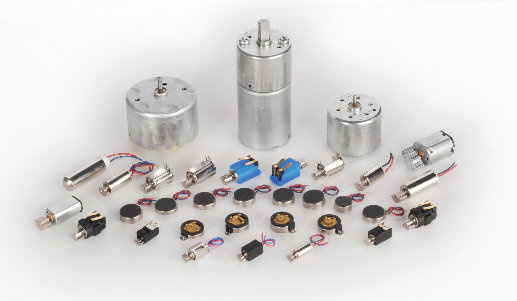

You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, the total lifetime can be 1 million cycles.
8-9 diameter coin type linear vibration motors. V
ibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.

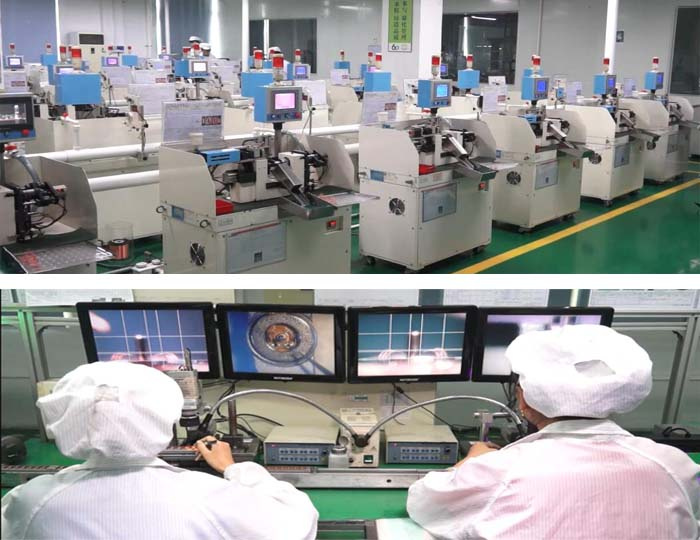

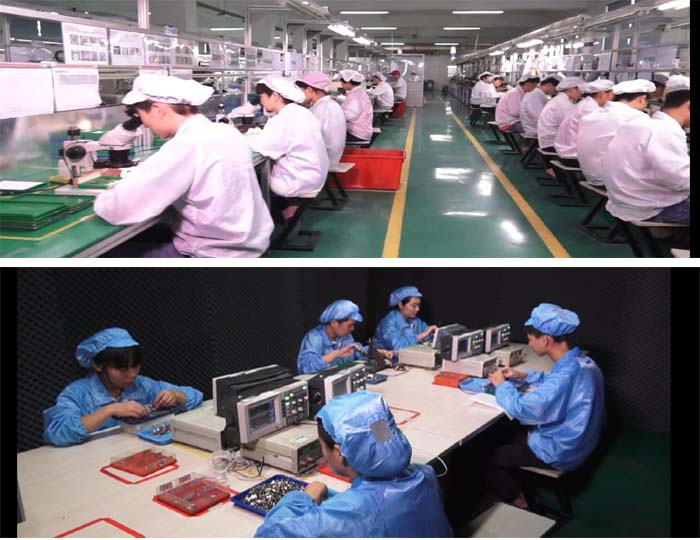

Company Show:
FAQ:Q1.Do you provide the samples?
A:YES! We offer free samples with shipping and taxes paid by the buyer.
Q2.Do you have MOQ requirement?
A:We don't have MOQ limit,small orders accepted.
usually more than 1000pcs and the more you ordered the better price you get.
Q3. Do you have the item in stock?
A:I am sorry we don't have the item in stock, All products are made with orders.
Q4. Do you provide technology support?
A:YES.we have strong R&D capability, we can provide technology support if you need.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Contact Information:SHENZHEN INEED YOUNGSUN TECHNOLOGY CO., LTD.Tel: +86-0769-2289 1073 Fax:+86-0769-2289 1076
China Office:Room 4-1904, Yuan Meng Ya Ju, Zongbu 3rd Road, Songshanhu North Hi-Tech Park, Dongguan, Guangdong 523808, ChinaWeb: www.ineed.hk
| Prod Model: |
C0820L-066332017-1001 |
| Diamater: |
8mm |
| Thickness: |
2mm |
| Rated Speed: |
10000 Rmp Min |
| Rated Current: |
75mA Max |
| Strating Volltage: |
2.3 V DC Max |
| Application: |
Electrical Shavers, Wearable Device |
| Structure: |
Combined |
| Function: |
Vibration,Alert, Haptic Feedback |
| Certification: |
RoHS:Scl01I051009r1;Reach:Scl01I051376003 |
| Brand: |
Ineed |
In over ten years, we, INEED incorporation, and our contract plants, have been manufacturing 3-4mm height reflow solderable SMD type vibration motors, 4-6mm diameter cylinder type vibration motors, 5-9 diameter coin type brushless vibration motors, 8-9 diameter coin type linear vibration motors, 8-10mm diameter coin type brushed vibration motors, 8-20mm width big strong vibrator motors. These motors are widely used in telecom devices and healthcare products. We are also making 6-15mm diameter planetary gear motors and 10-36mm diameter micro motors. They are popularly used in medical devices and robotic products.
We have been making the best efforts to become one of the leading micro motor manufacturers in this industry. Our mission is to produce cost effective products with good quality to satisfy our customers worldwide. This is the target we aim at now and forever...
With 15 Years of Export Experience
Turnover reach 1.5 Million USD in first quarter of 2017
By manufacturing all kinds of micro motors for about 10 years, today iNEED (HK) Limited has four plants in mainland China.
Our first plant - iNEED Electrical (Zhejiang) Co. Ltd is located in Zhehu Road, Dajing Town, Yueqing City, Zhejiang Province. The location has a very convenient traffic environment: About 60mins drive to the Wenzhou International Airport, around 15mins drive to the Yandang High-speed Railway Station, and nearly 10mins drive to the National G15 Expressway. In this plant, we mainly make eight to 10mm diameter coin-type vibration motors and other mini DC motors, total of about 45 different models.
Our second plant - iNEED DC Motor (Shenzhen) Co. Ltd is located in Shancheng Industrial Park, Shiyan Town, Bao'an District, Shenzhen City, Guangdong Province. The location enjoys a 20mins drive to the Shenzhen International Airport, and five-minute drive to the National G15 Expressway. In this plant, we mainly make six to 20mm diameter precious metal-brush motors, six to 20mm diameter gear motors (including metal and plastic gear boxes), low cost carbon-brush motors, brushless motors, and other micro motors, total of about 80 different models.
Our third plant - iNEED Electronic (Chongqing) Co. Ltd is located in Economy and Technology Development Zone, Northern New Area, Chongqing City. In this plant, we mainly produce high-precision three to 4mm diameter SMD-type reflow solderable vibration motors, 4mm diameter coreless vibration motors with spring contacts or lead wires, and other precision metal parts, total of about 50 different models.
Our fourth plant - iNEED Micro Motor (Shenzhen) Co. Ltd is located in Nanyue United Industrial Park, Longang District, Shenzhen City, Guangdong Province. In this plant, we mainly produce four to 8mm diameter cylinder-type micro DC motors, six to 7mm diameter cylinder-type vibration motors and 10 to 12mm diameter big strong vibration motors, total of about 65 different models.
Our fifth plant- iNEED Micro Motor (Anhui) Co. Ltd is located in Jinwutong Creative Park, Jinzhai city, Anhui province. In this plant, we mainly produce 8-9mm coin type linear vibration motors, 5-9mm diameter coin type brushless vibration motors, PCB rotars, precision metal tools etc., totally about 30 different models.
Our sixth plant-iNEED Micro Motor(Huizhou) Co. Ltd is located in Tiger Industrial Park, Baigang, Huizhou city, Guangdong province. In this plant, we mainly produce 7-10mm coin type brushed vibration motors, coils, rotors, metal tools etc., totally about 45 different models.
