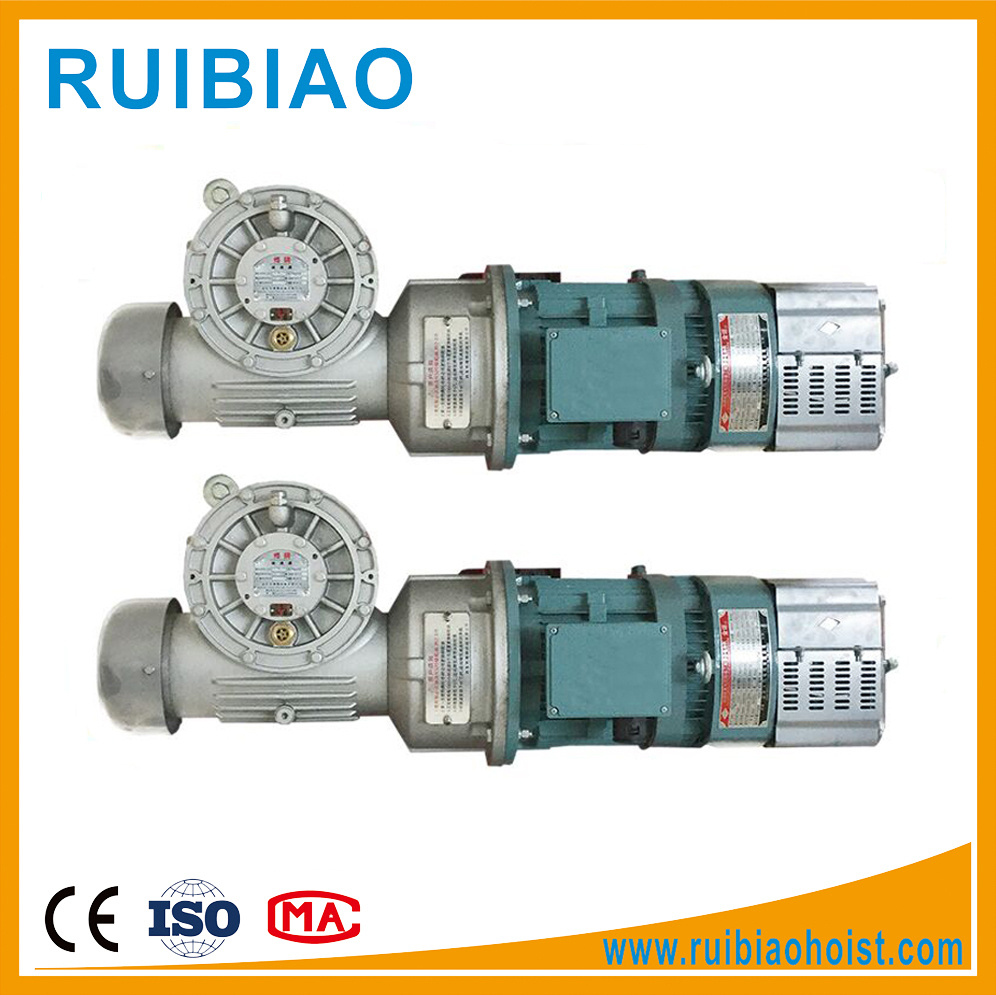

Electric Hoist Motor, Brake Hoisting Motor
| Model | electric motors for construction Hoist / building lift / material elevator |
| Power | 11kw/15kw |
| speed | 1400r/min |
| Brakemoment | 120Nm |
| D.Speed | 1403r/min |
| Frequency | 50Hz |
| Connection | Y |
| Brake Gap | 1.5mm |
| Voltage | 380V |
| Current | 24A a.c/1A.D.C |
| Lnsulation Class | F/F |
| Model | construction hoist gearbox |
| Ratio | 16: 1 |
| Rating | 11kw |
| Input | 1500r/min |
| Center distance | 125 |
A. Features
1.It is equipped with fully safety devices to guarantee the safe working;
2.Stable running and comfortable adaptability;
3.The transmission system adopts two-drive motors and three-drive motors. Planar double-eveloping worm gear reducer is adopted ensuring the high efficiency, max payload and long service life;
4.Simple electrical control system, easy operation and convenient maintenance withlow failure rate.
B.Tower Crane Hoist Motor is one part of construction hoist:
1. Production process: Strict material selection- blanking- inspection - welding- inspection- Blasting - inspection -Baking finished or galvanized- inspection - Finished Product;
2. The product can be customized according to customers'requirements (drawing, specifications and so on);
3. The cage is boarded up by all punched aluminum sheet ,Sidewall of Wire Mesh for cage is also avaliable. The size can be arranged to your requirement;
4. Main structure of cage is made of high-quality steel after bending.(The bended steel is firm, good verticality, stability. Moreover it ensure stable of the whole structure);
5. Electrical an Mechanical interlock: Door safety switches, Slack rope switch;
6. Upper and bottom limit swithes, trap door limit switch;
7. Overload protector;
8. Bottom Buffer;
9. Level Calling system and auto leveling device to be choose;
C.Features of the Y series 3 phase & 2 phase electric motor
1.Compact design and comfortable operating experience;
2.Single or double cage configurations;
3.Design without counterweight;
4.Use perforated aluminum plate as a decorative plate of the cage;
5.Galvanize Mast section offered;
6.Wide range of optional equipments and functions;
7.Competitive factory price;
8.Move by good quality rack and pinion;
9.Stable platform lift;
D.Our services
When your order shipping out .we will provide you a tracking no in express or B/L. then you can know clearly the status of the goods
Specifications
| Type | Cage | Capacity (kg) | Speed (m/min) | Motor (kw) |
| SC 200 | single | 2000 | 36 | 3*11 |
| SC 200/200TD | double | 2000*2 | 36 | 2*3*11 |
| SC 100 | single | 1000 | 36 | 2*11 |
| SC 100/100TD | double | 1000*2 | 36 | 2*2*11 |
| SC 150 | single | 1500 | 36 | 2*11 |
| SC 150/150TD | double | 1500*2 | 36 | 2*2*11 |
| SC 270 | single | 2700 | 36 | 3*15 |
| SC 270/270TD | double | 2700*2 | 36 | 2*3*15 |
| SC 320 | single | 3200 | 36 | 3*18*5 |
| SC 320/320TD | double | 3200*2 | 36 | 2*3*18.5 |
| VFD device optional, the speed:0-36 m/min,0-63 m/min,0-96 m/min |
| Can be customized according to customers' demand |
Electric Hoist Motor, Brake Hoisting Motor
Shanghai RuiBiao Construction Machinery Co., Ltd is the special maker of power precision transmission products of gear racks, slewing ring bearings, safety devices and gearboxes, Anemometer Wind Speed Meter, Overload Indicator and Sensor, Worm and Worm Wheel, Hoist Spare Parts for construction, engineering, lifters, lifting elevators, hoists, and machinery transmission. Our products are mainly exported to Malaysia, Italy, the USA, Spain, Greece, Turkey and Russia. We can satisfy our customers' needs well. We can produce products according to customers' special requirements.
We are making precision casting parts according to customer's technical requirements
We sincerely hope to cooperate with friends in the fields!
