Electric Melting Ice Wires for Drainpipe Antifreezing Cable
| Price: |
US $ 5/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal |

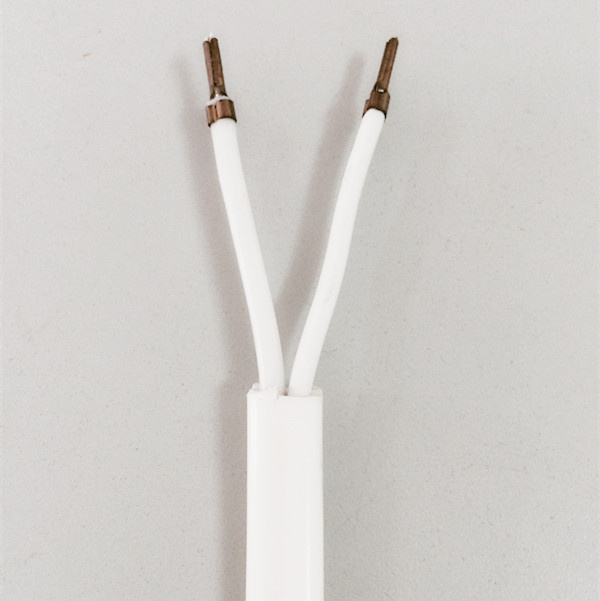

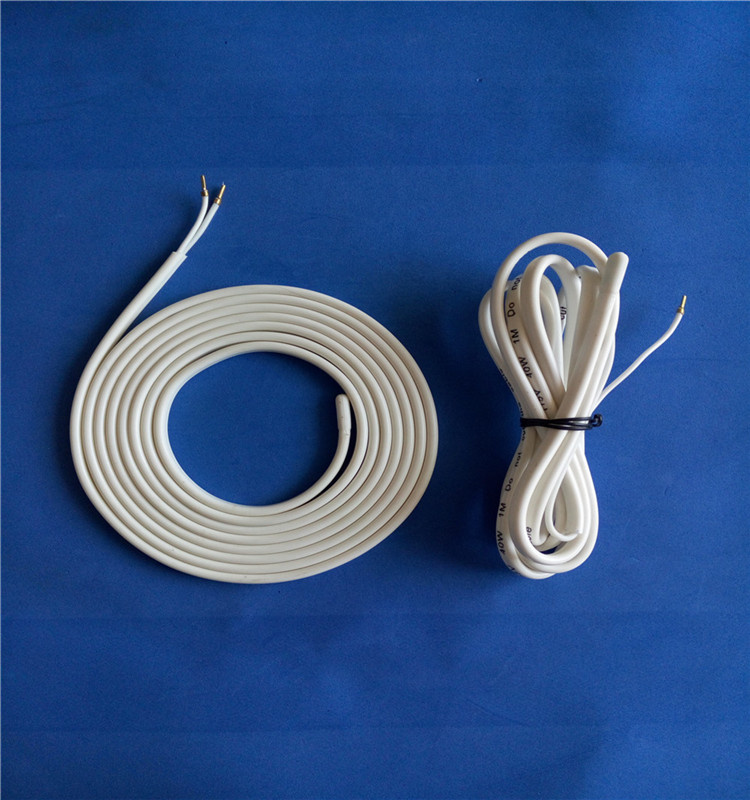

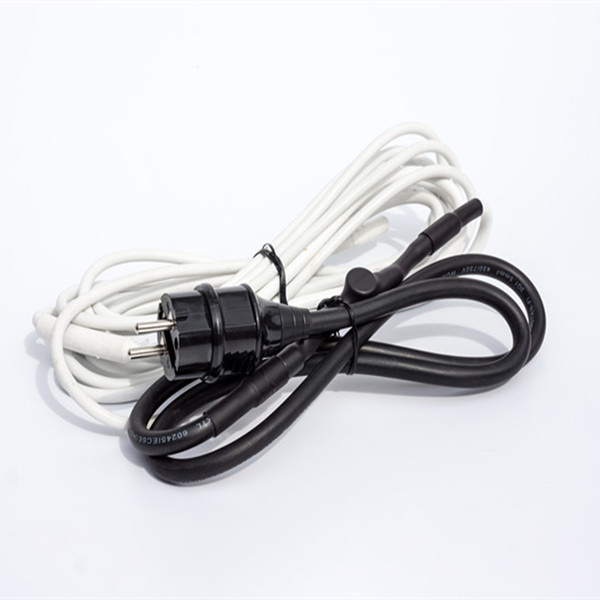

Electric melting ice wires for drainpipe antifreezing cable
ApplicationsIn cold storages,after a certain time of operation,there is build up of ice on the cooler fans and a defrosting cycle must take place.
Electrical resistances are inserted between the fans to melt the ice,and the water is collected and passed through drain pipes for disposal.Some waters if the drain pipes are inside the cold storage,so consequently the water may freeze again.To avoid this problem,a drainpipe antifreezing cable is inserted into the pipe.It is switched on only during the defrosting cycle. product details | keywords | drainpipe antifreezing cable |
| Heating element | Nickel alloy wire |
| Insulation | Silicone rubber |
| Shape | flat or round |
| End of cable | waterproof silicone moulding |
| Cold tail | 1m |
| Output power | 40 or 50W/m |
| Tolerance | 5% on resistance |
| Voltage | 230V |
| Surface temperature | -70~200ºC |
| model number | HZDG |
Specification
| No. | Name | Length | Voltage | Watts |
| 1 | Drain pipe antifreezing
cable | 1m | 230v | 40w |
| 2 | 2m | 230v | 80w |
| 3 | 3m | 230v | 120w |
| 4 | 4m | 230v | 160w |
| 5 | 5m | 230v | 200w |
| 6 | 6m | 230v | 240w |
Configuration: 1)totally waterproof
2)double insulation
3)moulded terminations
4)extremely flexible Features of the drainpipe antifreezing Cable:Low installation and maintenance cost.
Versatile to accommodate any layout configuration.
Durable construction.
Smart alternative to snow plowing and chemical snow melting.
Note:
The heating cable with 50W/m are most commonly used.
For plastic popes however we recommend the use of heaters with 40W/m.
Warning:
These cables can not be cut to reduce cold tail length. Packing : one in plastic bag +tewenty in carton or customized.
Shipping: FOB SHANGHAI / NINGBO /TOTHER PORTSCompany: We Jiangyin PAWO Electronics Co.,ltd has been established for more than twenty years. we specialized in the production of electronics heater. and we are responsible for our products and customers.We have specialized in the design and production of defrosting and temperature maintenance.We are the global market to provide heating element of high-quality,meet the various needs of different application fields.
Contact usJoeyss Si
Sales Manager
Jiangyin PaWo Electronics Co., Ltd.Add: No.98 Qingtong Road, Qingyang Town,
Jiangyin City, Jiangsu Province, China
homepage:http://www.heatingcablechina.com
Tel: 86-510-86102868
Fax: 86-510-86551425
Mobile phone:18651031070
| Prod Model: |
hzdg |
| Output Power: |
40W/M;50W/M |
| Watts: |
230V;Customized |
| Shape: |
Flat or Round |
| Min Surface Temperature: |
-70degree |
| Max Surface Temperature: |
200degree |
| Heating Element: |
Nickel Chromium or Copper-Nickel Alloy Wire |
| Cold Tail: |
1m |
| End Of Cable: |
Waterproof Silicone Moulding |
| Free Samples: |
Available |
| Customized/OEM: |
Available |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
Silicone Rubber |
| Certification: |
RoHS |
| Sheath Material: |
Silicone |
| Brand: |
Pawo |

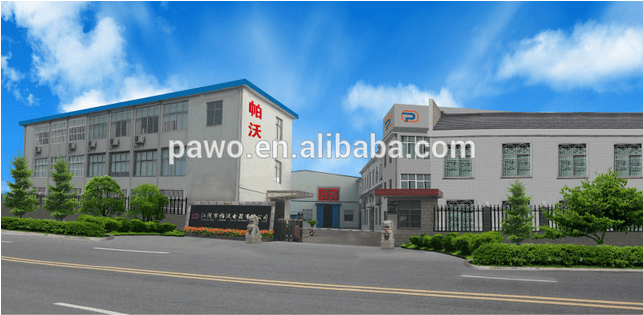

Jiangyin Pawo Electronics Co., Ltd. is specializing in supplying heating cable etc.
The supple electric heating element made by our company not only conforms to the strict quality requirement in the position of technology but also keeps a closed cooperative partner relationship with different departments and clients. Since the year of 1999, Pawo has got the ISO9001 certificate and also updates each nation's certificates and product qualification accreditations in every year.
Each day, our engineers and technicians will discuss and research to improve the quality of the product to confront the severe product needs. Our production facility, professional skill of the manufacturing process and the abundant marketing knowledge enable us to provide integrated products which meet to the specific needs of the customer.
Upholding the principle of quality first and user first and propagating the tenet of meticulosity and seeking perfect from perfect, we insist on ceaselessly pursuing consummations to realize a better aim. We will try our best to update and enrich the product range to satisfy your various needs. Through the wide internet agent, dealer and assemble trader, we will build Pawo into a world-class resource platform, a forever reliable defrosting and heat preservation system product in all areas and also an eternal hand-joining friend with the customers in all walks of life.
