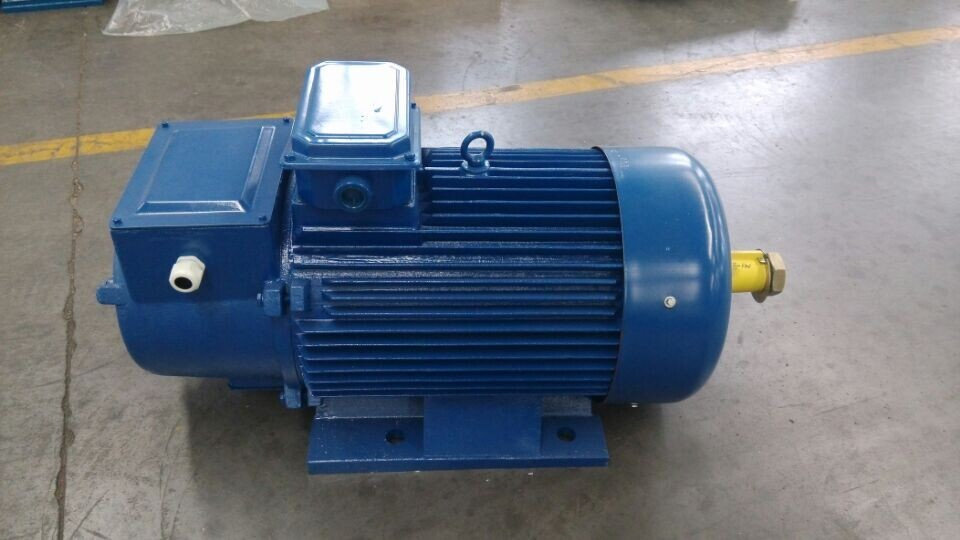

Electric Motor/ Hoisting Motor/ Crane Motor/ AC Motor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
1. YZR, YZ series is the up to date design electric motor with the characteristic of big overload capacity and high mechanical strength, which is specially adequate for driving all sorts of metallurgical machinery and hoisting machine or the other similar equipments. YZR series is wound rotor electrical motor and YZ series is cage type electrical motor.
2. The electrical motor can normal operate in the following environmental conditions.
(1. ) Cooling medium temperature is no more than 60C(electrical motor of metallurgy) or 40C( hoisting motor).
(2. ) The altitude is no more than 1, 000 meters
(3. ) Regular and obvious mechanical vibration and mechanical shock
3. The electrical motor can normally work in the following loading condition:
(1. ) Regular starting and back turn
(2. ) Regular electrical appliance braking and mechanical braking
4. Rated frequency: 50 Hz, rated voltage: 380V
5. Rejoining method: Stator winding uses Y rejoining method when the power is 132 kilowatt or lower 132 kilowatt. The others use delta rejoining method.
| Prod Model: |
Yzr, Yz Series Hoisting Motor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Stator: |
Three-Phase |
| Function: |
Control |
Jiangsu DaZhong Electric Motor Co., Ltd., by Shares(original State-run jingjiang General Electric Motor & Appliance Factory) was founded in 1958, Now it has 1, 850 staffworkers, among whom 258 persons are technicians, and covers an area of 305, 000 m² In which the building area is 85, 000 m² . Under it there is a scientific research institute run by itself, a testing centre, a materials-distributing company, a merchandises-transporting company, an auto repair shop, spetrol station, a hotel and catering department and other subordinate units, which integrate scientific research, industrial production and commercial enterprise into one body, And its comprehonsive strength is very powerful.
The leading products, including a complete series of TypeY, Y2, YB, YB2, YD, YDT, YZ, YZR, YEJ, YH, YG, etc. 3-phase asynchronous motors with Model No. S H80 which have 800 varieties and specifications altogether can be optionally chosen by the users, equipment, the first-class technological level, perfect test means, strict quality management system and the powerful strain and providing the electric motors, appliances and other new products mated for the customers' famous, special and high-quality markets in every part throughout China and sold far to Western Europe, Latin America, South-east Asia and other 30-odd countries and regions in the world, So the Company has been approved as an exporting base for motors by China Economic & Commercial Commission.
In recent years, the Company has attached great importance to the internal mangement, uninterruptedly reinforced the momentum of technical innovation and new product development overall to strengthen and improve the management standard, technical force, educational level of personnel, product quality, and varieties and specifications of the whole enterprise, It first passed the International Quality System Identification of GB/T19001-ISO9001-94 among the same trades in China in 1996, through the several years of effective performance, the quality of physical goods has reached the international advanced standards.
The products have successively passed CE Quality Identification of European Community, CSA Safety Attestation of Canada, the first batch of Safety attestation of Great Wall Symbol in China, at the same time they have been named as High-quality Sci-tech products by France, Trustworthy Products in Quality of Electric Appliance Trade in China, And the Company has been awarded the titiles of "Trustworthy Enterprise in Quality" by National Technical Supervision Bureau, "Recommended Enterprise in Key Province, one of "10 Fine Pacesetter Enterprises"by Taizhou City, and also evaluated as "Contract-abiding by and Trustworthy Enterprise"for ten years in succession.
