Electric Roller Shutter Tubular Motor
| Price: |
US $ 20-35/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Tubular motor is adopted international advanced technology for development and manufacture, operation safe, concise design and convenient installation. Tubular Motor is applied to doors and shutters of commerce, factory, automobile repairing store and mending room.
Tubular motor / Roller door motor SLM35 Advantages:
Non - malfunction for the brake
Double sided magnetism, cone magnetism, electromagnetism brake system is used in this new type motor in order to meet different customers'requirement. It takes our team many years' research and test for the material of brake system which makes it perfect.
Adopted the plastic sealed technology, all the components have the accurate location dimension, low coefficient of the variation, and the service life time can be amounted to 10 years. Advanced design and crafts, the highest torque
Strong intensity Adopted the special material, the gear is more wear-resisting, toughness and steel feature is more stronger which will increase the service life of the gear box.
Oil proof The sealed structure helped the gear oil hard to leak, ensure the gear works normally longer.
Accurate limit The accuracy for limit is <+-0.5 degree tolerance, limit configuration by screw pole drive makes accuracy for limit <+- 1.5 degree
Large effective limit Reasonable and compact design increases effective distance for limit very much, and the effectiveness could reach 50 circles.
Build-in remote control Good quality and stable receiver built in motor not only shorten the installation time, Effective distance for remote control system is more than 30m.
Specification:
Voltage: 220/230V
Frequency: 50/60Hz
Power: 135W
Nominal torque: 3 to 10Nm
Nominal speed: 17rpm
Have high techniques, stable and reliable performance

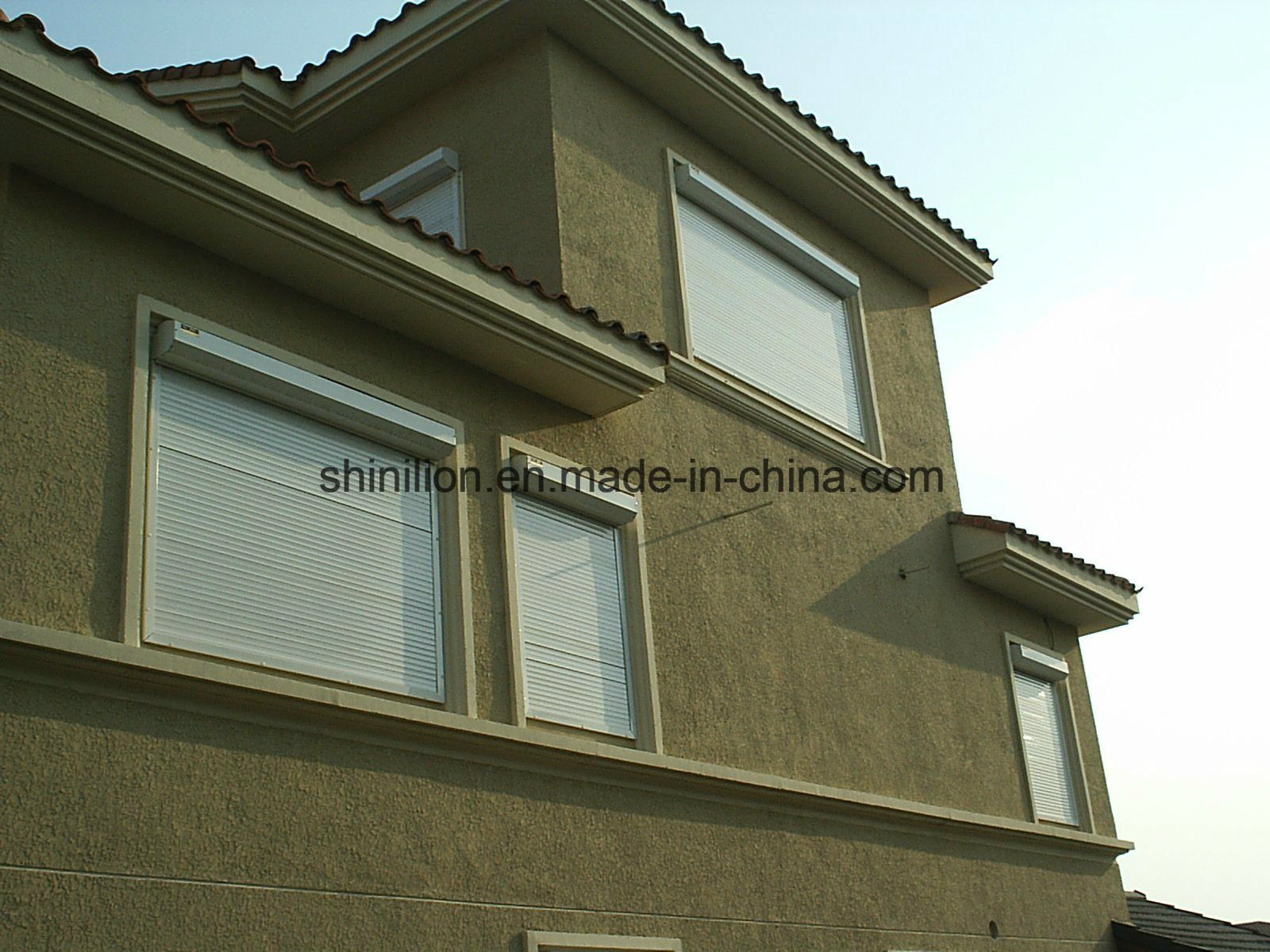

Widely used for small curtain, screen, awning and aluminum roller shutter
Load requirement: Less than 25kgModel SLM35
| 3
| 6
| 8
| 10
|
Voltage
| 220/230V 110/120V
50/60HZ
|
Power ( w)
| 101/108
| 113/120
| 115/120
| 115/120
|
Current (A)
| ≤05./1.1
| ≤05./1.1
| ≤05./1.1
| ≤05./1.1
|
Nominal speed (rpm)
| 28/32
| 28/32
| 28/32
| 28/32
|
Nominal torque ( Nm )
| 3Nm
| 6Nm
| 8 Nm
| 10Nm
|
Work time (min )
| 4
| 4
| 4
| 4
|
Insulation level (class)
| B
| B
| B
| B
|
Protection
| IP44
| IP44
| IP44
| IP44
|
Tube Diameter
| 35mm
| 35mm
| 35mm
| 35mm
|
Overall size (mm)
| 584
| 584
| 584
| 584
|
Weight (kg)
| 1.3
| 1.3
| 1.3
| 1.3
|
| Torque: |
3-10nm |
| Diameter: |
35mm |
| Feature: |
Quiet Working |
| Number Of Stator: |
Single-Phase |
| Function: |
Driving |
| Application: |
Rolller Shutter |
| Certification: |
Ce, TUV, RoHS |
| Brand: |
Shinilion |
No. 1 Professional roller shutters and tubular motors manufacturer in China!
No. 1 Professional roller shutters, rolling doors and tubular motors factory in China!
Ten Years experience in roller shutters and tubular motors!

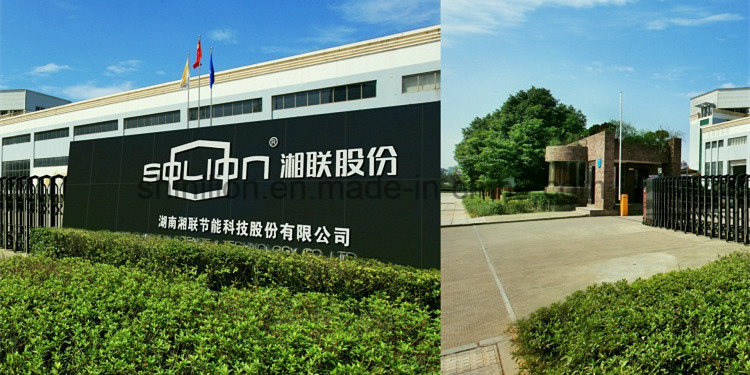

Established in 2001, Hunan Shinilion Science & Technology Co., Ltd. is a private enterprise specializes in aluminium roller shutters and rolling doors.
As an all-around enterprise with the import & export right in China, we professionally produce and sell the following products:
1) Aluminium roller shutters, roller doors
2) Roller shutters and roller doors aluminum profiles (extrusion)
3) Tubular motors & other door operators
4) Sectional garage door & other automatic doors
5) Awnings (sunshades)
6) Construction hardware (locks, hinges, handles etc. )
7) Remote contorl for roller shutter door and window, awnings.

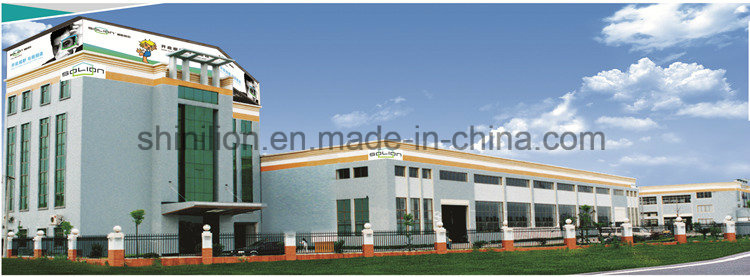

Covering an area of more than 50, 000 square meters, we now have about 500 employees. We have passed the the test of ISO9001: 2008 qualification certification and ISO14001: 2004 management certification, and our motors are CE, TUV, CB, RoHS, CCC approved.
With market as leading directions, high quality products, fine processing, perfect technology supporting and excellent service, we are making great effort to improve city building levels and create wonderful life together with our vast users.
If you are interested in any of our products, please feel free to contact us for more details. We hope to establish business relationships with both domestic and overseas clients in the near future. We are looking forward to receiving your inquiries.
