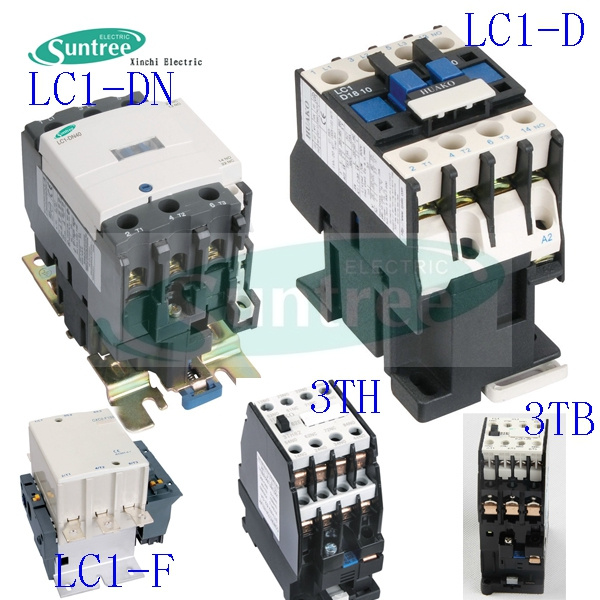

Electrical Contactor Magnetic Contactor AC Contactor LC1-D LC1-Dn LC1-F 3TB 3TF
Price: |
US $ 2.5/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
electrical contactor magnetic contactor ac contactor LC1-D LC1-DN LC1-F 3TB 3TF
LC1-D AC contactor
Application
1)LC1-D series AC Contactor
is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz,
rated current up to 95A, for making, breaking, frequently starting & controllingthe AC motor.
2)Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter.
3)The product conforms to IEC60947-4-1 CE stardand.
Standard Control Circuit VoltageVolts | 24 | 42 | 48 | 110 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | 600 |
50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
60Hz | B6 | D6 | E6 | F6 | M6 | - | U6 | Q6 | - | - | R6 | - | - |
50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | - | - |
LC1-D AC contactor Technical Data
Type | LC1-D09 | LC1-D12 | LC1-D18 | LC1-D25 | LC1-D32 | LC1-D40 | LC1-D50 | LC1-D65 | LC1-D80 | LC1-D95 |
Rated working current (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 |
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3 | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 |
500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 |
660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 |
Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 |
Electrical life | AC3 (x104) | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
AC4 (x104) | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 |
Mechanical life (x104) | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 |
Number of the contacts | 3P+NO | 3P+NC+NO |
3P+NC |
LC1-D AC contactor Dimensioned
Type | A | B | C | D | E | a | b | |
LC1-D09~12 | 47 | 76 | 82 | 113 | 133 | 34/35 | 50/60 | 4.5 |
LC1-D18 | 47 | 76 | 87 | 118 | 138 | 34/35 | 50/60 | 4.5 |
LC1-D25 | 57 | 86 | 95 | 126 | 146 | 40 | 48 | 4.5 |
LC1-D32 | 57 | 86 | 100 | 131 | 151 | 40 | 48 | 4.5 |
LC1-D40~65 | 77 | 129 | 116 | 145 | 165 | 40 | 100/110 | 6.5 |
LC1-D80~95 | 87 | 129 | 127 | 175 | 195 | 40 | 100/110 | 6.5 |
LC1-D AC contactor
Application
1)LC1-DN series AC contactor is suitable for frequency 50/60Hz, rated insulation voltage up to1000V,
rated operation current 9~150A under AC-3 duty. It is mainly used for making/breaking electric circuits at a long distance & for frequent
starting/stopping & controlling AC Motors.
2)It isused in combination with thermal relay to compose a magnetic motor starter.
3)The products com-ply with IEC60947-4-1 standard.
Standard Control Circuit VoltageVolts | 24 | 42 | 48 | 110 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | 600 |
50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
60Hz | B6 | D6 | E6 | F6 | M6 | - | U6 | Q6 | - | - | R6 | - | - |
50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | - | - |
LC1-DN AC contactor Technical Data
Type | LC1-DN09 | LC1-DN12 | LC1-DN18 | LC1-DN25 | LC1-DN32 | LC1-DN38 | LC1-DN40 |
Rated working current Ie (A) AC-3 Ue≤440V | 9 | 12 | 18 | 25 | 32 | 38 | 40 |
Rated hear current Ith (A) | 25 | 25 | 32 | 40 | 50 | 50 | 60 |
Rated insulation voltage Ui (V) | 690 | 690 | 690 | 690 | 690 | 690 | 1000 |
Rated operating voltage Ue (V) Max | 690 | 690 | 690 | 690 | 690 | 690 | 1000 |
Rated operational power in AC-3 Pe (KW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 9 | 11 |
380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 |
415/440V | 4 | 5.5 | 9 | 11 | 15 | 18.5 | 22 |
500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 18.5 | 22 |
660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 18.5 | 30 |
Rated operational power in AC-4 Pe (KW) | 220/230V | 1.5 | 1.5 | 2.2 | 3 | 4 | 4 | 4 |
380/400V | 2.2 | 3.7 | 4 | 5.5 | 7.5 | 7.5 | 9 |
415/440V | 2.2 | 3 | 3.7 | 5.5 | 7.5 | 7.5 | 9/11 |
500V | 3 | 4 | 5.5 | 7.5 | 9 | 9 | 11 |
660/690V | 4 | 5.5 | 7.5 | 10 | 11 | 11 | 15 |
Frequency of operation (I/h) | | 1200 | 1200 | 1200 | 1200 | 1000 | 1000 | 1000 |
Electrical endurance (x104) | AC-3 | 100 | 100 | 100 | 100 | 80 | 80 | 80 |
AC-4 | 20 | 20 | 20 | 20 | 20 | 20 | 15 |
Mechanical endurance (x106) | | 15 | 15 | 15 | 15 | 15 | 15 | 6 |
Operating voltage range of coil | Close voltage:(0.85~1.1)Us Open voltage:(20%~75%)Us |
Power consumption of coil (VA) | Atracting | 7 | 7 | 7 | 7 | 7 | 7 | 20 |
Starting | 70 | 70 | 70 | 70 | 70 | 70 | 200 |
Rated insulation voltage of auxitiary contacts (V) | 690 | 690 | 690 | 690 | 690 | 690 | 690 | 690 |
Conventional thermal current of auxitiary contacts (A) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Auxitiary contacts speecification | AC-15:360VA DC-13:33W |
Type | LC1-DN50 | LC1-DN65 | LC1-DN80 | LC1-DN95 | LC1-DN115 | LC1-DN150 |
Rated working current Ie (A) AC-3 Ue≤440V | 50 | 65 | 80 | 95 | 115 | 150 |
Rated hear current Ith (A) | 80 | 80 | 125 | 125 | 200 | 200 |
Rated insulation voltage Ui (V) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Rated operating voltage Ue (V) Max | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Rated operational power in AC-3 Pe (KW) | 220/230V | 15 | 18.5 | 22 | 25 | 30 | 40 |
380/400V | 22 | 30 | 37 | 45 | 55 | 75 |
415/440V | 25/30 | 37 | 45 | 45 | 59 | 80 |
500V | 30 | 37 | 55 | 55 | 75 | 90 |
660/690V | 33 | 37 | 45 | 45 | 80 | 100 |
Rated operational power in AC-4 Pe (KW) | 220/230V | 5.5 | 7.5 | 7.5 | 9 | 9 | 11 |
380/400V | 11 | 11 | 15 | 15 | 18.5 | 22 |
415/440V | 11 | 11/15 | 15 | 15 | 18.5 | 22 |
500V | 15 | 18.5 | 22 | 22 | 30 | 37 |
660/690V | 18.5 | 22 | 25 | 25 | 30 | 45 |
Frequency of operation (I/h) | | 1000 | 1000 | 750 | 750 | 750 | 750 |
Electrical endurance (x104) | AC-3 | 60 | 60 | 60 | 60 | 60 | 60 |
AC-4 | 15 | 15 | 15 | 15 | 15 | 15 |
Mechanical endurance (x106) | | 6 | 6 | 4 | 4 | 4 | 4 |
Operating voltage range of coil | Close voltage:(0.85~1.1)Us Open voltage:(20%~75%)Us |
Power consumption of coil (VA) | Atracting | 20 | 20 | 20 | 20 | 22 | 22 |
Starting | 200 | 200 | 200 | 200 | 300 | 300 |
Rated insulation voltage of auxitiary contacts (V) | 690 | 690 | 690 | 690 | 690 | 690 | 690 |
Conventional thermal current of auxitiary contacts (A) | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Auxitiary contacts speecification | AC-15:360VA DC-13:33W |
LC1-DN AC contactor Dimensioned
Type | 09 | 12 | 18 | 25 | 32 | 38 | 40 | 50 | 65 | 80 | 95 | 115 | 150 |
b | 76.6 | 76.6 | 76.6 | 76.6 | 76.6 | 76.6 | 127 | 127 | 127 | 127 | 127 | 158 | 158 |
c | 87 | 87 | 87 | 94 | 94 | 94 | 116 | 116 | 116 | 123.8 | 123.8 | 132 | 132 |
LC1-F AC contactor
Application
LC1-F series
AC contactor is applicable in the circuits up to the rated voltage 1000V AC 50Hz or 60Hz,rated
curent 780A, for long distance breaking circuit and frequently starting or control the motor.
It also can be used for the control of distribution circuits of rated current from 200A TO 1600A. LC1-F AC contactor Technical Data
Type | LC1-F115 | LC1-F150 | LC1-F185 | LC1-F225 | LC1-F265 | LC1-F330 | LC1-F400 | LC1-F500 | LC1-F630 |
Rated operation current (A) | AC-3 | 115 | 150 | 185 | 225 | 265 | 330 | 400 | 500 | 630 |
Standard power ratings of 3-phase motors AC-3(KW) | 220V | 30 | 40 | 55 | 63 | 75 | 100 | 110 | 147 | 200 |
380V | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 250 | 335 |
415V | 59 | 80 | 100 | 110 | 140 | 180 | 200 | 280 | 375 |
440V | 59 | 80 | 100 | 110 | 140 | 200 | 250 | 295 | 400 |
500V | 75 | 90 | 110 | 129 | 160 | 200 | 257 | 335 | 400 |
660V | 80 | 100 | 110 | 129 | 160 | 200 | 280 | 335 | 450 |
1000V | 65 | 65 | 100 | 100 | 147 | 160 | 185 | 335 | 450 |
3TB AC contactor
Application
The contactor is suitable for using in the circuit up to the rated voltage 660V AC 50Hz or 60Hz,
rated current 630A, for making and breaking, and for frequent starting and controlling the motor.
After combined with the mechanical interlocking device, it becomes 3TD Series convertible contactor
for Controlling, starting, breaking and Reversing of the motor.
The products comply with IEC947 & VDE0660.3TB AC contactor Technical Data
Type | 3TB-40 | 3TB-41 | 3TB-42 | 3TB-43 | 3TB-44 |
Rated insulation voltage | 660 | 660 | 660 | 660 | 660 |
Rated operational current(380V) | AC-3 | 9 | 12 | 16 | 22 | 32 |
AC-4 | 3.3 | 4.3 | 7.7 | 8.5 | 15.6 |
Rated outputs of three-phase motors at 50Hz | AC-3 | 230/220V | 2.4 | 3.3 | 4 | 6.1 | 8.5 |
400/380V | 4 | 5. 5 | 7.5 | 11 | 15 |
500V | 5.5 | 7 .5 | 10 | 11 | 21 |
690/660V | 5.5 | 7.5 | 11 | 11 | 23 |
1000V | - | - | - | - | - |
AC-4 | 400/380V | 1.4 | 1.9 | 3.5 | 4 | 7.5 |
690/660V | 2.4 | 3.3 | 6 | 6.6 | 13 |
(×106)Mechanical endurance | 10 | 10 | 10 | 10 | 10 |
Switchina frequency | AC-3 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
AC-4 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
(×106)Mechanical endurance | AC-3 | 1000 | 1000 | 750 | 750 | 750 |
AC-4 | 250 | 250 | 250 | 250 | 250 |
Coil voltage lolerance | (0.8~1.1)Us |
Power consumption of coil (50Hz) | Closed | 10 | 10 | 10 | 10 | 10 |
Cos | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
Closing | 68 | 68 | 68 | 68 | 68 |
Cos | 0.82 | 0.82 | 0.82 | 0.82 | 0.82 |
Convention althermal current | 20 | 20 | 30 | 30 | 45 |
Conventional thermal current of auxiliary contacts | 10 | 10 | 10 | 10 | 10 |
Rated operational current of auxiliary contacts | AC-15 380/220V | 6/10 | 6/10 | 6/10 | 6/10 | 4/6 |
Weight | 0.43 | 0.43 | 0.49 | 0.49 | 0.7 |
The number of AC coil voltage | Coil for 50Hz AC | Coil for 50Hz/60Hz AC |
24 | BO | 24 | C1 |
42 | DO | 42 | D1 |
110 | FO | 110 | G1 |
220 | MO | 220 | P1 |
240 | UO | 240 | R1 |
380 | QO | - | - |
3TH AC contactor
The auxiliary contactors is the auxiliary suited by controlled circuit with voltage is AC 50/60Hz,660V
and DC 660V.They control all kinds of magnetic coil and amplify or transfer signal to relative
controlled element simultaneously. They are characterized by high performance & long service life.3TH AC contactor Technical Data
Rated Voltage | Rated operational current(A) | Controllable motor power AC3(KW) |
le=AC11, AC14 | DC11 |
110V | - | 0.9 | - |
220V | 10 | 0.45 | 2.2 |
380V | 6 | - | 4 |
440V | - | 0.25 | 4 |
660V | 2 | - | 4 |
mType | Type of contact |
NO | NC |
3TH30 | 4 | 1 |
31-OA | 3 | 2 |
22-OA | 2 | 3 |
13-OA | 1 | 4 |
04-OA | - | - |
3TH40/3TH80 40-OA | 4 | 1 |
31-OA | 3 | 2 |
22-OA | 2 | 3 |
13-OA | 1 | 4 |
04-OA | - | - |
3TH42/3TH82 80-OA | 8 | - |
71-OA | 7 | 1 |
62-OA | 5 | 2 |
53-OA | 5 | 4 |
44-OA | 4 | - |
3TF AC contactor
1)3TF Series AC Contactors are latest products in 1990's.The series products are suitable for
frequency of 50/60Hz,rated insulation voltage up to 690-1000V,rated opreational current up to 9A-400Aat raetd operational voltage up to 380V under the utilization category AC-3.
2)3TF Sersies AC Contactors are mainly used for making breaking electric circuits at a ling distance
and for frequent starting stopping and reversing control of AC motors
3)They comply with IEC947,VDE0660, MGB14048. 3TF AC contactor Technical Data
Type | Rated thermal current(A) | Rated operation current(A) | Controllable power of motor(KW) | Type of auxliliary contact |
AC-3 | AC-4 |
380V | 660V | 380V | 660V | 380V | 660V |
3TF30 | 20 | 9 | 7 | 4 | 5.5 | 1.4 | 2.4 | NO NC 1NO+1NC 2NO+2NC |
3TF31 | 20 | 12 | 7.5 | 5.5 | 7.5 | 1.9 | 3.3 |
3TF32 | 30 | 16 | 12.5 | 7.5 | 11 | 3.5 | 6 |
3TF33 | 30 | 22 | 16.5 | 10 | 15 | 4 | 6.6 |
3TF34 | 55 | 32 | 24 | 15 | 22 | 7.5 | 13 |
3TF35 | 55 | 38 | 24 | 18.5 | 22 | 9 | 15.5 |
3TF40 | 20 | 9 | 7 | 4 | 5.5 | 1.4 | 2.4 |
3TF41 | 20 | 12 | 7.5 | 5.5 | 7.5 | 1.9 | 3.3 |
3TF42 | 30 | 16 | 12.5 | 7.5 | 11 | 3.5 | 6 |
3TF43 | 30 | 22 | 16.5 | 10 | 15 | 4 | 6.6 |
3TF44 | 55 | 32 | 24 | 15 | 22 | 7.5 | 13 |
3TF45 | 55 | 38 | 24 | 18.5 | 22 | 9 | 15.5 |
3TF46 | 80 | 45 | 40 | 22 | 37 | 12 | 20.8 | 2NC+2NO 4NC+4NO |
3TF47 | 80 | 63 | 60 | 30 | 55 | 14 | 24.3 |
3TF48 | 100 | 75 | 60 | 37 | 55 | 17 | 29.5 |
3TF49 | 100 | 85 | 80 | 45 | 75 | 21 | 36 |
3TF50 | 160 | 110 | 95 | 55 | 90 | 27 | 46.9 |
3TF51 | 160 | 140 | 120 | 75 | 110 | 35 | 60 |
3TF52 | 200 | 170 | 160 | 90 | 150 | 38 | 66 |
3TF53 | 210 | 205 | 165 | 110 | 160 | 50 | 86 |
3TF54 | 300 | 250 | 230 | 132 | 220 | 58 | 100 |
3TF55 | 300 | 300 | 260 | 160 | 250 | 66 | 114 |
3TF56 | 400 | 400 | 380 | 200 | 355 | 81 | 140 |
3TF68 | 630 | 630 | 600 | 335 | 560 | 160 | 278 |
Household AC Contactor
Application
1)The product is mainly applicable to a power system of AC 50Hz (or 60Hz), rated working voltage up
to 230V, and in a line of application class AC-7a with rated working voltage up to 230V and rated working current up to 20A.
It is used to remotely close or/and switch off the line.
The product is widely used in dwelling houses, hotels and so on.
2)The product is in conformity with the standards: GB 17885 IEC 1095.
Normal operation and mounting requirement
1)Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
2)Altitude above sea level less than 2000 m.
3)Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
4)Installation class II
5)Pollution class 2.
6)Installation method DIN Rail mounting type.
7)Product shall be vertically mounted onto standard Din rail 35mm.
Household AC Contactor Technical Data
RatingsUtilization category | Ui (V) | Ui (V~) | Conventional heating current (A) | Ie (A) | Controlled power (kW) |
AC-1, AC-7a AC-7b | 500 | 230 | 63 | 63/25 | 13/3.8 |
AC-1, AC-7a AC-7b | 500 | 230 | 40 | 40/15 | 8.4/2.4 |
AC-1, AC-7a AC-7b | 500 | 230 | 32 | 32/12 | 6.5/1.9 |
AC-1, AC-7a AC-7b | 500 | 230 | 25 | 25/8.5 | 5.4/1.9 |
AC-1, AC-7a AC-7b | 500 | 230 | 20 | 20/7 | 4/1.2 |
Making and breaking capacityUtilization category | Making and breaking conditions | Electrification time (s) | Interval time (s) | Operating cycle times |
Ic/Ie | Ur/Ue | COS |
AC-1, AC-7a | 1.5 | 1.05 | 0.8 | 0.05 | 10 | 50 |
AC-7b | 8 | 1.05 | 0.45 | 0.05 | 10 | 50 |
Conventional operating performancesUtilization category | Making conditions | Breaking conditions | Electrification time (s) | Interval time (s) | Operating frequency |
Ic/Ie | Ur/Ue | COS | Ic/Ie | Ur/Ue | COS |
AC-1 | 1.0 | 1.05 | 0.8 | 1.0 | 1.05 | 0.8 | 0.05 | 10 | 6000 |
AC-7a | 1.0 | 1.05 | 0.8 | 1.0 | 1.05 | 0.8 | 0.05 | 10 | 30000 |
AC-7b | 6.0 | 1.0 | 0.45 | 1.0 | 0.17 | 0.45 | 0.05 | 10 | 30000 |
(16A~25A) 1P, 2P Household AC Contactor Dimensioned
Prod Model: |
LC1-D LC1-DN LC1-F 3TB 3TF |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No: |
LC1-D LC1-Dn |
Function: |
AC Conactor |
Certification: |
CE CCC |
Operation: |
Manual Type |
Rated Current(a): |
AC4 |
Volt: |
24V-660V |
Hz: |
50/60Hz |
Number Of The Contacts: |
3p+No 3p+Nc |
Circumstance Temperature: |
-5°c~40°c |
Brand: |
Suntree/OEM |
Xinchi Electric Co., Ltd. is the best one, which stands out above the rest in China intelligent low voltage electrical field, meanwhile it is a grouping company in the "city of electrical".There are four branch companies subordinate to it:Yueqing Xinchi Electric Sci-Tech Co., Ltd, Yueqing Imp&Exp Co., Ltd, HK Yangming Electrical Technology Co., Ltd and Wenzhou Litto smart Co., Ltd.Moreover.There are 320 workers, the annual output value breakthrough one hundred million, and the export value arrive at ten million.
We always pay attention to manufacture and sell automatic industrial and control system, modular intelligent electrical equipments, such as circuit breakers, residual circuit breakers, contactors, isolators, solid state relay, control and protect switch, automatic transfer switch, electrical fire detecting system, surger protect device, multifunctional meter and new energy system fittings etc.
Especially DC circuit breaker, DC isolating switch, DC fuse, busbar chamber, waterproof switch and other products with leading technical level in this field...We are the first domestic company with CE, CB, IEC, Nemko, SAA, TUV, ISI and CCC certification.Our products are widely used by domestic famous enterprises, and it has become a OEM partner of many international famous brands.
We have fully implement the IS09001:2008 quality management system.It adopts advanced production equipment and precision detecting equipment, introduces high-tech process and high technology talents to provides powerful guarantee for product development, quality upgrading and management innovation of the company.
In order to seek after the excellence, Xinchi will continue to carry on the spirit of "practice, honesty, innovation, active", insist on the policy of " technology promotes industry, Brand promotes industrial", and we believe in "Technology innovation, famous in the world", working hard to let"XINCHI electric brand"walk towards to the world.
