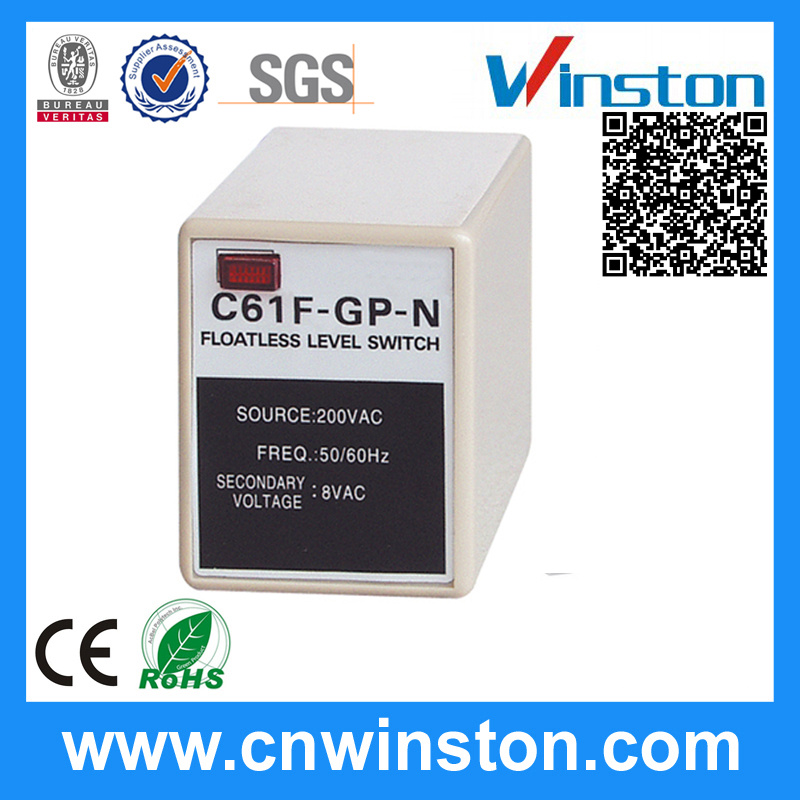

Electrical Digital Multi-Function Liquid Level Control Floatless Relay with CE
| Price: |
US $ 7.5-10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Specifications
Dimensions(mm)50Hx40Wx70D Socket type:PF113A(E) AC: 110V, 220V, 240 50/60Hz LED indicator Floatless level switch
| lassification | Floatless Level Switch Relay |
| Specification Model | 61F-GP-N |
| Dimension (mm) | 50H × 40W × 70D |
| Socket Type | PF113A(E) |
| Sensing Mode | General | - |
| High Sensing | - |
| Long Distance | - |
| Low Density | - |
| Two Lines | 61F-GP-N |
| Rated Voltage | AC: 110V, 220V, 240 50/60Hz |
| Indicator Operating | Two LED's use for two status |
| Operate Voltage | 85~110% of rated voltage |
| Second Voltage | 8VAC (except high sensing 24VAC) |
| Operate Resistance | 4K ohm min.(GENERAL) |
| Release Resistance | 15K ohm min.(GENERAL) |
| Response Time | Operate: 80msec max, Release: 160 msec max. |
| Contact Rating | 5A, 250VAC(RESISTIVE LOAD) |
| Length of Cable | 1Km max.(GENERAL) |
| Life | Mechanical | 5 × 106 times min |
| Electrical | 105 times min |
| Insulation Resistance | 100Mohm (DC 500V)min |
| Dielectric Strength | 1500VAC, 50/60Hz, for 1 minute |
| Consumed Power | 3.2VA |
| Ambient Temperature | -10oC~+55oC |
| Ambient Humidity | 45~85%RH |
| Weight | 150g |
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time. Our Services | 1. Prompt reply: Any inquiry or questions would be replied within 24 hours. |
| 2. Quality Product: Manufacture company, each of the products is tested and calibrated. |
| 3. Hospitality: Offer smiling service and your visiting is highly welcomed |
| 4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty. |
Trade Information | Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
| Prod Model: |
61F-GP-N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Brand: |
Winston |
| Antistop: |
Switch Relay |
| Consumde Power: |
3.2va |
| Ambient Humidity: |
45~85%Rh |
| Dimensions(mm): |
50h *40W * 70d |
| Weight: |
150g |
| Socket Type: |
PF113A(E) |
| OEM/ODM: |
Yes |
| Condition: |
Original New |
