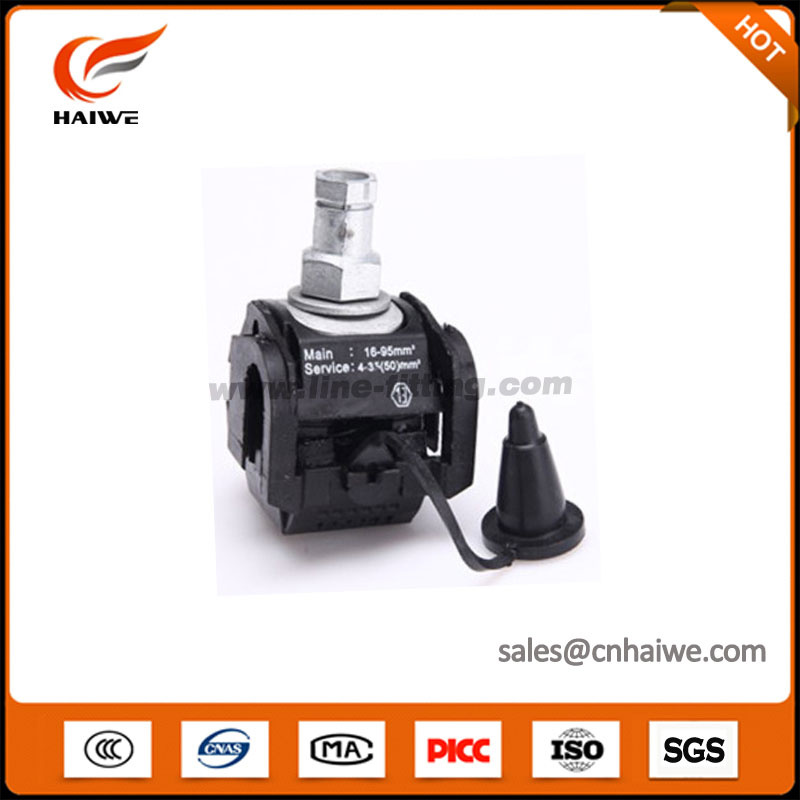

Electrical Low Voltage Cable Insulated Tap Clamp Insulation Piercing Connector
Price: |
US $ 0.5-10/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal |
Electrical low voltage cable insulated tap clamp insulation piercing connectorProduct Description
Insulation piercing connector is mainly suitable for the connection of the overhead insulation conductor, branch connection and grounding protection, It is used for the voltage which is 20KV, 10KV and 1KV and below. Applicable for Al-Cu conductor, different diameter wire connection, and equal diameter wire butt, and is suitable for the transition of copper aluminum insulation conductor link.
Main function and features:
1.Easy installation,No need to strip the cable insulation cover,
2.Piercing connector,special nut and torque nut.To ensure good electrical connection without damage wires.
3. Resistance reduced by 30% Heat cycle curve is more stable.
4.Good Insulation,It passed the power frequency withstand voltage and underwater withstand voltage performance test without any special treatment.Sealing structure and with insulation grease.wetpoof,waterproof,anti-corrosion,extend the service life of insulated conductor and clamp. Model | Suitable wire(mm²) |
Main Line | Branch Line |
JJC10-55(300~300) | 240~300 | 240~300 |
JJC10-44(240~240) | 150~240 | 150~240 |
JJC10-43(240~150) | 150~240 | 95~150 |
JJC10-42(240~95) | 150~240 | 50~95 |
JJC10-41(240~50) | 150~240 | 25~50 |
JJC10-33(150~150) | 95~150 | 95~150 |
JJC10-32(150~95) | 95~150 | 50~95 |
JJC10-31(150~50) | 95~150 | 25~50 |
JJC10-22(95~95) | 50~95 | 50~95 |
JJC10-21(95~50) | 50~95 | 16~50 |
JJC10-11(50~50) | 16~50 | 16~50 |
JJC10-240~300 | 240~300 | Grounding Connector |
JJC10-95~240 | 95~240 | Grounding Connector |
JJC10-35~120 | 35~120 | Grounding Connector |
JJC10-16~95 | 16~95 | Grounding Connector |
FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.
2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
3. What is the delivery time?
A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.
4. Package information
A:For inner box and master carton are made as per international standards,and we can make special designed for you if need.And if necessary,will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box,about 1000kg per pallet
5.How long to make a sample?Is it free?
A:7 days depending on the sample's complexity.Normally,our sample is free
6.How to contact us?
A:Send your inquiry details in the below,Click "send" now!
Our Services
Service
1.Thousands of products in stock and ready to ship.
2.The most competitive pricing
3.Free shipment container loading
4.Putting the customer's needs first,always
5.On call,24 hours a day,7 days a wee
Prod Model: |
JJC |
Rated Voltage: |
20kv,10kv,1kv or Below |
Connecting Blades: |
Tinned Copper or Aluminum or Brass |
Type: |
Electric Tap Connectors, Piercing Connector |
Bolt: |
H.D.G Steel |
Sample: |
Free |
OEM: |
Accept |
Material: |
Aluminium / Copper / Al and Cu Bimetal |
Gender: |
Insulation Piercing Connector |
Application: |
Power, Wire Connector |
