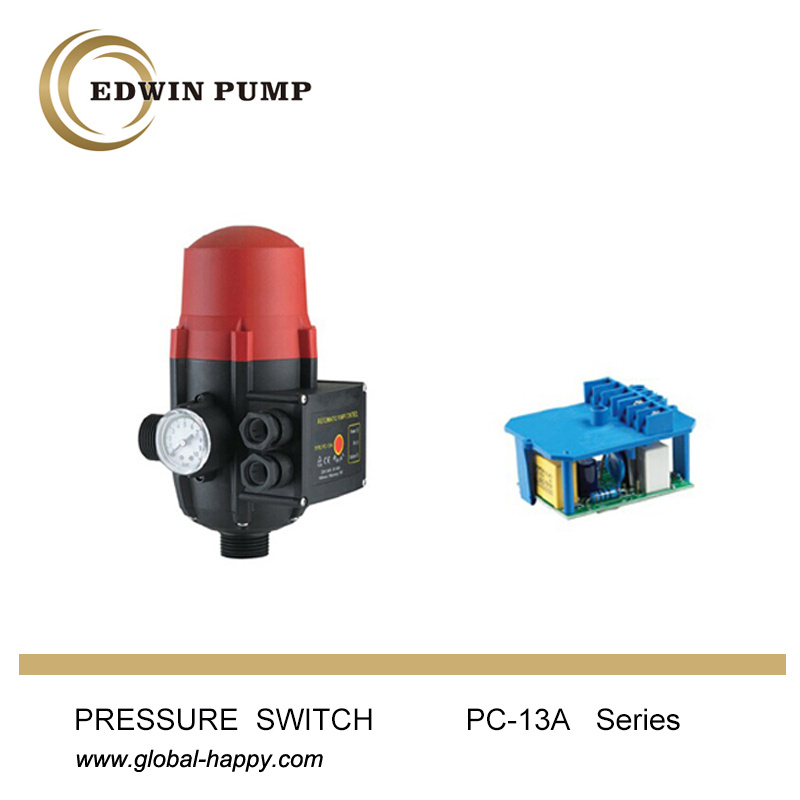

Electrical Pressure Switch PC-13A

TECHNICAL DATA
1, Starting Pressure: 1.5bar/2.2bar (PC-13 & PC-13B)
                 1.5-3.0bar (PC-13A)
2, Max Rated Current: 10A
3, Max Allowable Pressure: 10bar
4, Rated Voltage: 100V-120V or 220V-240V
5, Frequency: 50/60Hz
6, Max. Ambient Temperature: 60degree
7, Protection Degree: IP65

DESCRIPTIONS
1, Electric switch used in water systems
2, It starts the electric pump automatically after a pressure decrease (taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closed)
3, Joint screw: G1" male
4, Completely replaced traditional pump control system composed of pressure swtich, pressure tank and check valve, etc.
5, Stop the water pump in the case of water shortage
6, Customized setting
7, PC-13A: Starting pressure is adjustable during installation
8, PC-13B: With plug and socket, pump connection be more easily.

OPTIONALS
1, Color
2, G1" plastic/bronze pipe joint for a quick connection to water pump
3, Power cable length can choose according to customer's needs.


PACKING SIZE (cm)	46.5 x 42.7 x 25
PCS/CTN	12
N.W. (KGS)	13.56
G.W. (KGS)	16.42
