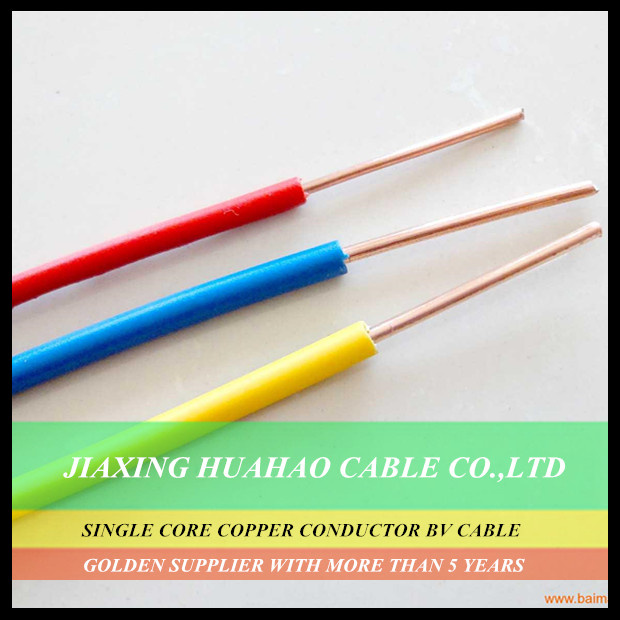

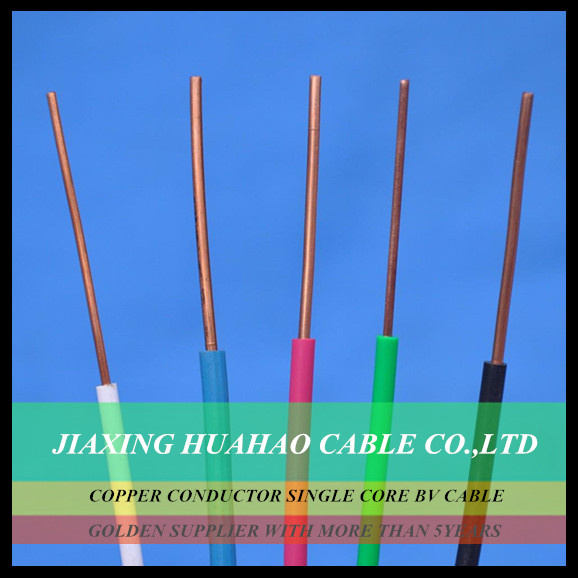

Electrical Wire PVC Insulation BV/Bvr Cable with SGS Approved

Name: Electrical Wire PVC Insulation BV/Bvr Cable with SGS Approved
Brand: all-electronics-online.com
SKU: 746689855
Availability: InStock
Rating: 4.5 (133 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Specification Size and Technical Data

Model	Rated Voltage	Normal area (mm)	Overall diameter (mm)	Weight (KG)	Conductor Resistance rate Not more than at 20 centigrade (Ω/km)	Wire core structure Cores/Diameters (mm)
BV	300/500V	0.5	2.4	8.5	36.0	1/0.80
BV	300/500V	0.75(A)	2.6	11.1	24.5	1/0.97
BV	300/500V	0.75(B)	2.8	12.0	24.5	7/0.37
BV	300/500V	1.0(A)	2.8	13.9	18.1	1/1.13
BV	300/500V	1.0(B)	3.0	15.0	18.1	7/0.43
BV	450/750V	1.5(A)	3.3	20.3	12.1	1/1.38
BV	450/750V	1.5(B)	3.5	21.6	12.1	7/0.52
BV	450/750V	2.5(A)	3.9	31.6	7.41	1/1.78
BV	450/750V	2.5(B)	4.2	34.8	7.41	7/0.68
BV	450/750V	4(A)	4.4	47.1	4.61	1/2.76
BV	450/750V	4(B)	4.8	50.3	4.61	7/1.04
BV	450/750V	6(A)	4.9	67.0	3.08	7/1.35
BV	450/750V	6(B)	5.4	71.2	3.08	7/1.70
BV	450/750V	10	7.0	119	1.83	7/2.14
BV	450/750V	16	8.0	179	1.15	7/2.52
BV	450/750V	25	10	281	0.727	19/7.18
BV	450/750V	35	11.5	381	0.524	19/2.14
BVR	450/750V	2.5	4.2	34.7	7.41	19/0.41
BVR	450/750V	4	4.8	51.4	4.61	19/0.52
BVR	450/750V	6	5.6	73.6	3.08	19/0.64
BVR	450/750V	10	7.6	129	1.83	49/0.52
BVR	450/750V	16	8.8	186	1.15	49/0.64
BVR	450/750V	25	11.0	306	0.727	98/0.58
BVR	450/750V	35	12.5	403	0.524	133/0.8
BVR	450/750V	50	14.5	553	0.387	133/0.68
BVR	450/750V	70	16.5	764	0.268	189/0.68
BVR	450/750V

Standard

GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227

Application

The products is suitable for use in power installations, fixed wiring or flexible

connections for electrical appliances like lighting, electronic equipment, instrument

and communication equipment with rated voltage 450/750V or less

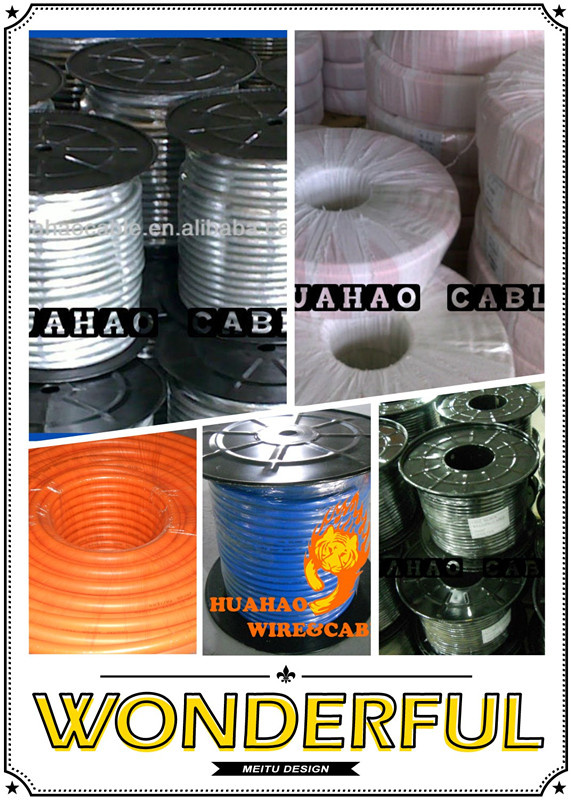

PACKING

company information

Prod Model:	BV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Copper
Insulation Material:	PVC
Range Of Application:	Power Installations
Brand:	Huahao

Jiaxing Huahao Cable Co., Ltd., is located in Haiyan Economic Developing Zone, Zhejiang Province. We are at the north of Hangzhou Bay Bridge, 100km away from Shanghai Pudong Airport, 50 minutes away from Hangzhou International Airport by car. The superior geographical surrounding and speedy transportation network provide us a great convenience for goods transportation at home and abroad. Since the establishment in 2010, we have been specialized in designing, developing, and producing all kinds of PVC cable materials, injection materials, environmental protection materials, such as welding cables, speaker cables, and audio cables. All products are subjected to the most advanced testing equipment by virtue of strong human resources, technical support and production strength.

Welcome to visit our cable factory and we are expecting to cooperate with all kinds of cable importers, wholesaler &retail trader from all over the world as well as double-win with our partners and build long-time business relationship. Since the establishment, we have implemented the business philosophy"QUALITY FIRST, CUSTOMER FIRST, HONEST FIRST. "That is our presistent persuit to offer you excellent service and quality guarantee.
