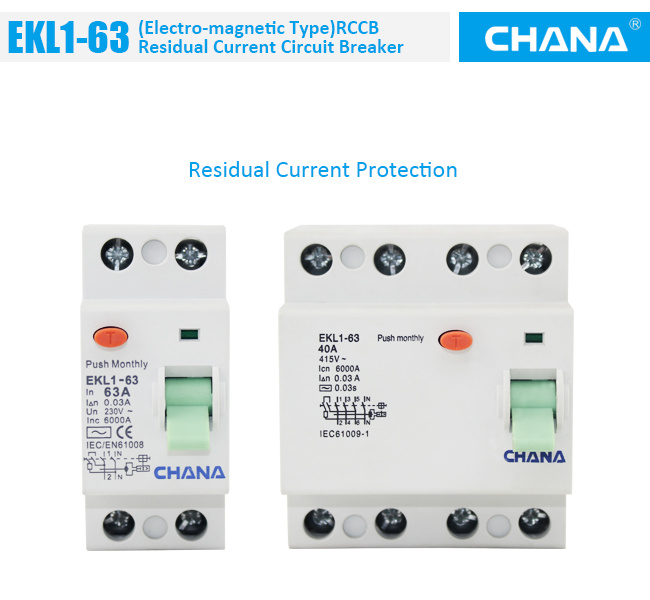

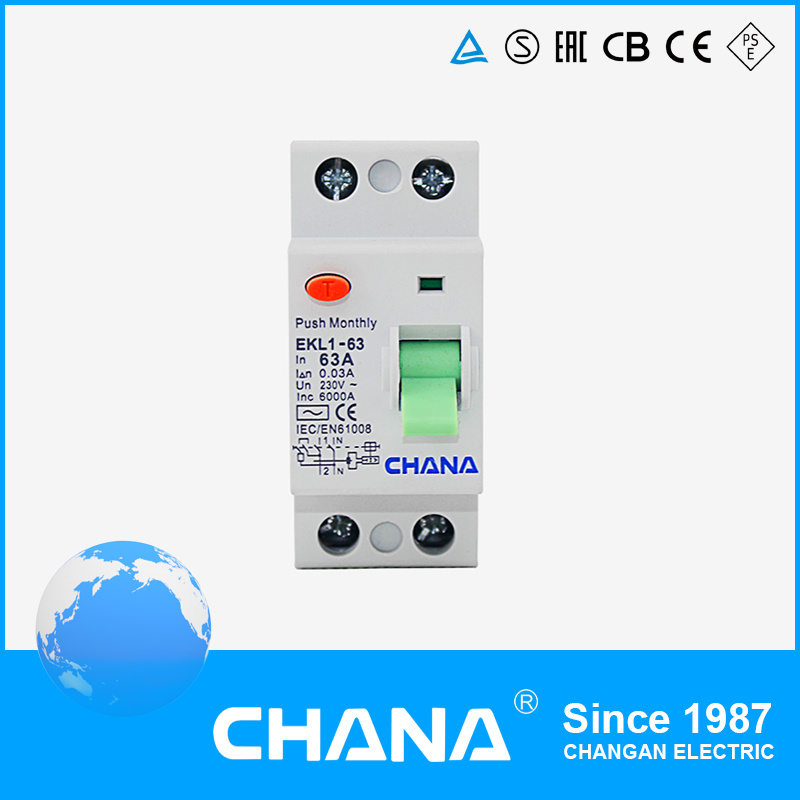

Electro-Magnetic Type ELCB RCCB with TUV Certification Ekl1-63

Name: Electro-Magnetic Type ELCB RCCB with TUV Certification Ekl1-63
Brand: all-electronics-online.com
SKU: 743394555
Availability: InStock
Rating: 5 (107 reviews)

Price:	US $ 4.4-6.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Free samples can be provided!!!

Standard	IEC61008-1
Electrical Feature
Type(wave form of the earth leakage sensed)		AC, A, AC~S, A~S
Rated current In	A	25,40,50,63
Poles	P	2,4
Rated voltage Ue	V	240/415
Rated sensitivity	A	0.03,0.1,0.3
Insulation voltage Ui	V	500
Rated residual making and breaking capacity	A	500(In=25/40A) 630(In=50/63A)
Short-circuit current Inc	A	4500/6000A
SCPD fuse		6000
Break time under	S	≤0.1
Rated frequency	Hz	50/60
Rated impulse withstand voltage(1.2/50) Uimp	V	4000
Dielectric test voltage at ind. Freq. For 1 min	V	2500
Pollution degree		2
Mechanical Feature
Electrical life		2000
Mechanical life		2000
Fault current indicator		Yes
Protection degree		IP20
Ambient temperature (with daily average≤ 35º C)	º C	-5...+40
Storage temperation	º C	-25...+70
Installation
Terminal connection type	Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable	25mm2 18-3AWG
Terminal size top/bottom for busbar	25mm2 18-3AWG
Tightening torque	2.5 N*m 18 In-Ibs
Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
Connection	From top and bottom

How to Order?
1. Let us have the details of your requirements.
2. Price-list will be sent for confirmation.
3. After prices confirmed,PI will be sent for payment.
4. After get your Deposit,production will be arranged within one day.
5. When goods ready,all the documents for custom clearance will be scanned to you for the balance payment.
6. OEM/ODM is acceptable

Shipping:
1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

Prod Model:	EKL1-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	PA
Handle Color:	Blue
MCB Capacity:	6ka or 10ka
Electrical Life:	8000
Dielectric Test:	1min 2kv
Rated Sensitivity For ELCB,RCCB,RCBO:	0.03A,0.1A,0.3A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCB
Certification:	Eac,RoHS
Installation:	DIN Rail
Poles Number:	1p,1p+N,2p,3p,3p+N,4p

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
