Electronic Component N-CH Transistor Power Mosfet

Prod Model:	STF10LN80K5
Channel Type:	N
Number Of Elements Per Chip:	1
Maximum Drain Source Voltage (V):	800
Maximum Gate Source Voltage (V):	+/-30
Maximum Continuous Drain Current (a:	8
Maximum Gate Threshold Voltage (V):	5
Operating Temperature Range:	-55 to 150 Degree C

Product Description

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

MANUFACTURER
STMicroelectronics

PRODUCT CATEGORY
MOSFETs

DESCRIPTION

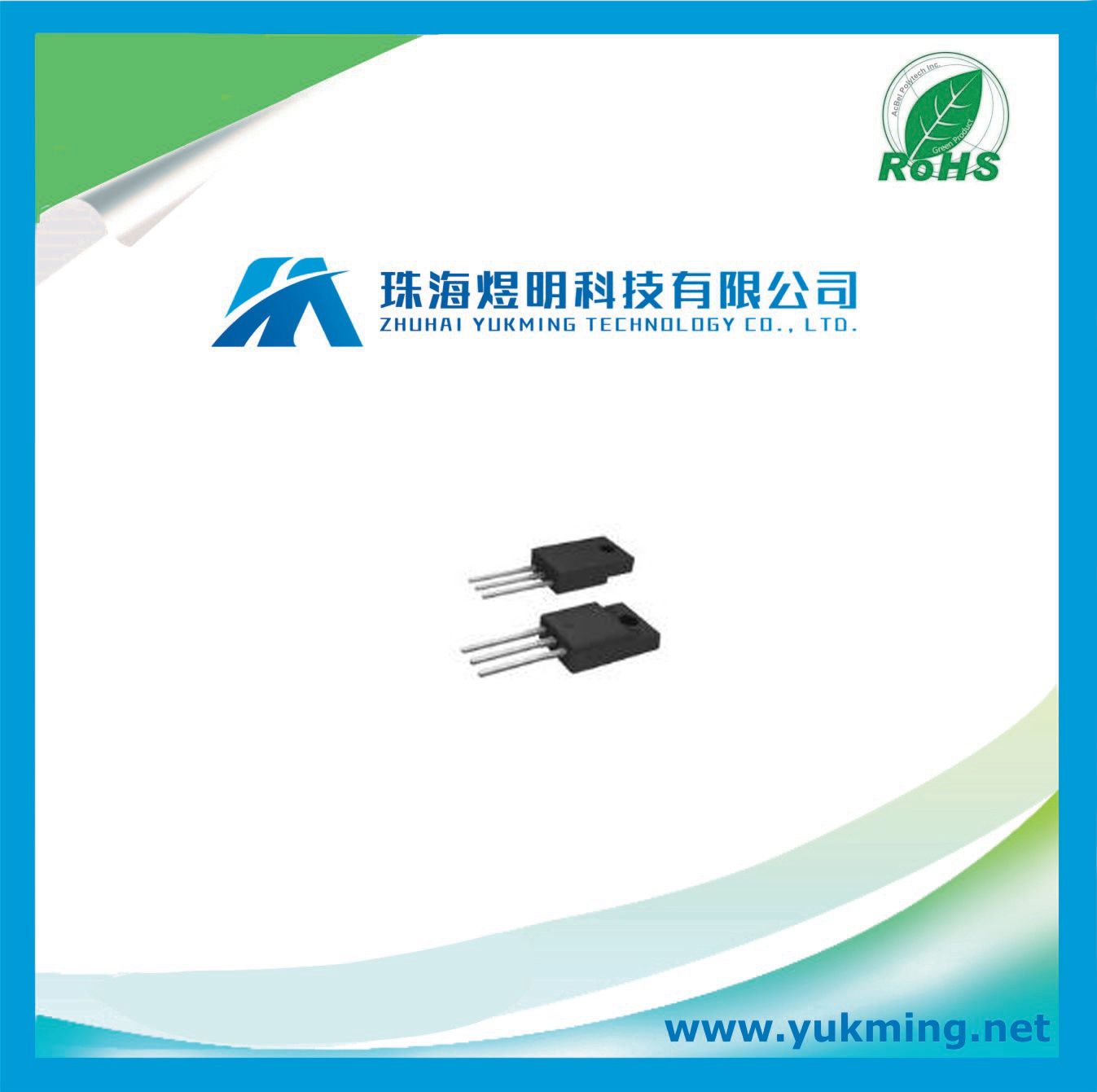

Trans MOSFET N-CH 800V 8A 3-Pin(3+Tab) TO-220FP Tube

Specifications
Product Category Power MOSFET
Configuration Single
Technology Mdmesh K5
Channel Mode Enhancement
Channel Type N
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 800
Maximum Gate Source Voltage (V) ±30
Maximum Continuous Drain Current (A) 8
Maximum Gate Threshold Voltage (V) 5
Maximum Drain Source Resistance (mOhm) 630@10V
Typical Gate Charge @ Vgs (nC) 15@10V
Typical Gate Charge @ 10V (nC) 15
Typical Input Capacitance @ Vds (pF) 427@100V
Maximum Power Dissipation (mW) 25000
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tube
Typical Turn-On Delay Time (ns) 11.8
Typical Turn-Off Delay Time (ns) 28
Typical Fall Time (ns) 13
Typical Rise Time (ns) 10
Maximum Gate Source Leakage Current (nA) 10000
Maximum IDSS (uA) 1
Mounting Through Hole
Package Height (mm) 16.4(Max)
Package Length (mm) 10.4(Max)
Package Width (mm) 4.6(Max)
PCB changed 3
Tab Tab
Standard Package Name TO-220
Supplier Package TO-220FP
Pin Count 3
Lead Shape Through Hole
