Electronic Component PNP General Purpose Bipolar Junction Transistor

PRODUCT CATEGORY
GP BJT

DESCRIPTION

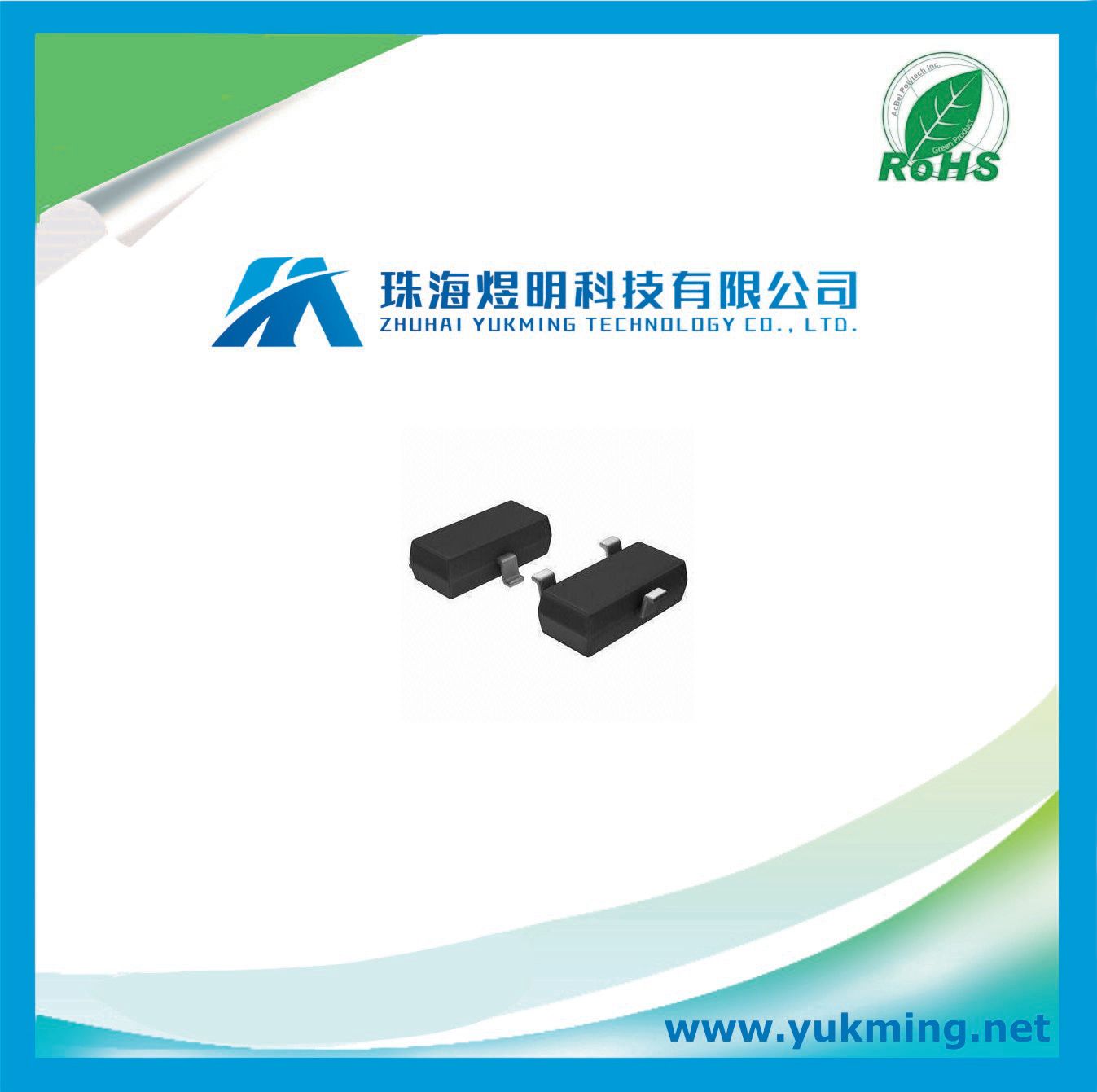

Trans GP BJT PNP 60V 0.8A 3-Pin SOT-23 T/R

Thanks to Fairchild Semiconductor, your circuit can handle high levels of voltage using the PNP MMBT2907A general purpose bipolar junction transistor. This bipolar junction transistor's maximum emitter base voltage is 5 V. Its maximum power dissipation is 350 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C. It has a maximum collector emitter voltage of 60 V and a maximum emitter base voltage of 5 V.

Specifications
EU RoHS Compliant
Type PNP
Configuration Single
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 60
Maximum Emitter Base Voltage (V) 5
Maximum Collector Emitter Voltage (V) 60
Maximum DC Collector Current (A) 0.8
Maximum Power Dissipation (mW) 350
Minimum DC Current Gain [email protected]@10V|100@1mA@10V|100@10mA@10V|100@150mA@10V|50@500mA@10V
Maximum Transition Frequency (MHz) 200(Min)
Product Category Bipolar Small Signal
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Maximum Collector Cut-Off Current (nA) 20
Packaging Tape and Reel
Maximum Collector Emitter Saturation Voltage (V) 0.4@15mA@150mA|1.6@50mA@500mA
Maximum Base Emitter Saturation Voltage (V) 1.3@15mA@150mA|2.6@50mA@500mA
Mounting Surface Mount
Package Height (mm) 0.93
Package Length (mm) 2.92
Package Width (mm) 1.3
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
