Electronic Component Transistor Mosfet P-CH 60V 2.9A Automotive

Name: Electronic Component Transistor Mosfet P-CH 60V 2.9A Automotive
Brand: all-electronics-online.com
SKU: 807415455
Availability: InStock
Rating: 4.4 (144 reviews)

Price:	US $ 0.61/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

MANUFACTURER
Infineon Technologies AG

PRODUCT CATEGORY
MOSFETs

DESCRIPTION

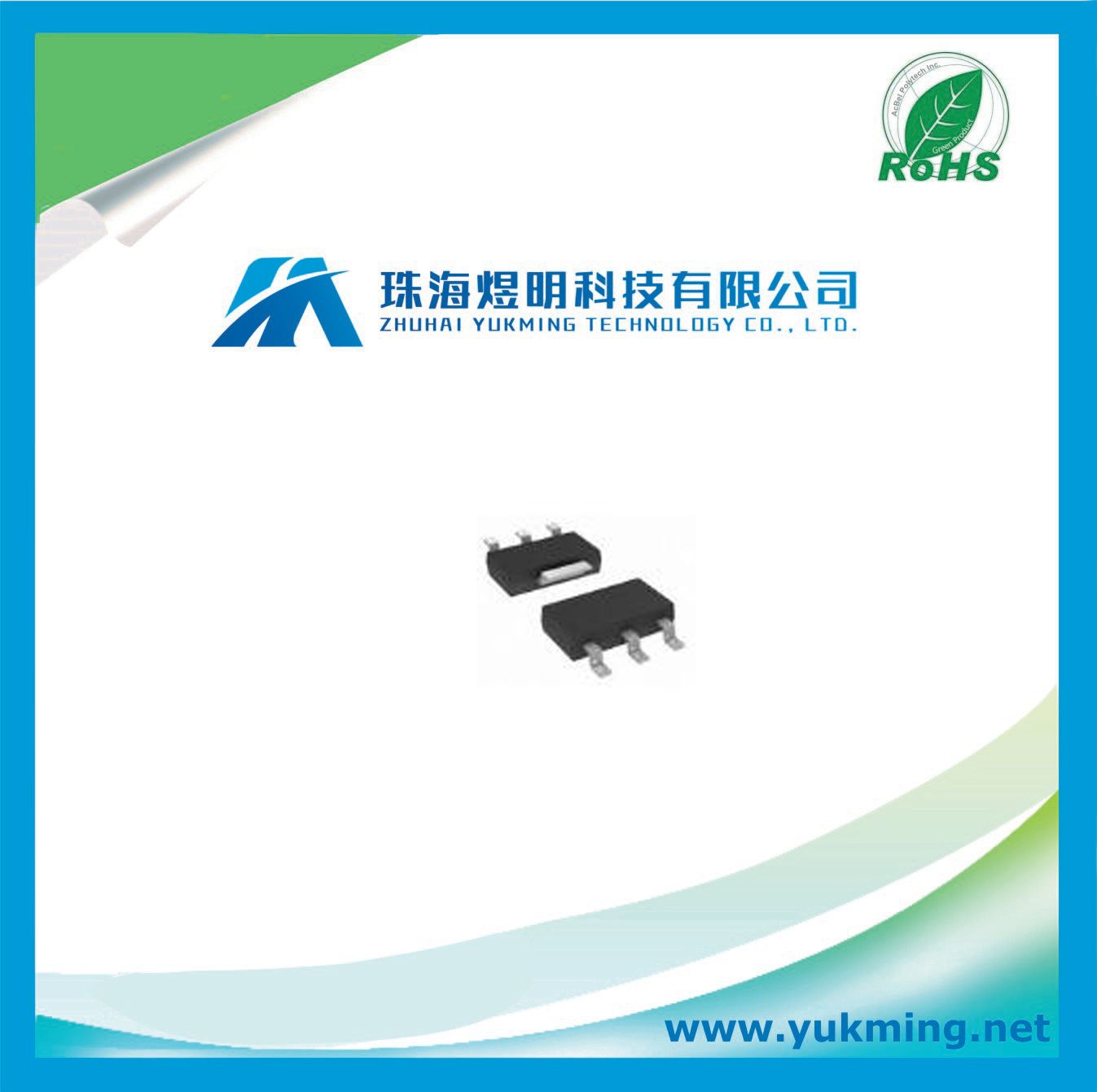

Trans MOSFET P-CH 60V 2.9A Automotive 4-Pin(3+Tab) SOT-223 T/R

In addition to amplifying electronic signals, you'll be able to switch between various lines with the BSP613PH6327XTSA1 power MOSFET, developed by Infineon Technologies. Its maximum power dissipation is 1800 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device is made with sipmos technology. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This P channel MOSFET transistor operates in enhancement mode.

Specifications
EU RoHS Compliant
Product Category Small Signal
Configuration Single Dual Drain
Technology SIPMOS
Channel Mode Enhancement
Channel Type P
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 60
Maximum Gate Source Voltage (V) ±20
Maximum Continuous Drain Current (A) 2.9
Maximum Drain Source Resistance (mOhm) 130@10V
Typical Gate Charge @ Vgs (nC) 22@10V
Typical Gate Charge @ 10V (nC) 22
Typical Input Capacitance @ Vds (pF) 715@25V
Maximum Power Dissipation (mW) 1800
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Typical Turn-On Delay Time (ns) 6.7
Typical Turn-Off Delay Time (ns) 26
Typical Fall Time (ns) 7
Typical Rise Time (ns) 9
Mounting Surface Mount
Package Height (mm) 1.6
Package Length (mm) 6.5
Package Width (mm) 3.5
PCB changed 3
Tab Tab
Standard Package Name SOT
Supplier Package SOT-223
Pin Count 4
Lead Shape Gull-wing

Prod Model:	BSP613PH6327XTSA1
Number Of Elements Per Chip:	1
Maximum Drain Source Voltage (V):	60
Maximum Gate Source Voltage (V):	+/-20
Maximum Continuous Drain Current (a):	2.9
Operating Temperature Range:	-55 to 150 Degree C
