Product Description

GPS container seal lock tracker with door lock/unlock alarm for container locking, and cargo security solution.

1. Breif introduction:

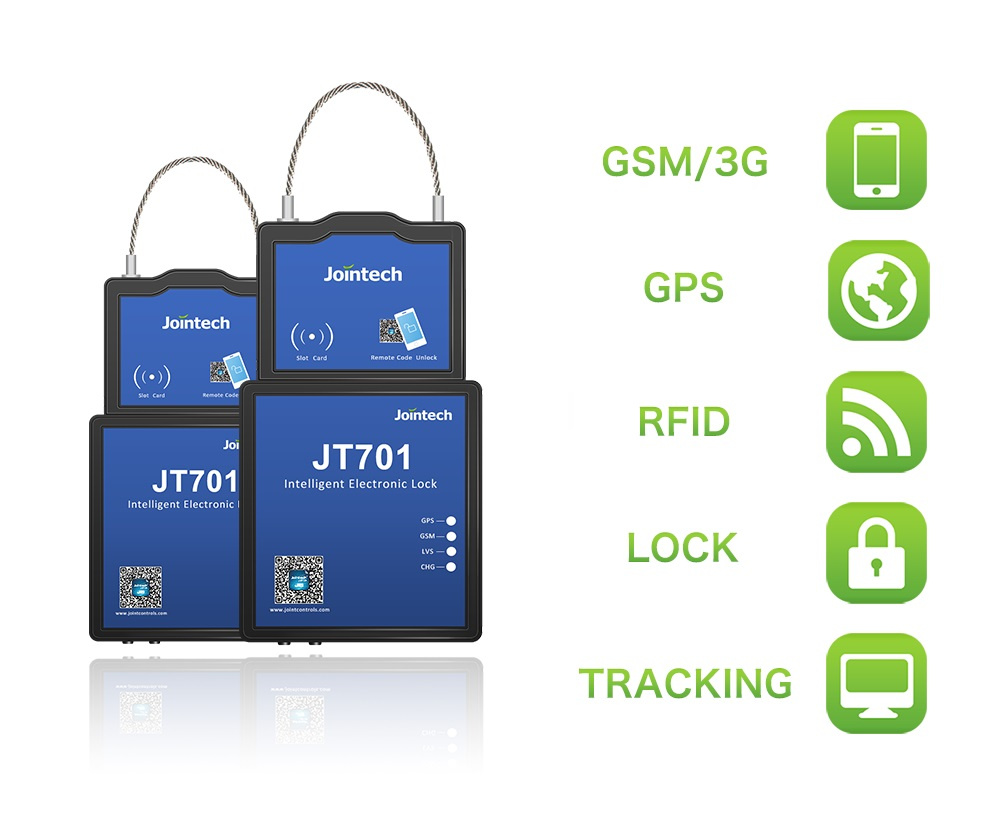

JT701 is a kind of GPS remote intelligent eseal lock tracker device, which is special designed for container tracking, monitoring and management solution. It is integrated with features of: micro electron controlling, RFID, GPS&GSM, etc.

Firstly, JT701 is a kind of GPS tracker device. It is inbuilt GPS, GSM module for container real time position tracking. It is inbuilt big capacity battery 15000mA, and has intelligent working mode for power & data flow saving.  Waterproof IP67 for dust and water resistance, and it is good for outdoor hard environment application.

secondly, It is also a intelligent electronic lock device. It help monitor container door status, and keep security of cargo. Device is open by RFID card, SMS command, and GPRS. and it can support muti kinds of alarm: Swipe RFID card alarm, lock string cut off alarm, unlock alarm, lock alarm, geo fence alarm, etc.

2. Information available:
1). Position of the container is provided by the GPS function;

     shown as a landmark on the map, and address or coordinate.
2). Door open/closed.
3). Battery charge level.
4). Indicate that the container door has been left open

     or imply that there has been an attempt to break-in.

3. Unique Features:

1). Live GPS tracking;

2). Door locking status monitoring;

3). On site unlock by authorized RFID;

4). Remote unlock by SMS, Software;

5). Real time tamper alert for prompt response;

6). IP67 waterproof to be used outdoor;

7). Big battery lasts more than 7 days at 1 data/minute;

8). Easy to install with magnet base;

9). Adjustable metal string adapt to container, van truck, cargo and valuable assets.

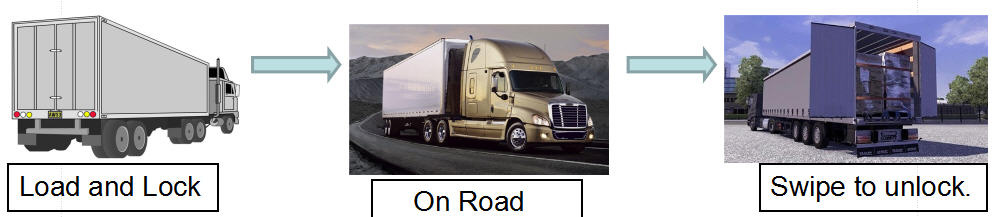

4. Working Principle:
1).  Load the goods, Authorize the ID cards, Swipe the card and lock the door with JT701
2).  On the road:  JT701 will upload the position to the server, you can monitor it in computer or mobile in real time
3). Desitination:     Swipe the card to unlock JT701 (or unlock with password via SMS, unlock with command via software)
4). Reports: Who, When, Where unlocked, trace, can be checked at any time
5). Alarms: Low battery alarm, Sting cut alarm, card swiping, unlocking, wrong password SMS, vibration, geofence

5. SPECIFICATION:


6. APPLICATION:

JT701 is widely used for outdoor mobile asset tracking, such as:

1.Customs/government inland container transportation supervision and tracking project.

2. logistic fleet van trucks door status monitoring and cargo security protecting solution.

3. trailer trucks monitoring.

4. ware house door status monitoring solution.

All the trackers from JOINTECH are with ONE year warranty.


Technical support/after sales service:
1). We have engineers online to provide technical support on time.
2). Free training is available in our company.
3). Technical assistance is also available for big project.

We can meet your requirement by special customization, such as: dual SIM card for cross border transportation, different length size on lock string, charge cable, charge docking station by special design, etc.
