Electronic Part 1500W, 5-188V Do-214ab Tvs Rectifier Diode Smcj43A

Electronic Part 1500W, 5-188V Do-214ab Tvs Rectifier Diode Smcj43A
Price: US $ 0.007-0.008/Piece
Min Order: 10000/Piece
Pay Type: T/T
Prod Model: Smcj43A
Peak Pulse Power: 1500W
Stand-off Voltage: 5-188V
If: 1A
Case: Copper
Certificate: ISO
Vf: 1V
Samples: Free Samples
Lead Time: 1-2 Weeks
Manufacturing Technology: Optoelectronic Semiconductor
Material: Element Semiconductor
Type: Intrinsic Semiconductor
Package: SMD
Model: Smcj43A
Batch Number: 2016+
Brand: Sy

Product Description

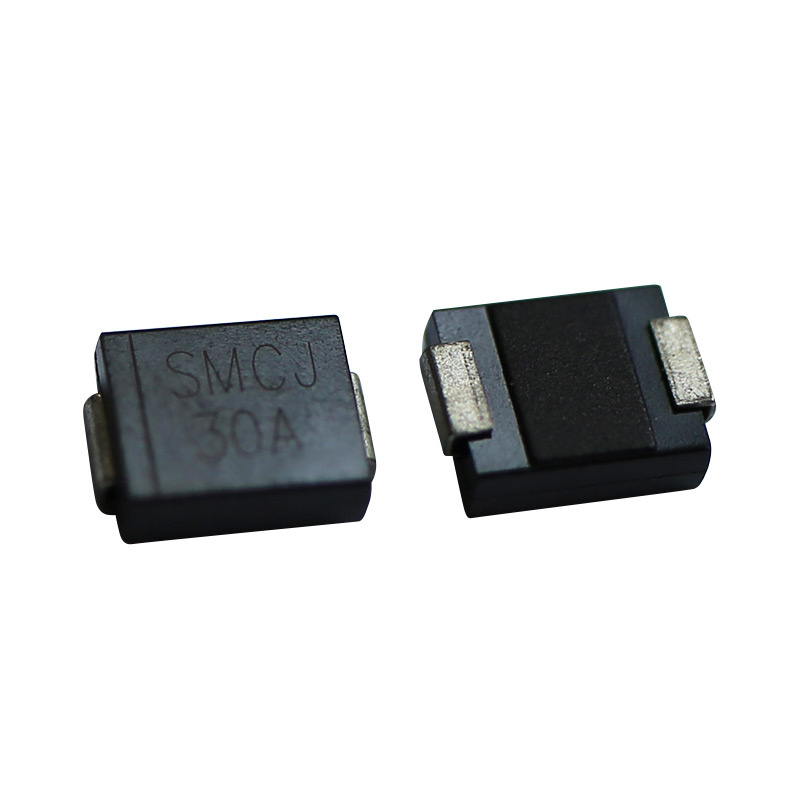

Electronic part 1500W,5-188V DO-214AB TVS rectifier diode SMCJ43A

TVS diode


Features
1,  High surge capability .
2,  High current capability .
3,  Low leakage .
4,  High temperature soldering guaranteed250¡æfor10 seconds .

Mechanical Data
Case:            Molded plastic case
Terminals:     Plated terminals, solderable per MIL-STD-202,method 208.
Polarity :        Color band denotes cathode end.
Mounting Position:  Any
Weight:    1.8 grams.

TVS diodes range
TYPEBreakdown VoltageStand-off
Voltage
Maximum
Reverse Leakage
@VRWM
Maximum
Peak Pulse
Current
Maximum
Clamping
Voltage@IPPM
Power
Dissipation
Package
VBR@ITITVRWMIRIRSMVRSMPd
MinMaxmAVμAAVW
SMCJ5.06.407.82105.0800156.39.61500DO-214AB
(SMC)
SMAC5.0A6.407.07105.0800163.09.21500
SMCJ6.06.678.15106.0800131.611.41500
SMCJ6.0A6.677.37106.0800145.610.31500
SMCJ6.57.228.82106.5500122.012.31500
SMCJ6.5A7.227.98106.5500133.911.21500
SMCJ7.07.789.51107.0200112.813.31500
SMCJ7.0A7.788.60107.0200125.012.01500
SMCJ7.58.3310.31.07.5100104.914.31500
SMCJ7.5A8.339.211.07.5100116.312.91500
SMCJ8.08.8910.91.08.050100.015.01500
SMCJ8.0A8.899.831.08.050110.313.61500
SMCJ8.59.4411.51.08.52094.315.91500
SMCJ8.5A9.4410.41.08.520104.314.41500
SMCJ9.010.012.21.09.01088.816.91500
SMCJ9.0A10.011.11.09.01097.415.41500
SMCJ1011.113.61.010.05.079.818.81500
SMCJ10A11.112.31.010.05.088.217.01500
SMCJ1112.214.91.011.05.074.620.11500
SMCJ11A12.213.51.011.05.082.418.21500
SMCJ1213.316.31.012.05.068.222.01500
SMCJ12A13.314.71.012.05.075.419.91500
SMCJ1314.417.61.013.05.063.023.81500
SMCJ13A14.415.91.013.05.069.821.51500
SMCJ1415.619.11.014.05.058.125.81500
SMCJ14A15.617.21.014.05.064.723.21500
SMCJ1516.720.41.015.05.055.826.91500
SMCJ15A16.718.51.015.05.061.524.41500
SMCJ1617.821.81.016.05.052.128.81500
SMCJ16A17.819.71.016.05.057.726.01500
SMCJ1718.923.11.017.05.049.230.51500
SMCJ17A18.920.91.017.05.054.327.61500
SMCJ1820.024.41.018.05.046.632.21500
SMCJ18A20.022.11.018.05.051.429.21500
SMCJ2022.227.11.020.05.041.935.51500
SMCJ20A22.224.51.020.05.046.332.41500
SMCJ2224.429.81.022.05.038.139.41500
SMCJ22A24.426.91.022.05.042.335.51500
SMCJ2426.732.61.024.05.034.943.01500
SMCJ24A26.729.51.024.05.038.638.91500
SMCJ2628.935.31.026.05.032.246.61500
SMCJ26A28.931.91.026.05.035.642.11500
SMCJ2831.138.01.028.05.030.050.11500
SMCJ28A31.134.41.028.05.033.045.41500
SMCJ3033.340.71.030.05.028.053.51500
SMCJ30A33.336.81.030.05.031.048.41500
Notes:suffix with "CA" means bi-directional(e.g,SMCJ5.0CA), electrical characteristics apply in both directions.
TYPEBreakdown VoltageStand-off
Voltage
Maximum
Reverse Leakage
@VRWM
Maximum
Peak Pulse
Current
Maximum
Clamping
Voltage@IPPM
Power
Dissipation
Package
VBR@ITITVRWMIRIRSMVRSMPd
MinMaxmAVμAAVW
SMCJ3336.744.91.033.05.025.459.01500DO-214AB
(SMC)
SMCJ33A36.740.61.033.05.028.153.31500
SMCJ3640.0 48.91.0365.023.364.31500
SMCJ36A40.0 44.21.0365.025.858.11500
SMCJ4044.4 54.31.0405.021.071.41500
SMCJ40A44.4 49.11.0405.023.364.51500
SMCJ4347.8 58.41.0435.019.676.71500
SMCJ43A47.8 52.81.0435.021.669.41500
SMCJ4550.0 61.11.0455.018.780.31500
SMCJ45A50.0 55.31.0455.020.672.71500
SMCJ4853.3 65.11.0485.017.585.51500
SMCJ48A53.3 58.91.0485.019.477.41500
SMCJ5156.7 69.31.0515.016.591.11500
SMCJ51A56.7 62.71.0515.018.282.41500
SMCJ5460.0 73.31.0545.015.693.61500
SMCJ54A60.0 66.31.0545.017.287.11500
SMCJ5864.4 78.71.0585.014.61031500
SMCJ58A64.4 71.21.0585.016.096.31500
SMCJ6067.7 81.51.0605.014.01071500
SMCJ60A67.7 73.71.0605.015.596.81500
SMCJ6471.1 86.41.0645.013.21141500
SMCJ64A71.1 78.61.0645.014.61031500
SMCJ7077.8 95.11.0705.012.01251500
SMCJ70A77.8 86.01.0705.013.31131500
SMCJ7583.3 102.01.0755.011.21341500
SMCJ75A83.3 92.11.0755.012.41211500
SMCJ7886.7 106.01.0785.010.81391500
SMCJ78A86.7 95.81.0785.011.91261500
SMCJ8594.4 115.01.0855.09.91511500
SMCJ85A94.4 104.01.0855.010.91371500
SMCJ90100.0 122.01.0905.09.41601500
SMCJ90A100.0 111.01.0905.010.31461500
SMCJ100111.0 136.01.01005.08.41791500
SMCJ100A111.0 123.01.01005.09.31621500
SMCJ110122.0 149.01.01105.07.71961500
SMC110A122.0 135.01.01105.08.51771500
SMCJ120133.0 163.01.01205.07.02141500
SMCJ120A133.0 147.01.01205.07.81931500
SMCJ130144.0 176.01.01305.06.52311500
SMCJ130A144.0 159.01.01305.07.22091500
SMCJ150167.0 204.01.01505.05.62681500
SMCJ150A167.0 185.01.01505.06.22431500
SMCJ160178.0 218.01.01605.05.22871500
SMCJ160A178.0 197.01.01605.05.82591500
SMCJ170189.0 231.01.01705.04.93041500
SMCJ170A189.0 209.01.01705.05.52751500
Notes:suffix with "CA" means bi-directional(e.g,SMCJ5.0CA), electrical characteristics apply in both directions.


FAQ:

1, Are you Manufacturer or trading company?
We are a manufacturer only in diode, bridge rectifier and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to cut down your cost.

2. May I have some samples for testing?

Yes, sure. We offer free samples for you and you only need to pay the freight for samples. If you have order with us, we will deduct the freight from your first order.

3. What about the delivery ?

Usually the lead time is about 1-2 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time.

4. What about the payment terms ?
Order amount is less than $10000: 100% Advance.
Order amount is between $10000 and $20000: 50% Advance and 50% before shipment.
Order amount is more than $20000: 30% Advance and 70% before shipment.
Old customer with good reputation: NET 30days.

5. What about the shipment terms ?
FOB Shanghai by air;
CFR your city seaport by sea;

We also work with DHL, FEDEX, TNT and etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.

If you have any question or need techical support,  please do not hesitate to contact us, we will try our best to serve you.
