Electronic Type with Overcurrent Protection Circuit Breaker RCBO

Name: Electronic Type with Overcurrent Protection Circuit Breaker RCBO
Brand: all-electronics-online.com
SKU: 806753095
Availability: InStock
Rating: 4.7 (119 reviews)

Price:	US $ 2.4-6.58/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47
Warranty Time:	3 Years
Service:	OEM and ODM Service
Delivery Time:	2 Weeks
Certificate:	Ce ,TUV
Payment:	T/T or L/C
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Installation:	Fixed
Poles Number:	3
Certification:	CCC
Arc-extinguishing Medium:	RCCB
Structure:	RCBO

Product Description

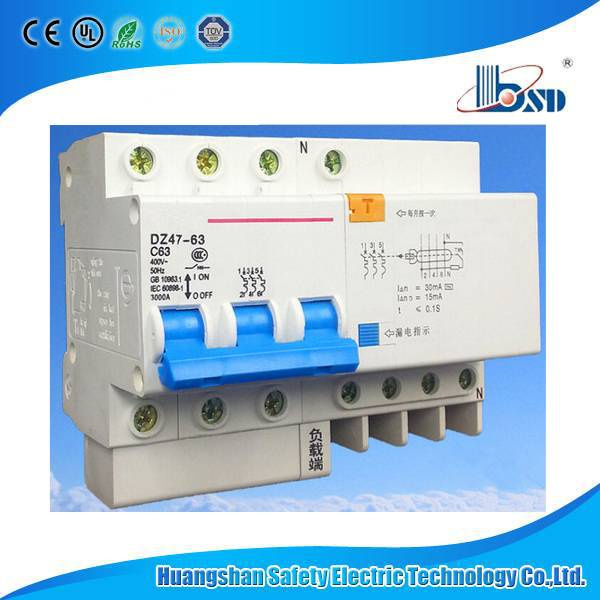

Overcurrent Protection Circuit Breaker RCBO
Product Description

Application
DZ47LE-63 series residual current circuit breaker. The product is suitable for the circuit, rated working voltage 230/400V, rated current 63A, rated running shortcircuit breaking capacity not exceed 6KA. For unfrequent circuit close, break & switch, with earthleakage, overload & shortcircuit protection. For unfrequent circuit close, break & switch.

Normal working & installment conditions
1.Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.
2.Installment plance altitude: ≤2000m
3.Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.
4.Pollution degree: 2 class
5.Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).
6.Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.
7.Mounted Category: II,III class.
Specification

Rated voltage	220V/440V
Rated current	6~63A
Case current class	63A
Breaking capacity	4.5KA
According to standands	GB10917.1
Rated residual action current	30mA
Rated residual no-action current	15mA
Rated residual close & break capacity	2KA
Impulse withstand voltage	Uimp = 4KV
Earthleakage action time	≤0.1s

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
