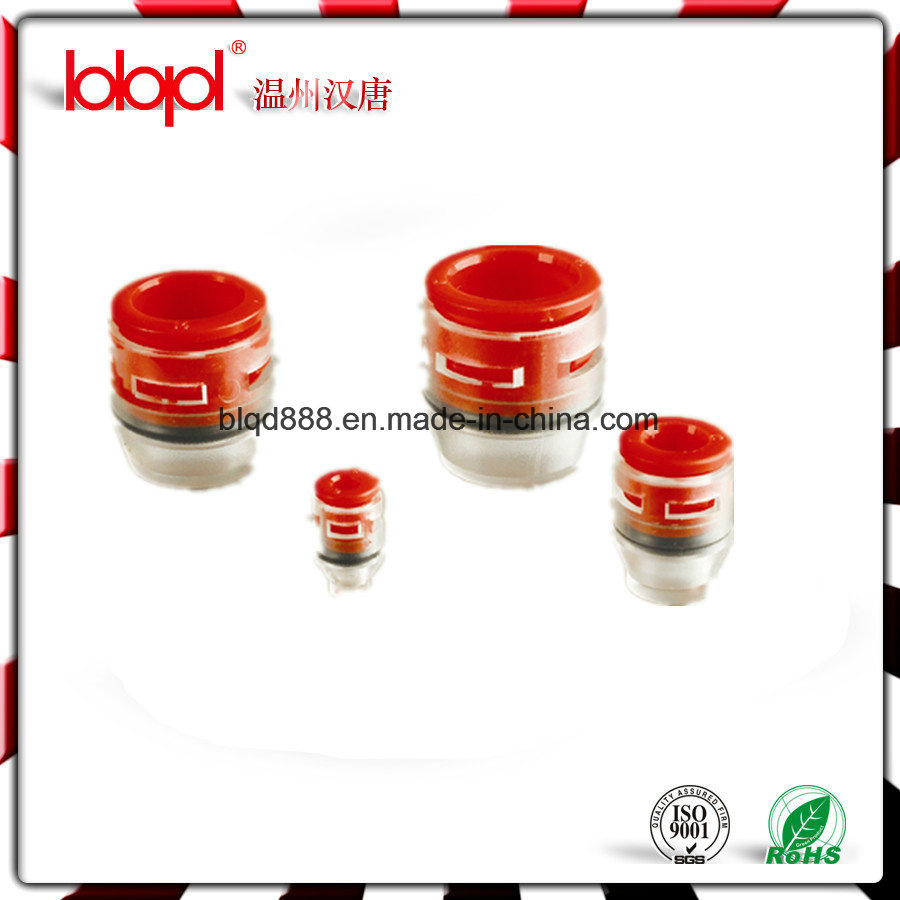

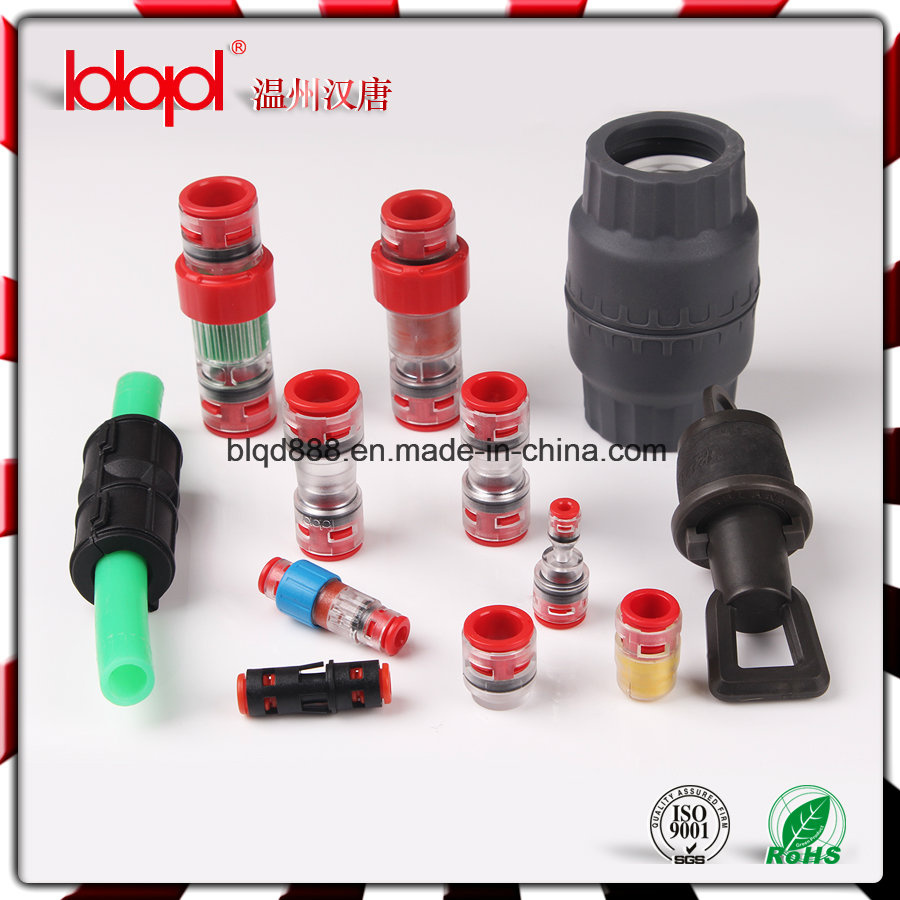

Straight Connectors, MICRO COUPLING STRAIGHT connectors
Installation time reduced.
l Locking clips available in order to prevent microducts accidental disconnection.
Specifications
Clear Connector for MicroDuct
Easy installation
can be connected and disconnected 10 times
System Benefits
l Installation time reduced.
l Locking clips available in order to prevent microducts accidental disconnection.
l Transparent body allows inspection of correct installation of the cable.
l Anti shock cover available in order to prevent damages. It's special design allow inspection of correct installation of the cable also when installed. Locking clip function included.
Technical Specifications
Fittings Accessories:
Body: Transparent PA Locking clip: POM
Cartridge: Nickel plated brass Anti shock cover: PP
Collect: Black POM
Seals: NBR
Lock claws: Stainless steel
Performance
Temperature:
Working temperature: -15°C ~ +45°C
Pressure:
Working pressure: 15 bar
Burst pressure: >45 bar
Specification:
No. |
Description |
Model No. |
For Tube OD(mm) |
1 |
3mm Straight Connector |
S03 |
3-3 |
2 |
4mm Straight Connector |
S04 |
4-4 |
3 |
5mm Straight Connector |
S05 |
5-5 |
4 |
6mm Straight Connector |
S06 |
6-6 |
5 |
7mm Straight Connector |
S07 |
7-7 |
6 |
8mm Straight Connector |
S08 |
8-8 |
7 |
10mm Straight Connector |
S10 |
10-10 |
8 |
12mm Straight Connector |
S12 |
12-12 |
9 |
14mm Straight Connector |
S14 |
14-14 |
10 |
16mm Straight Connector |
S16 |
16-16
|
Packaging & Shipping
Company Information
