Energy Storage Battery with Lead Carbon

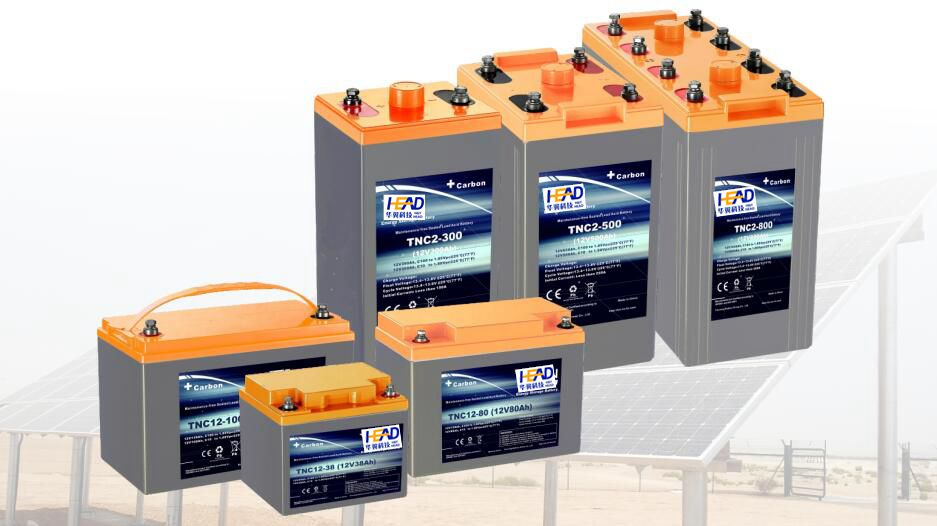

Industry Energy Storage Battery- TNC Series (Lead Carbon Battery)
The TNC series adopt newest lead carbon technology which add carbon material into negative electrode to slow down the sulfation, The TNC series battery provides not only high energy density, but also high power, rapid charge and discharge, longer cycle life. It's very suitable for renewable energy storage or where commercial power is unstable.

Construction:
 Positive plate - Thick patent rare earth alloy grid with special paste for corrosion resistance
 Negative plate - Balanced Pb-Ca grid for improved recombination efficiency, Mixed carbon into negative plate active material to slow down the sulfation.
 Separator - Advanced AGM separator for high pressure cell design
 Electrolyte - Dilute high purity sulphuric acid.
 Battery container and cover - ABS UL94-HB (Flame-resistant ABS UL94-V0 is optional)

Features:
 12V(38~250Ah), 2V (200~1500Ah), 12V front terminal (100/150/200Ah)

The carbon can greatly slow down the sulfate of negative plate due to the PSOC cycle application

Excellent par tial stage of charge (PSOC) cycle performance.12V: 2200 cycles@60%DOD, 2V: 3600 cycles@60% DOD

Excellent recharge acceptance performance, super-fast charge/large discharge performance.

Extreme temperature tolerance, capacity increase 16% at -20°C

Application
 Renewable energy system
 Hybrid solar power system
 Uninterrupted Power Supply (UPS)
 Communications and electric equipment
 Emergency lighting equipment
 Fire alarm and security systems
 Robots, control equipment, and other factory automation equipment
 Emergency power supply (EPS)
 Various power toys and hobby equipment
 Lighting equipment
