Energy Storage Film Capacitor
| Price: |
US $ 200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
energy storage |
| Rated Voltage: |
500VDC~15000VDC |
| Operating Temperature: |
-40°c~+85°c |
| Capacitor Deviation: |
±5% ±10% |
| Capacitor Case: |
Aluminum/Plastic/304 Stainless Steel |
| Capacitor Standards: |
IEC61071;IEC61881 |
| Certificate: |
RoHS/CQC/UL/VDE/SGS/TUV/ISO9001 |
| Item: |
DC-Link Oil Type Filter Capacitor1200VDC 1500UF |
| Voltage: |
800~12000VDC |
| Temperature: |
-40~+85c |
| Type: |
Polypropylene Capacitor |
| Application: |
Inverter Welder, Rail Traffic Traction, Ship Drive |
| Package Type: |
Through Hole |
| Capacitance: |
150UF~7200UF |
| Manufacturing Material: |
Polypropylene Film |
| Electrolyte: |
Polypropylene |
| Usage: |
Inverter Welder, Rail Traffic Traction, Ship Drive |
Product Description
Energy storage capacitor features:
1.Specific can density, capacitors energy storage is strong
2.Low ESR, high ripple current handling capabilities and Large current shock
3.Low Inductance, Dv/dt large, frequency characteristics is good.
4.Self-healing property
5.Long lifetime(≥100000h)
6.vacuum note oil, heat dissipation of capacitor performance is stable and reliable
7.Huge capacitance
8.thermal conductivity

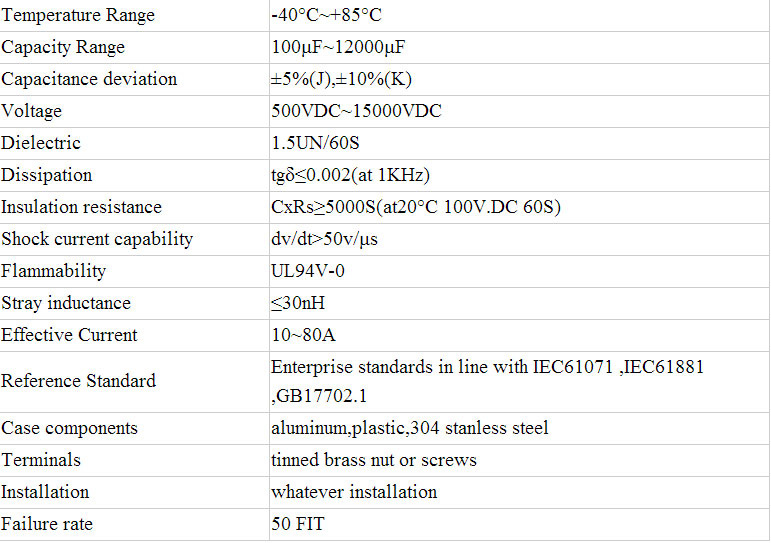

Energy storage capacitor technical data:

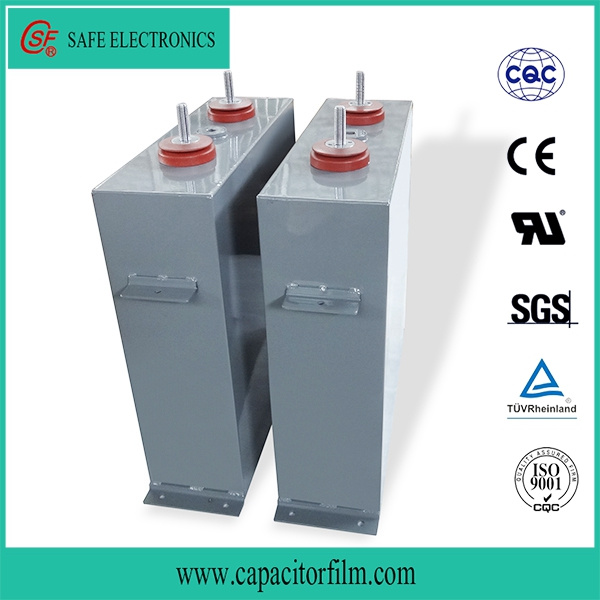

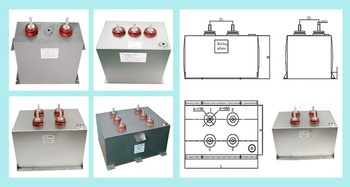

Energy storage capacitor product show:
Energy storage capacitor product package:
Energy storage capacitor applications:
Used for rail traffic traction or the ship drive converter.
Used for various power industry inverter, such as high voltage variable frequency drive device
Used for the harmonic management, SVG equipment.
1.Metallized polypropylene film convolute, special internal structure and non-inductive structure. Copper screw leads, fire-retardant plastic shell, or heat tape wrapped, epoxy resin sealed.
2.High frequency low ESR, can stand strong current, a very small parasitic inductance.
3. Suit inverter current, continuous current, switching power supply, high frequency welding machine and others high capacity resonant circuit.

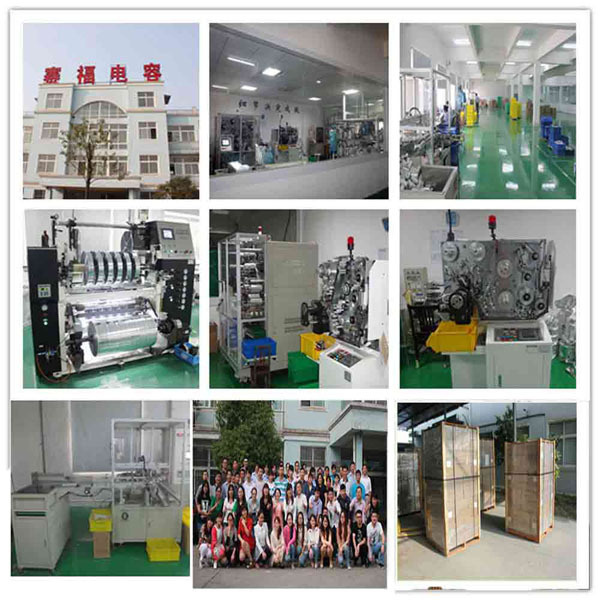

Our factory:
FAQ:
Certification:
More information you can visite our website: www.capacitorfilm.com or www.anhuisafe.com
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.
Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.
Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.
"good faith, serving the whole world" is our principle.
