Eoc Slave Modem 4 Ouput Ports Gpon/Epon/Gepon
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |

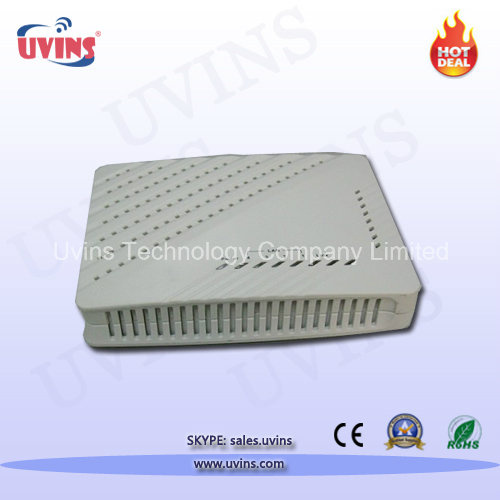

UVE-411 an EoC (Ethernet over Coaxial Cable) Slave (CNU) for access network which is based on HOMEPLUG AV technology. This device can be uplinked to EoC Master (CBAT), and downlink to end points (PC, TV or Top-Box), which can provide a whole solution for the last mile of access network with EoC master (CBAT). The advantages of the solution include realizing the broadband access of the NGB (Next Generation Broadcasting), convenient bidirectional improvement for the CATV broadband, low cost and all-pervading.Feature:*Support 4 x RJ45 for 10/100 Ethernet (auto MDI/MDI-X), and 2 x F-Type RF
connectors.
* Modulation Band is 7.5-65MHz which is no negative effective for TV signal.
* Data rate of physical layer is up to 700Mbps
* Support SNMP and compliant with China SARFT MIB.
* Support VLAN (802.1Q) and QoS (802.1p), IGMP etc.
*Support remote management and update automatic. Specification:
System spec |
|
Chipset |
AR7410,RTL8198 |
Protocol |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u,
IEEE 802.3x,IEEE 1901 |
Physical Rate |
700 Mbps |
Modulation Frequency |
7.5 MHz - 67.5MHz |
Working mode |
CSMA/CA |
Modulation Mode |
OFDM, 4096/1024/256/64/16 QAM, QPSK, BPSK |
Encryption Mode |
128-bit AES |
VLAN |
16 |
Interface data limit |
64 Kbps granularity (Min.) |
QoS |
Support VLAN priority
Support ToS and CoS packet classification
Support DSCP priority |
Multicast Supported |
Support IGMP managing multicast sessions |
Management Method |
Support SNMP, WEB, and CLI management |
Port Spec |
|
Ethernet Port |
4 x RJ45 for 10/100 Ethernet (auto MDI/MDI-X) |
Coaxial Cable Port |
2 x F-Type , 1 for input of mixed signal, 1 for output of CATV
signal |
LED |
Power indicator
Ethernet: Ethernet interface indicator LED
Diag: System state indicator LED
Link: Coax cable link state indicator LED |
Radio frequency |
|
Impedance |
75 Ω |
Transmitting Power |
0±3 dBm |
Reflection Loss |
> 16 dB |
Insertion Loss |
< 1dB |
Receiving Sensitivity |
-65dBm |
General |
|
Max. Power Consumption |
≤6W |
Power |
220V |
Operating Temperature |
0ºC-45ºC |
Storage Temperature |
-20ºC-70ºC |
Humidity |
Operating10%-90%, non-condensing ,Storage Humidity 5%-90% |
Physical Size |
L x W x H: 169.5mm x 129.4mm x 34.7mm |
Weight |
231 g |
Green Standard |
RoHs |
| Prod Model: |
UVE-411 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chipset: |
Ar7410,Rtl8198 |
| Modulation Frequency: |
7.5 MHz - 67.5MHz |
| Physical Rate: |
700 Mbps |
| Working Mode: |
Csma/Ca |
| Ethernet Port: |
4 * RJ45 |
| Coaxial Cable Port: |
2*F-Type |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
Internet |
| Function: |
Receive Data Signal |
