EOC system

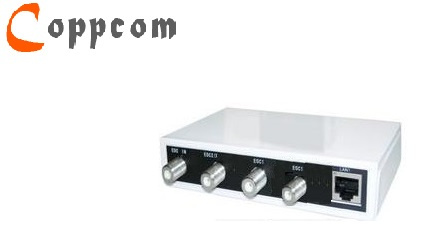

Cop3001 EOC (Low power)

EoC system based on advanced modulation technology to modulate data signal to lower than 30MHz to transmit data over coax cable.
Features
- Low power:  <1.1W
- Operating Temperature: -40° C ~ 70° C
- IEEE 1901 and HomePlug AV compliant
- Supports OFDM 4096/1024/256/64/16/8-QAM, QPSK,BPSK and ROBO Modulation Schemes
- 128-bit AES Link Encryption with key management
- Windowed OFDM with noise mitigation based on patented line synchronization techniques
improves data integrity in noisy conditions
- Dynamic channel adaptation and channel estimation
- Advanced Turbo Code Forward Error Correction
- Priority-based CSMA/CA channel access schemes maximize efficiency and throughput
- Integrated Quality of Service (QoS) Enhancements
- Hardware Packet Classifiers for ToS, CoS and IP Port Number
- Supports IGMP managed multicast sessions
- Physical Layer Bandwidth: 200Mbps
- Throughput: Exclusive 80Mbps
