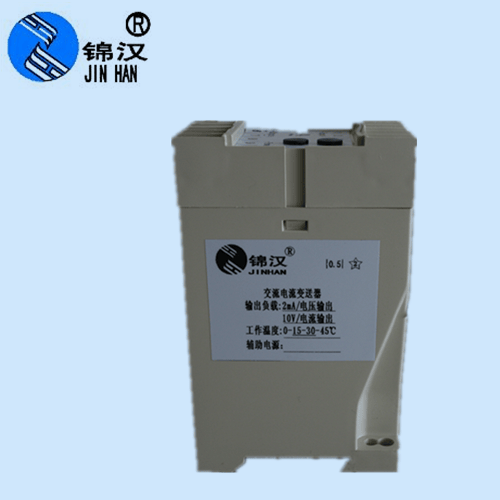

Prod Model: |
EPA-An-Fn-Pn-On |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Manufacturers: |
Haiyan Jinhan Electronic Technology Co.,Ltd |
MOQ: |
1 Piece |
Production Process: |
Integration |
Shell Material: |
Beige Plastic-Shell |
Dimension: |
34.5*75*113 |
Installation: |
35mm DIN Sliding-Way |
N.W: |
About 0.5kg |
Freight: |
by Air |
Export Markets: |
Global |
Delivery Time: |
Depend on Quantity |
Product Description
Technical Specification
Reference Standard | GB/T 13850-1998(IEC688-1992) |
Accuracy | |
Long Term stability | ≤±0.5%/year.No accumulation error |
Temperature influence | ≤ 100ppm/oC |
Response Time | <400ms |
Output Ripple | <1.0%(peak-peak value) |
Input burden | Current less 0.2VA;voltage less 0.1VA |
Frequency | Nominal frequency ±10% |
Maximum output load | Current output Max10V pressure drop |
Auxiliary power | Ratedvoltage80%-120%,rated current 90%-110% |
Auxiliary load effect | <± 0.2% |
Allow excessive input | Current 2rate continuous 10rate 20 secs voltageMax 2ratecontinuous |
Dielectric strength | Input /output /power/between the crust 2KV AC 1 minIEC866 |
Impact test | ANSIC37.90a/1973,IEC255-4 (5kV1.2/50us PulsedVoltage) |
Calibration amplitude | Full scale least±3%,zero least±1% |
Magnetic field effect | 0.4KA/m magnetic field strength change <0.05% |
Operating condition | Temperature -10~55oC relative humidity≤95%RHnoncondensing |
Storage condition | Temperature -40~70oC relative humidity ≤95% RHnoncondensing |
Haiyan Jinhan Electronic Technology CO.,LTD
The model of this series is shown in the following table :Product | Model No. | Swap model |
AC current transducer(1 unit of avg. to rms conversion) | GPA | EPA |
AC current transducer(1 unit of avg. to rms conversion) | GPV | EPV |
AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPA2 | EPA2 |
AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPV2 | EPV2 |
AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPAX2 | EPAX2 |
AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPVX2 | EPVX2 |
AC current transducer(1 unit of avg. to rms self-powered) | GPAS | EPAS |
AC current transducer(1 unit of avg. to rms self-powered) | GPVS | EPVS |
AC current transducer(3 unit of avg. to rms self-powered) | GPAXS | EPAXS |
AC current transducer(3 unit of avg. to rms self-powered) | GPVXS | EPVXS |
AC current transducer(TRMS conversion ) | GPAR | EPAR |
AC current transducer(TRMS conversion ) | GPVR | EPVR |
AC current transducer(2 output) | GPAT | EPAT |
AC current transducer(2 output) | GPVT | EPVT |
AC current transducer(3 unit of avg. to rms conversion) | GPAX | EPAX |
AC current transducer(3 unit of avg. to rms conversion) | GPVX | EPVX |
3 phase 3 wire reactive power transducer | GPK201 | EPK201 |
3 phase 3 wire reactive power transducer(2 output) | GPKT201 | EPKT201 |
3 phase 3 wire Active power&reactive power transducer | GPWK201 | EPWK201 |
3 phase 3 wire Active power transducer | GPKT201 | EPKT201 |
3 phase 3 wire Active power transducer(2 output) | GPWT201 | EPWT201 |
3 phase 3 wire wate&var¤t transducer | GPWKA201 | EPWKA201 |
3 phase 4 wire reactive power transducer | GPK301 | EPK301 |
3 phase 4 wire reactive power transducer(2 output) | GPKT301 | EPKT301 |
3 phase 4 wire Active power&reactive power transducer | GPWK301 | EPWK301 |
3 phase 4 wire Active power transducer | GPKT301 | EPKT301 |
3 phase 4 wire Active power transducer(2 output) | GPWT301 | EPWT301 |
3 phase 4 wire wate&var¤t transducer | GPWKA301 | EPWKA301 |
3 phase 3 wire Active energy transmitter | GPWH201 | EPWH201 |
3 phase 3 wire Reactive energy transmitter | GPKH201 | EPKH201 |
3 phase 3 wire Active power+energy transducer | GPWWH201 | EPWWH201 |
3 phase 3 wire Reactive power+energy transducer | GPKKH201 | EPKKH201 |
3 phase 4 wire Active energy transduce | GPWH301 | EPWH301 |
3 phase 4 wire Reactive energy transduce | GPKH301 | EPKH301 |
3 phase 4 wire Active power+energy transducer | GPWWH301 | EPWWH301 |
3 phase 4 wire Reactive power+energy transducer | GPKKH301 | EPKKH301 |
Frequency transducer | GPF | EPF |
Power factor transducers | GPPF | EPPF |
Dc isolation transmitter | GPD | EPD |
Dual output dc isolation transmitter | GPDT | EPDT |
Power controller | GPS | EPS |
