Epoxy Glass Laminated Sheet (G11)

Name: Epoxy Glass Laminated Sheet (G11)
Brand: all-electronics-online.com
SKU: 691749502
Availability: InStock
Rating: 4.9 (81 reviews)

Price:	US $ 5.5kilogram
Trade Terms:	FOB,CFR,CIF
Min Order:	1000kilogram
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Introduction:
In today's G11 laminate sheet is made up with a hight temperature epoxy making up the bulk of heavy sheet and then using finer glass cloth with high temperature resistant epoxy giving a high performance outer finish.
Today what is called FR5 is the Brominated flame retardant version of G 11. The FR 5 material can usually be used where G11 material is specified, however G11 Laminate should not be used where FR-5 is specified.

Applications:
High performance G11 for your extremely strict demand. It has Comparative Tracking Index (CTI) 600V, Halogen-free, Flame-resistance, and H-class heart-resistant, widely used in harsh conditions (high humidity, dusty, filthy).

Advantages:
*Temperture Index: 180 Degree Celsius
*Tracking Index(CTI) 600V
*Halogen-free
*Flame-resistance
*H-class heart-resistant

Specifications:

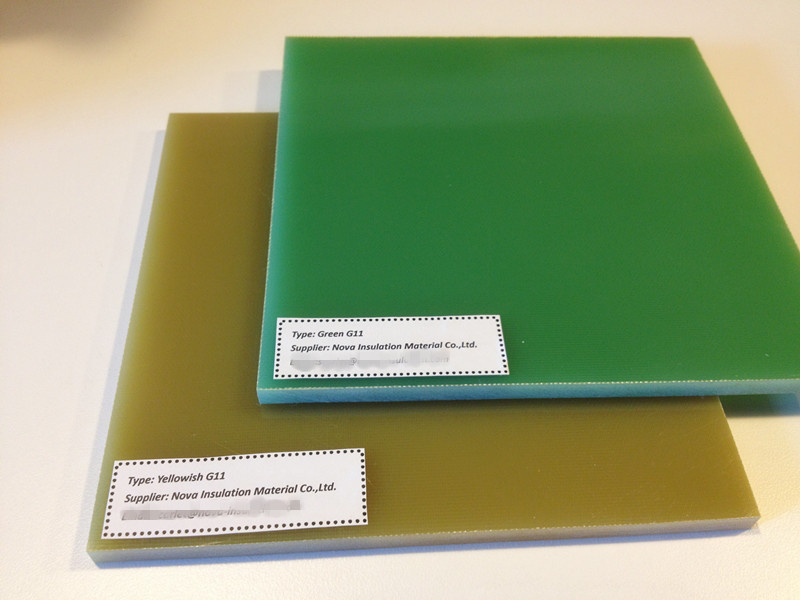

1) Grade: G11
2) Color: Green
3) Thickness range: 0.1mm~200mm
4) Sheet size: 1020*1220mm; 1220*2040mm
5) Min. Order Quantity: 1, 000kgs in a lot

\

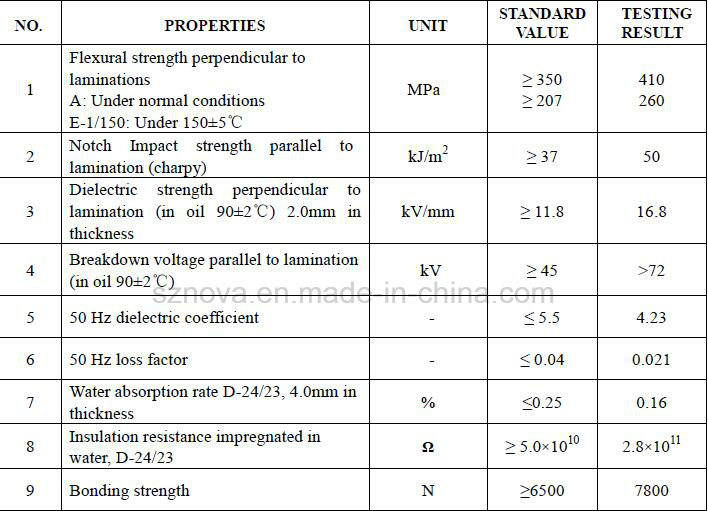

Technical Data sheet - G11

About Us:

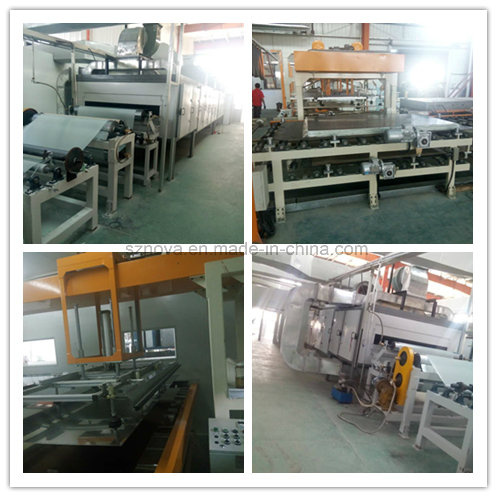

Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Epoxy glass fabric laminated products with over 10 years experience, including G10/FR4, G11/FR5 and so on.

We can serve you not only customize the Epoxy Glass Fabric Laminated Sheet G11 (F Class) products for you, but also very experienced design concept, strong program management system, well trained employees for Epoxy Glass Fabric making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.

We sincerely hope to be your long-term partner to develop new markets together,and create brilliant!

FAQ
1.Q:Are you factory?
A:We are manufacturer with export license.
2.Q:How about the delivery time?
  A:Usually 7-15days,also depends on quantity.
3.Q:Can I get free sample for check?
  A:Normally small size can be provided for free and customers just need to take charge for express fee.
4.Q:Can you give me a discount price?
  A:It depends on quantity,the larger quantity is,the more discount you can get.

Prod Model:	Epoxy Glass Fabric Laminated sheets (G11/FR5)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	10201220mm; 12202040mm
Thickness Range:	0.1mm~200mm
Min. Order Quantity:	500 Kgs in a Lot
Packaging Details:	500-1000kgs Per Pallet or as Required
Lead Time:	7-15 Days After Confirmed
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	F 155
Maximum Voltage:	20KV~100KV
Certification:	RoHS

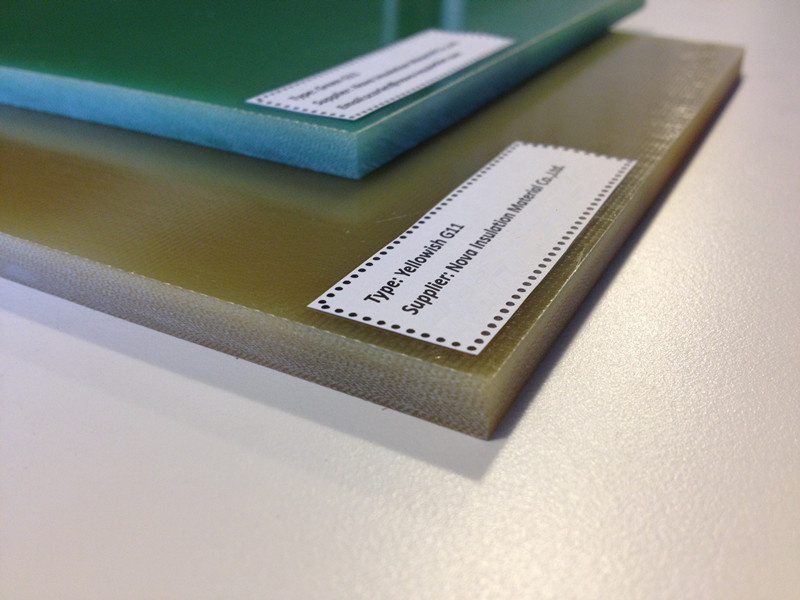

Color:	Green, Yellow
Brand:	Nova

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
