1. 1. Universal information:
| Place of Origin: | Shenzhen China |
| Brand Name: | GPI |
| Model Number: | GPI-MS-001 |
| Certification: | ISO9001:2008, SGS,Rohs |
2. 1. Business Terms:
| Minimum Order Quantity: | 50 pieces |
| Price: | USD 0.6~15 |
| Packaging Details: | Inner packing:1pc/PP bag,PE bag,gift box Outer packing: exporter standard carton, or according to customer request |
| Sample Delivery Time: | Around business days after deposit received |
| Production Delivery time | 14-18 working days after PO confirming. |
| Payment Method: | T/T/ western union/ paypal or L/C |
| Payment Terms: | Sample and tooling:100% payment before order
Mass Production:30% downpayment,70% balance before shipment |
| Supply Ability: | | 100,000 Piece/Pieces per Month |
|
3. 1. Description:

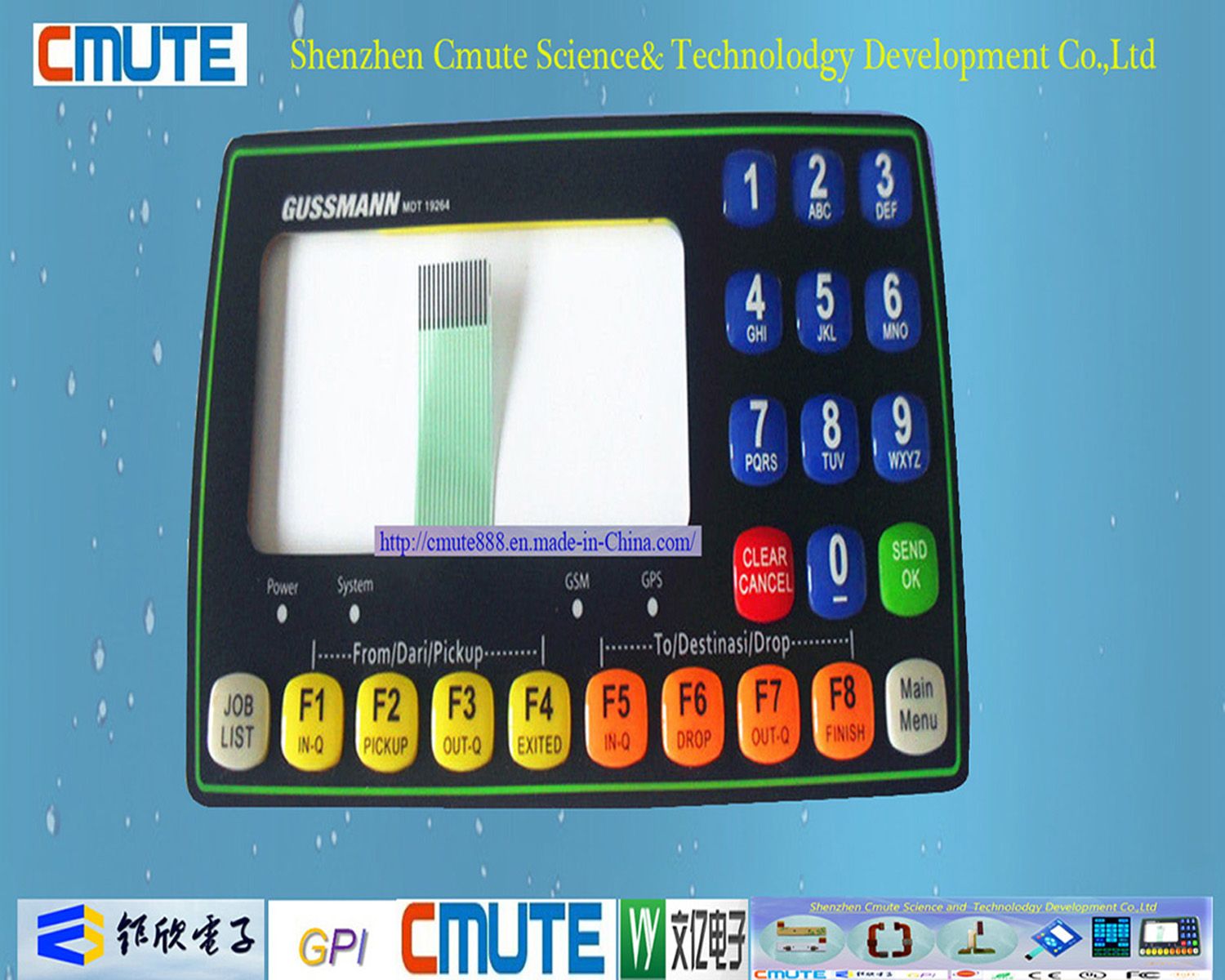

Epoxy key silk screen print Membrane Keypad
1. SUS301 metal dome, diameter 10mm, dimple as per request
2. Autotype F150 overlay or any other PC or PET overlay
3. Crown adhesive spacer
4. Big and clear LCD window
5. Embossed keys
6. Muti-keys with metal dome
7. 180-320g touch force
8. PET 0.125 or 0.1mm circuit
9. 3M series backadhesive or as per request
10. Molex connector or other brand available
11. silk screen print or digital print
4. 1. Product Characters
1) Custom made OEM/ODM
2) Rasing available
3) Membrane switch faceplate
4) Withstand millions of cycles
5) perfect exterior
6) metal dome or silicone keypad is also available
5. 1. Our Advantage:
1) Group Financial support
2) Strong R&D capability
3) Low cost and competitive price
4) Quick delivery
5) 100% computer test and inspection before shipment
6) One stop purchase available for customer
7) Whole solution design available
8) All Products provide one year quality warranty
6. 1. Applications:
*Medical Equipment
* Telecommunications apparatus
* Smart phone systems
* Household appliances
* Security systems
* Various industry control keypad panel
7. 1. Technical Data:
| wire lead resistance: | <1Ω/CM | Life time: | >1 Million times |
| rated current: | 25-100mA,0~30V DC | Operation Temperature: | -40ºC~70ºC |
| Rated Voltage: | <50V, DC | Operation Humidity: | at40ºC,<98%RH |
| Insulation resistance: | <100MΩ,250V DC | Dome springback time: | <5 msec |
| Switch travel: | Flat Type 0.05-0.3mm | Base Material voltage withstand: | 1500 V DC |
| tactile type:0.3-1.5mm | Tail flexiblility: | any angle within 180 degree |
SZ Cmute Science & Technolodgy development Co., Ltd ( Group member of Ju xin ) is professional company which focus in manufacturing High-precision, High density and High reliable FPC & Membrane circuit and related PCB products, the company is located in DingFeng Science & Technolody park, No. 3 Industrial zone, Luo Tian of Songgang Twon, Baoan District, Shenzhen, Which has convenient transportation.
The company's products are widely used in communication, Audio & Video Products, Digital products, Electronics, Car electronics, Smart control equipments, Micro-Motor, Therapy Products, Automatic office equipment and many fields.

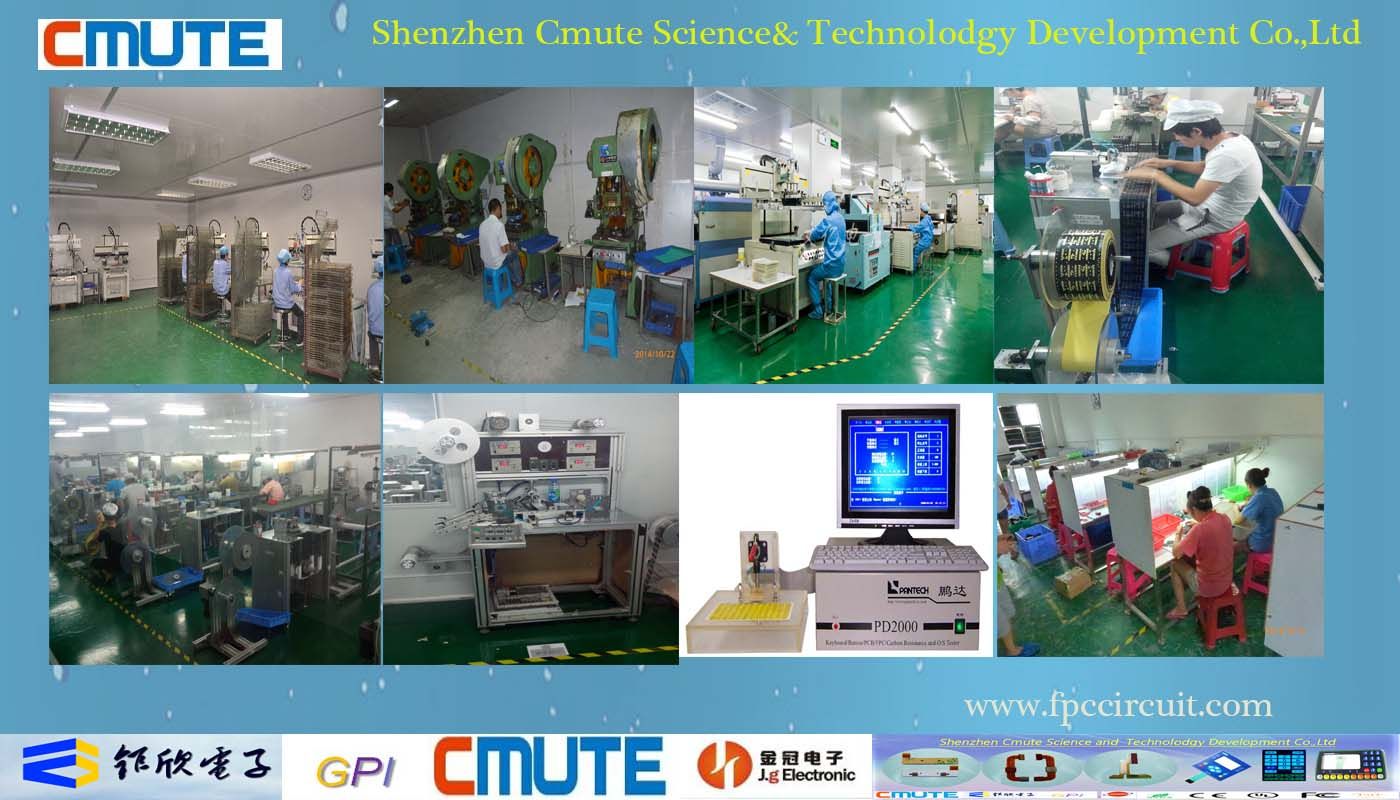

Cmute has the modern standard and high clearance facility with over 6000 square meters, which equipped well with advanced automatic production equipments and high precision test instruments.
We are an ISO9001: 2008 certified company, we provide our customers with our high precision & top quality products, also our quick response and high efficiency services has won many praise from worldwide clients.
Our group also have polydome, metal dome and membrane switch and PCB assembly factories in Dongguan & Shenzhen, so we can provide our customers with one stop shopping with competitive price.
At present, We have successful cooperation with Philips, Coolpad, Gionee, Malata and many famous brands.
We'll continuously improve our quality and services, Cmute, your best partner!
