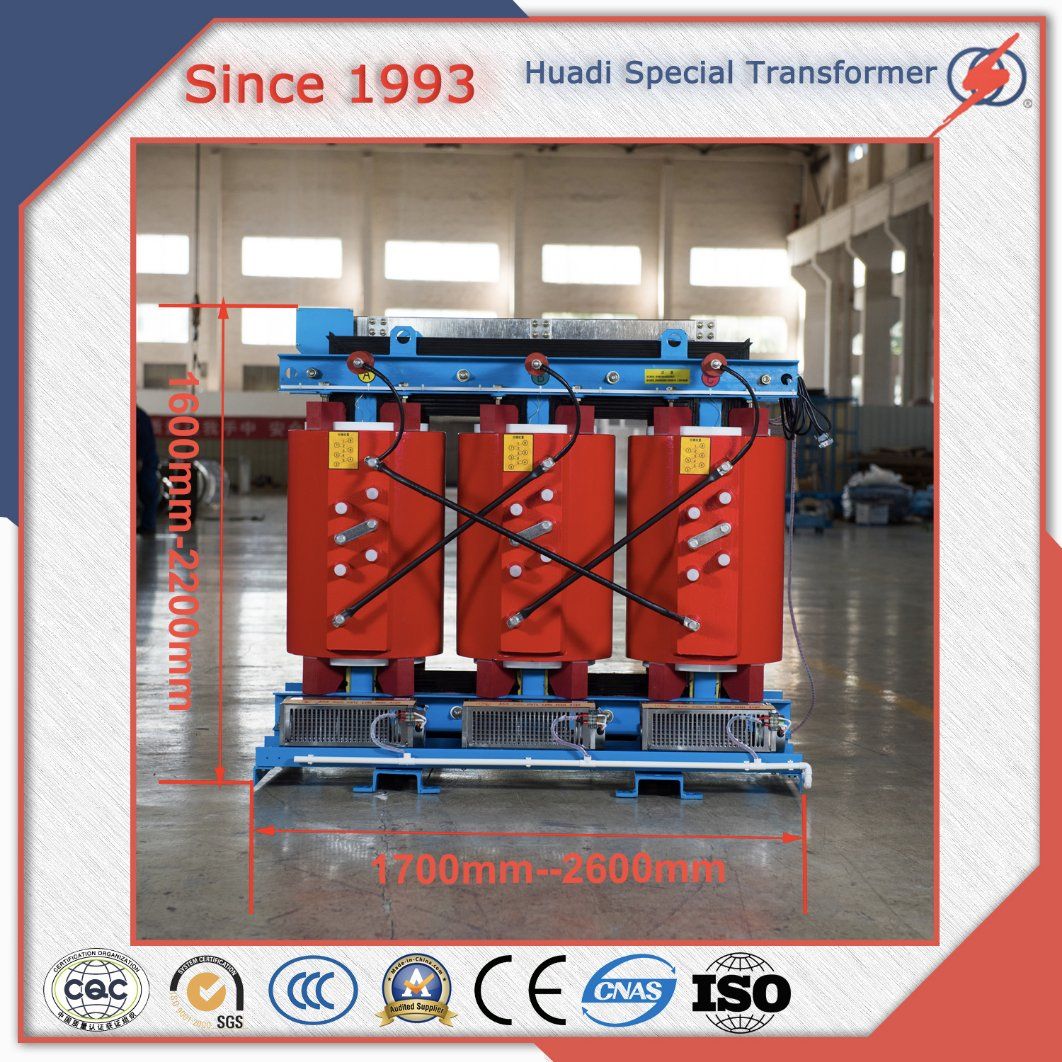

Epoxy Resin Cast 10kv 30-2500kVA 3 Phase Power Frequency Distribution Dry Type Transformer Dyn11 Yyn0

Name: Epoxy Resin Cast 10kv 30-2500kVA 3 Phase Power Frequency Distribution Dry Type Transformer Dyn11 Yyn0
Brand: all-electronics-online.com
SKU: 733054962
Availability: InStock
Rating: 4.5 (75 reviews)

Price:	US $ 5000-100000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Specifications and Dimensions

Rated high voltage	10(10.5,11,6,6.3,6.6)kV	Connection symbol	Yyn0 Dyn11
Rated low voltage	0.4kV	Insulation level	LI75AC35/AC3

Type	P₀	P_k	U_k	I₀	LP	GT	boundary dimension(mm)				Shell size(mm)
Type	(W)	(W)	(%)	(%)	dB(A)	kg	long	wide	high	gauge	long	wide	high
SC10-30/10	190	705	4	2.0	46	380	890	560	750	550	1200	1100	1100
SC10-50/10	270	995		2.0	46	450	890	650	820	550	1200	1100	1100
SC10-80/10	365	1380		1.2	46	660	1000	720	870	550	1300	1150	1150
SC10-100/10	400	1575		1.2	46	750	1000	720	935	550	1300	1150	1200
SC10-125/10	470	1845		1.0	47	960	1140	720	1065	550	1450	1150	1400
SC10-160/10	540	2125		1.0	47	1080	1140	720	1180	550	1450	1150	1500
SC10-200/10	620	2525		1.0	47	1230	1210	870	1165	660	1550	1300	1500
SC10-250/10	720	2755		1.0	49	1360	1210	870	1245	660	1550	1300	1600
SCB10-315/10	880	3470	4	0.8	49	1680	1300	870	1170	660	1650	1300	1600
SCB10-400/10	970	3990		0.8	50	1780	1340	870	1255	660	1700	1350	1650
SCB10-500/10	1160	4880		0.8	50	1830	1360	1020	1415	820	1700	1400	1700
SCB10-630/10	1340	5875		0.8	50	2130	1420	1020	1430	820	1750	1400	1700
SCB10-630/10	1295	5960	6	0.6	50	2100	1440	1020	1390	820	1750	1400	1700
SCB10-800/10	1520	6955		0.6	50	2450	1500	1020	1430	820	1800	1400	1800
SCB10-1000/10	1765	8130		0.6	51	2950	1640	1020	1465	820	1950	1400	1800
SCB10-1250/10	2085	9690		0.4	51	3420	1700	1020	1585	820	2000	1450	1850
SCB10-1600/10	2440	11730		0.4	52	4170	1820	1070	1655	820	2150	1450	2000
SCB10-2000/10	3320	14450		0.4	52	4950	1910	1070	1785	820	2300	1450	2200
SCB10-2500/10	4000	17170		0.4	52	6750	2140	1070	1990	820	2550	1500	2250

Prod Model:	SC10
Material:	Epoxy Resin
Rate High Voltage:	10-35kv
Rate Low Voltage:	0.4kv
Connection Symbol:	Yyn0, Dyn11
Insulation Level:	Li75AC35/AC3, Li125AC55/AC3, Li170AC70/AC3
Use For:	Industry
Rated Capacity:	30-2500kVA
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer

Changzhou HuaDi Special Transformer Co., Ltd. Was established in 1993. The Company introduced and imported from overseas a complete system of advanced technology and manufacturing process, the most advanced HEDRICH vacuum casting, low-voltage windings, and testing equipment. The superior equipment provides the Company with a reliable guarantee for the mass production of quality products.

Changzhou HuaDi Special Transformer Co., Ltd. Produces various types of special transformers, including dry Amorphous alloy transformer, dry type transformer, amorphous alloy totally-sealing oil-immersed transformer, frequency converter transformer, polycrystalline silicon in transformer, UPS in transformer, earthing transformer, arc extinction coil excitation transformer, preassembled transformer substation, composite transformers and reactor, etc., with cast resin dry-type transformer as the major product. The highest voltage grade is 35kV, and the highest single transformer capacity is up to 20, 000kVA. Amongst these products, the SC(B)10~13 model is the new generation energy saving and environmentally friendly product. It has no-load loss and on-load loss values of 25% and 15% lower than the required standards respectively, and the noise level is lower than the required standards by more than 10dB. The Company's annual production capability reaches 3, 000, 000kVA.
