Epoxy Resin Fiber Glass Laminate Sheet

Name: Epoxy Resin Fiber Glass Laminate Sheet
Brand: all-electronics-online.com
SKU: 836179195
Availability: InStock
Rating: 4.9 (72 reviews)

Price:	US $ 4.7-32/Piece
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Description

FR-4 (or FR4) is a flame resistant material level code,which is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing).
It is most commonly used as an electrical insulator possessing considerable mechanical strength. The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. hese attributes, along with good fabrication characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.

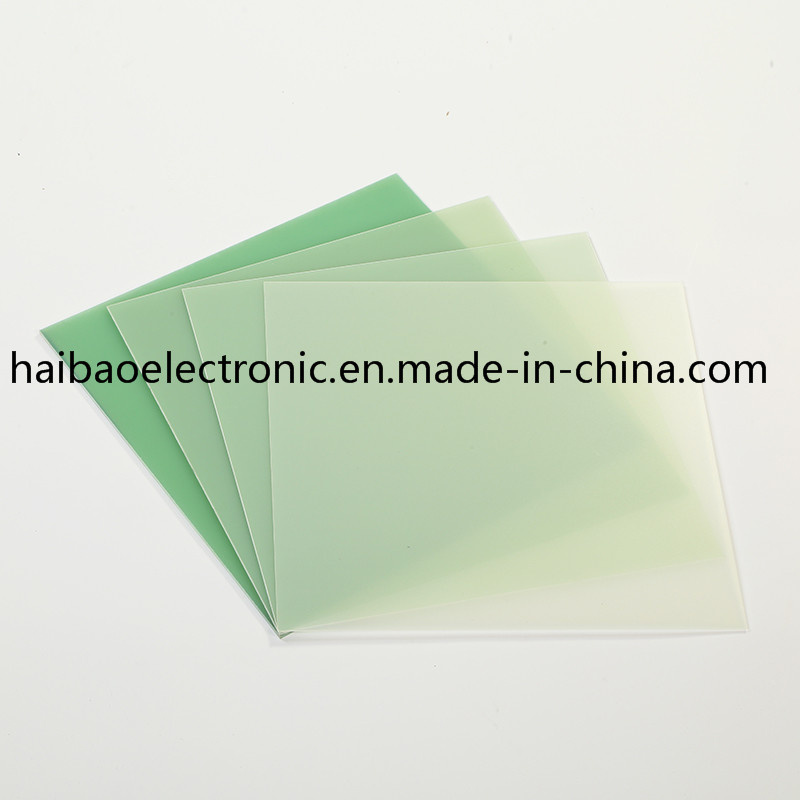

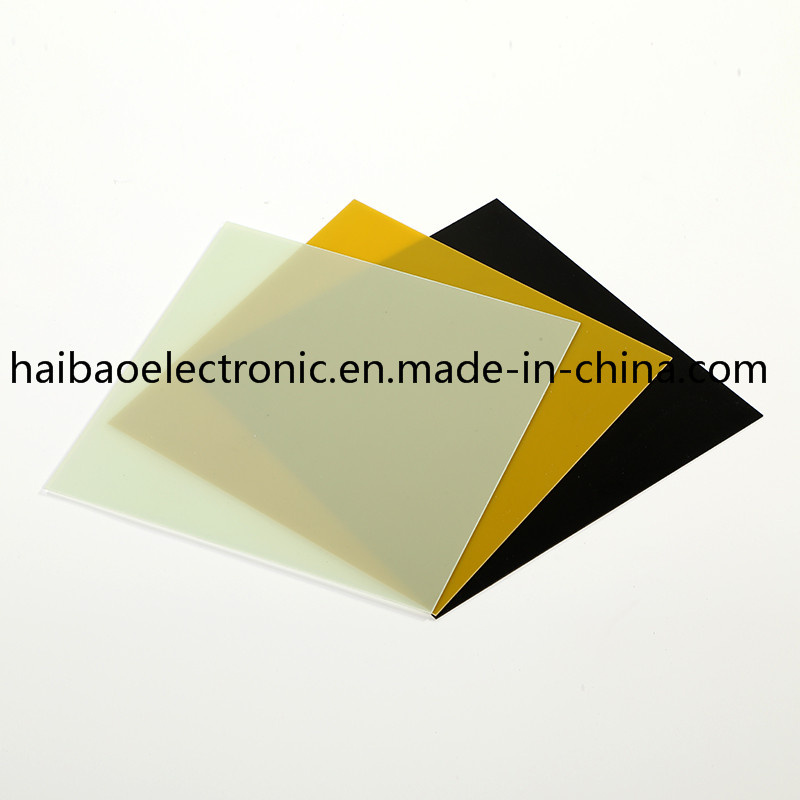

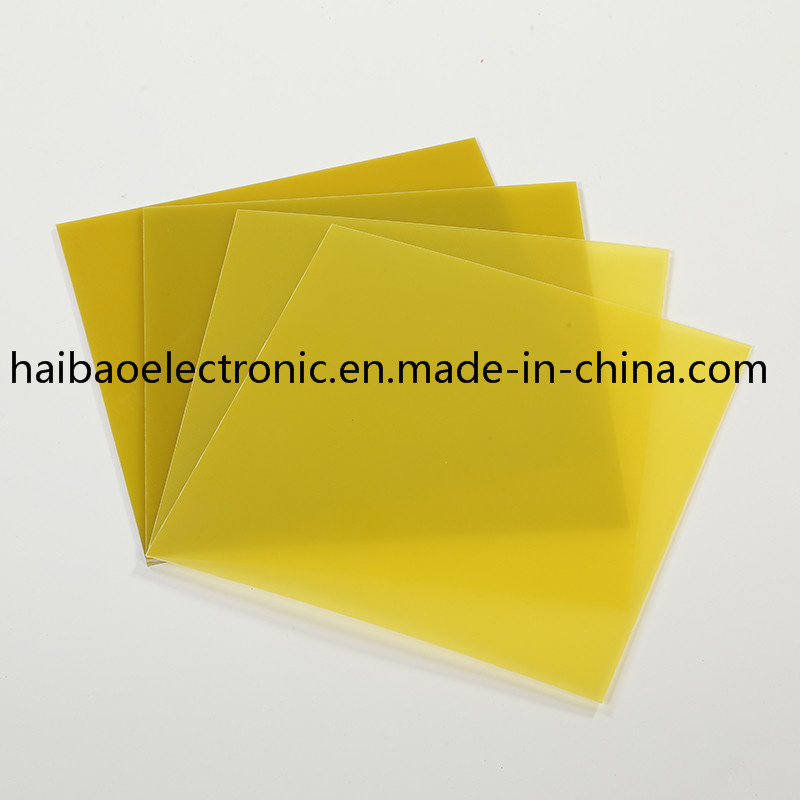

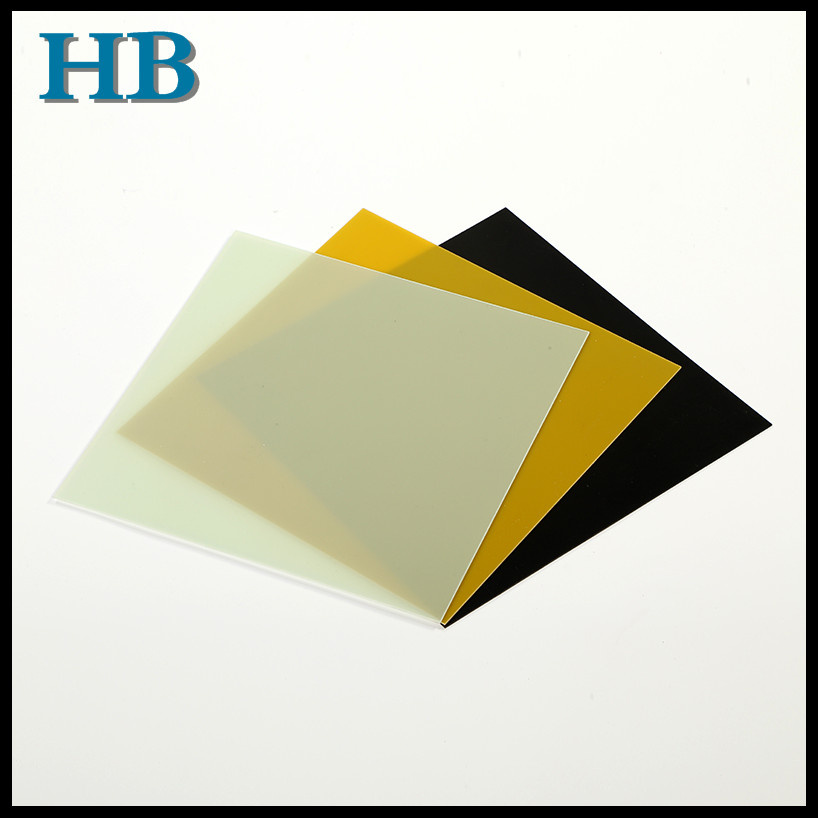

Color:	Natural,Yellow,Black
Size:	36''×48'', 40''×40'', 40''×48'',48''×80'',48''×96'' or as customize
Thickness:	0.1-100mm
Material:	glass fiber cloth,epoxy resin
Surface:	no bubble,pucker,cracking or other defects such as Scratch, indentation, ripple, irregular but some spots is acceptable.
Performance:	High mechanical performance under medium temperature, good electrical performance stability under high temperature, resist to acid and alkali, corrosion resistance.

Photoes:

Company Information

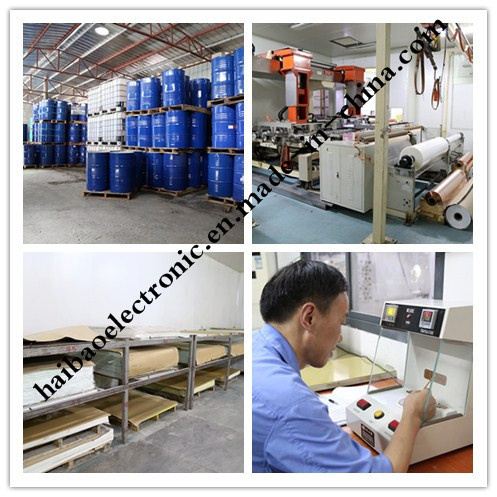

Haibao Electronic Co.,Ltd is established in 2010, located in Lin'An,Hangzhou,Zhejiang Province,which specializes in manufacturing and maching electrical insulation laminates.Our factory have advanced vacuum pressing equipment, Prepreg glue curing machine and standard dust-free working environment with 20 years professional experience.

FAQ
1.Q:Are you factory?
A:We are manufacturer with export license.
2.Q:How about the delivery time?
  A:Usually 7-15days,also depends on quantity.
3.Q:Can I get free sample for check?
  A:Normally small size can be provided for free and customers just need to take charge for express fee.
4.Q:Can you give me a discount price?
  A:It depends on quantity,the larger quantity is,the more discount you can get.

Contact Us

If you have any interests or questions,please feel free to contact us.

Prod Model:	FR4/G10/G11
Thickness:	0.1-100mm
Sample:	Available
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV

Haibao Electronic Co., Ltd located in beaytiful city Hangzhou, which specialized in manufacturing and machining Electrical Insulation Laminates since 2010. The factory occupied an ares around 6, 000 square meters.

The products are most commonly used as an electrical insulator possessing considerable mechanical strength. The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. These attributes, along with good fabrication characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.

Our factory have advanced vacuum pressing equipment, curing gluing machine and standard dust-free working environment with 20 years professional experience. In order to improve the efficiency and let customers to use products earlier, our factory install new equipment to increase output.

Our main products: Electrical insulation board, epoxy glass fiber sheet, copper clad laminate, anti-static plate, etc. We will try our best to satisfy your need and looking forward to an opportunity to establish cooperation relationship with you.
