Ethanol Gas Analyzer Acohol Analyser with Semiconductor Sensor (C2H6O)
| Price: |
US $ 1293.48-1595.35/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |

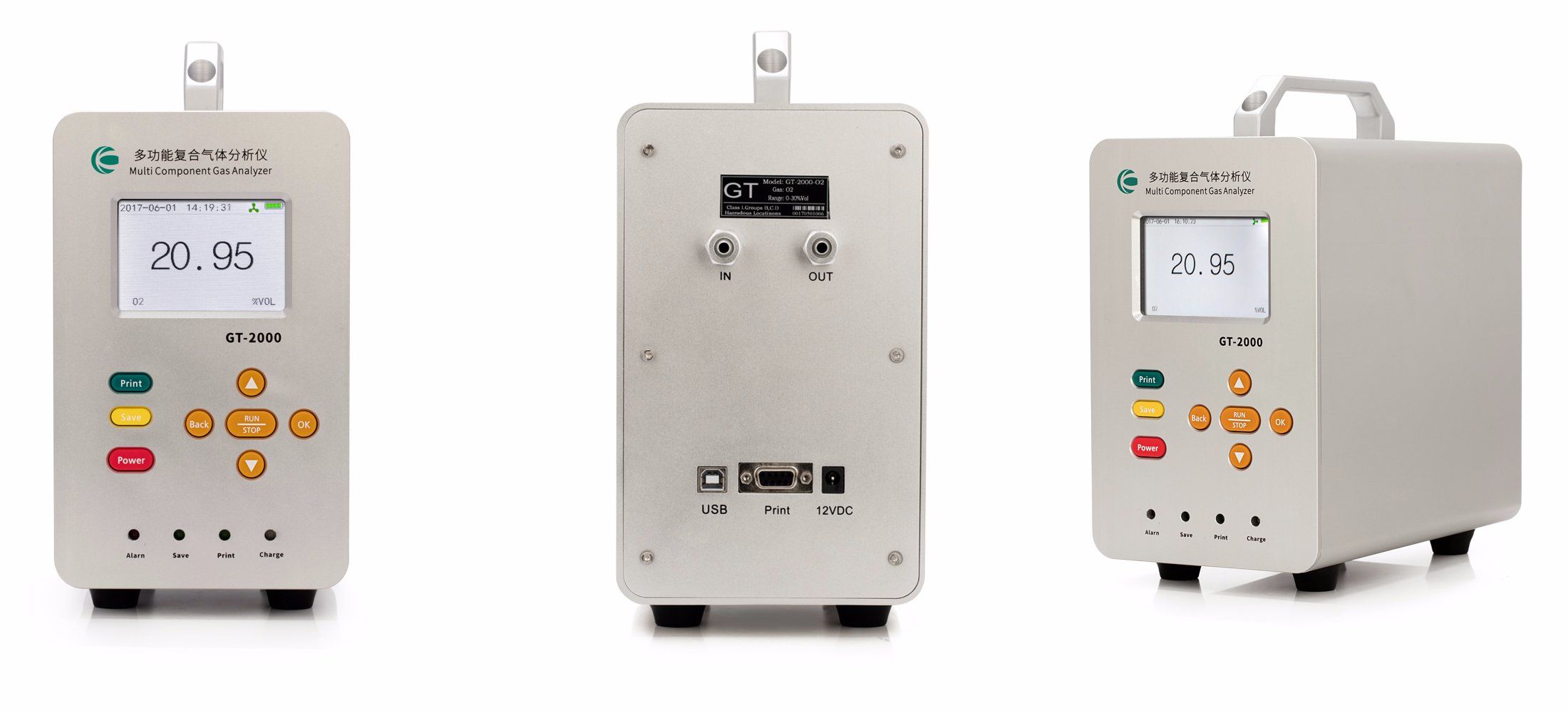

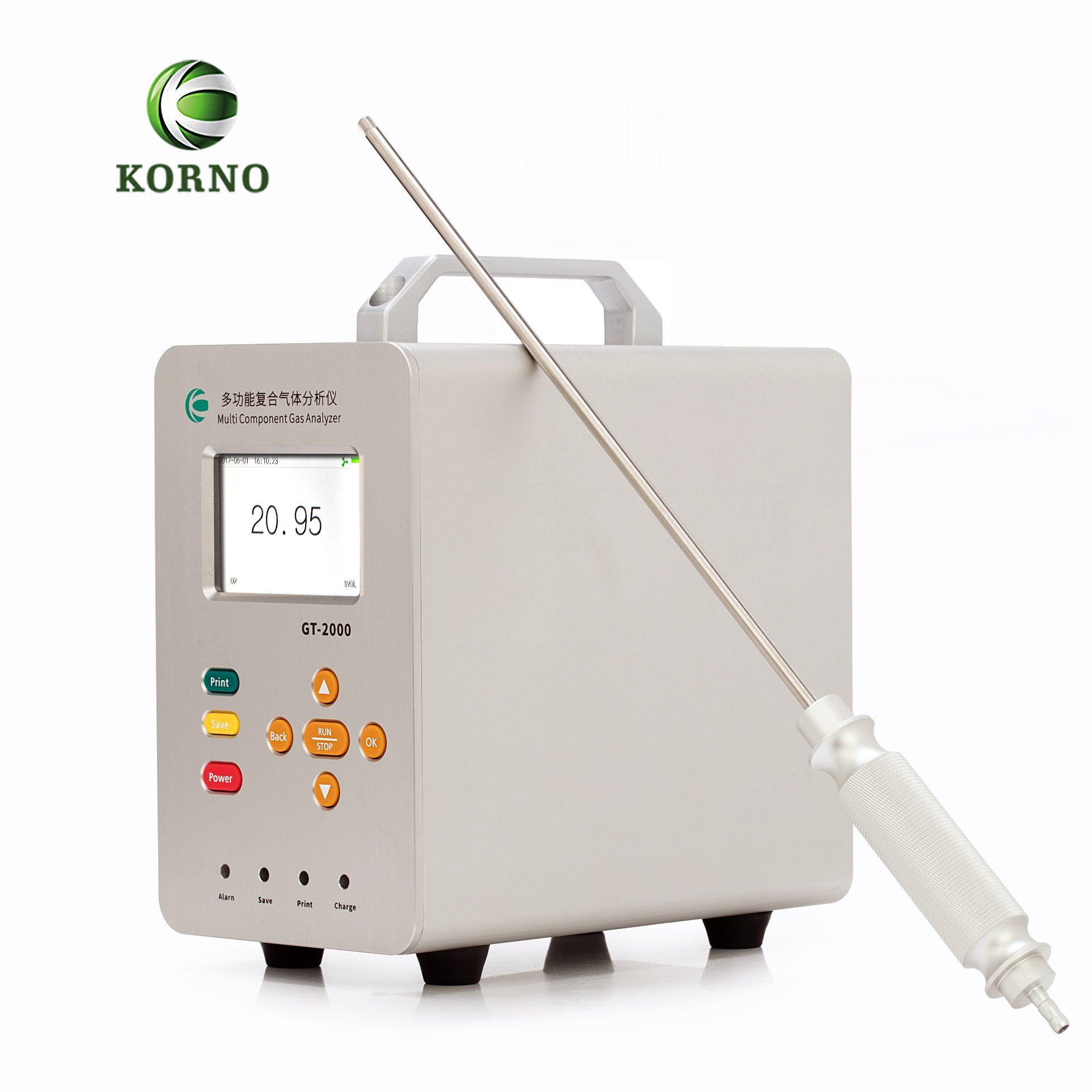

1) Description: GT-2000 multifunctional gas analyzer is portable gas analyzer.This powerful instrument is capable of simultaneously monitoring up to 6 gas and all kinds of sensors are acceptable.
With the most advance nanometer semiconductor technology ,ultra low power 32bit microprocessor and 24bit ADC data acquisition chip,GT-2000 multifunctional gas analyzer are famous of outstanding accuracy and high reliability and repeatability, which makes it maintain a leading position in domestic.
2) Features:1.Monitor up to 6 gases simultaneously,user can combine different sensor according to their need
2.Three concentration units are available PPM,%VOL,mg/m3.
3.Up to 100,000 group data can be storage.
4.Temperature and humidity detection is available.
5.Four operation modes are optional:Detection mode,Storage mode,Display mode,Pumping mode.
6.All software automatic calibration, each kind of sensor can calibrate up to 6 target concentration values.
7.Chinese and English operation model are available,user-friendly.3) Specifications:| Product type: | Portable,C2H6O Ethanol |
| Detection Range: | 0-1%VOL |
| Resolution: | 0.01%VOL |
| Scalable gas sensor : | User can customize up to 6 gas sensors in any combination,please refer to the sensor parameters |
| Temperature and humidity: | Temperature detection range:-40 ~ 120ºC
Humidity detection range:0-100%RH |
Detection pattern:
| Pumping,the flow rate is adjustable. |
| Detection Accuracy: | ≤±3%F.S | Linearity Error: | ≤±1%F.S |
| Reaction Time: | ≤20 S(T90) | Zero drift: | ≤±1%(F.S/Year) |
| Detection Method: | Real-time detection mode and timing detection mode ,Cycle detection mode can be switch freely |
| Storage Method: | Automatically saving and manually saving is available,
Up to 100,000 group data ,user can view history data on the display. |
| Explosion Proof Sign: | Exdll CT4 (IA) | Shell Case material: | ABS+PC |
| IP rating: | IP66 | Operating Temperature: | -30 ~ 60ºC(-22~144ºF) |
| Power: | 6000mA high capacity polymer rechargeable battery | Operating Humidity: | ≤90%RH,Non-condensing |
| Dimensions / Weight: | 255*13*255 mm(L×W×H)
3.3 Kg(net weight) | Operating Pressure: | -20Kpa ~ 100Kpa |
| Standard Accessories: | -Internal dust filter
-Portable aluminum Case
-User manual
-Certification
-USB charger+Data cable
-Sampling handle(stainless steel ,approx 60cm)&hose(1m) |
| Optional Accessories: | -Micro printer&connected cable
-Wireless transmitter&wireless receiver
-Vapor filter(external)
-temperature and humidity sensor
|
4) Contact Us:
| Prod Model: |
GT2000-C2H6O |
| N.W: |
3.3kg |
| G.W: |
6.88kg |
| Detection Range: |
0-5%Vol |
| Screen Size: |
3.5inch |
| Explosion Proof Sign: |
Exdll CT4 (Ia) |
| IP Rating: |
IP66 |
| Power: |
6000mA High Capacity Polymer Rechargeable Battery |
| Sampling: |
Pumping,Build-in Pump |
| Storage: |
Large Data Logger(100,000 Groups) |
| Alarm Type: |
Sound and Light Alarm |
| Gas: |
C2h6o |
| Type: |
Semiconductor |
Shenzhen Korno Import& Export Co., Ltd is one of the top gas and dust particle detector manufacturer in China, with more than 10 years research and production experience. Our products mainly include Handheld Gas Detector, Portable Gas Detector, Online Gas Detector, Controller, Gas Pretreatment System ect. And we have passed ISO9001: 2015, ISO14001: 2015, OHSAS: 2007, CMC and Explosion-proof certification for our products.
We have associated factory named Shenzhen Korno Electornic Technology Co., Ltd, the factory was established in 2008 with 45 employees and occupies an area of more than 1000 square meters
We have our own R&D departments, processing plants, assembly plants, after-sale technical support departments, domestic sales, overseas sales departments, etc.
The company has advanced production equipment and testing instruments, excellent marketing team and partners both at home and abroad, perfect management of the product market development and product after-sales service.
Our main market is Asia, Europe and America, more than 30 countries.
Our customers are: Mordoch University, HUANGKUANG University, Humboldt University Berlin, S. P. Refinery. Co., Ltd, China National Petroleum Corporation, etc.
