EOC is deployed in the existing CATV HFC network to carry out internet and CATV bidirectional networking reconstruction. It consist of master and slave. EOC Master is usually resided at optical node. & EOC Slave is resided at subscribers' home.

*** when you design your Epon + EOC Solutiion, freely contact us the Aera range, users quantities, technical requirements, we custom the most specialized matching products for you.

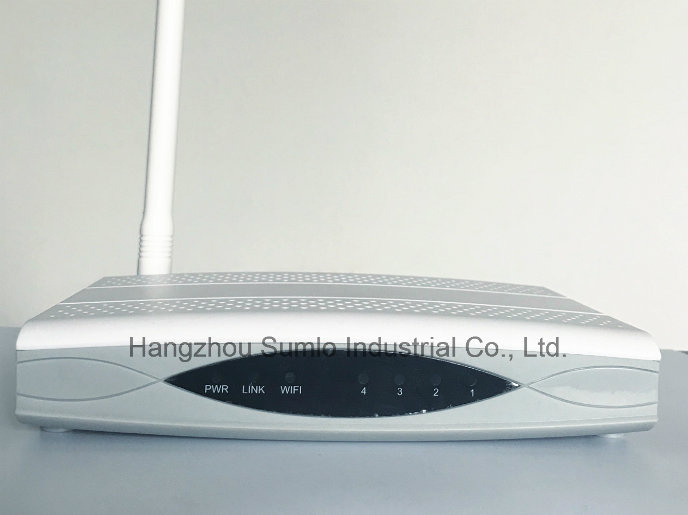

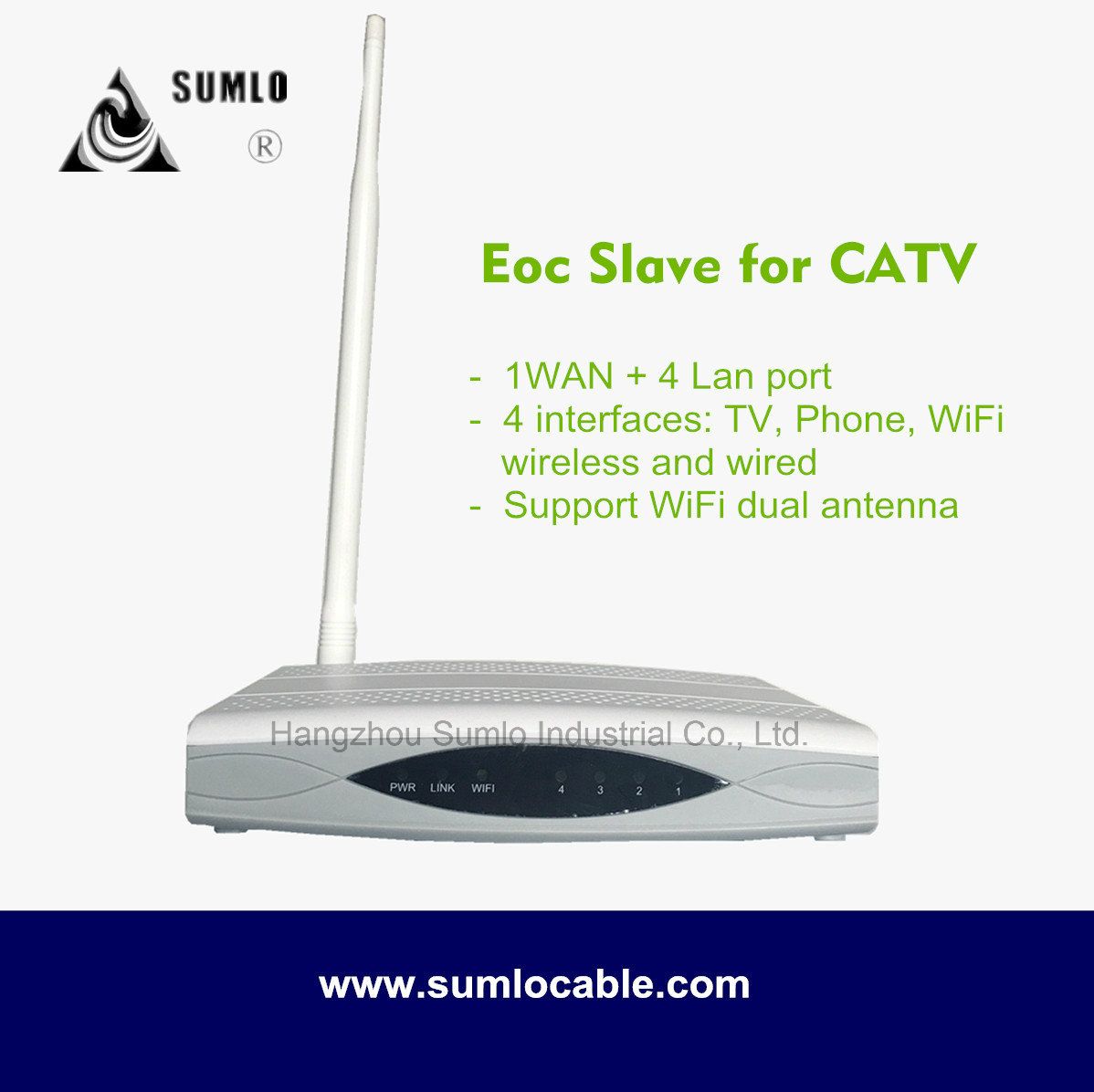

Ethernet Over Coax EOC Slave Wifi optional for CATV

1. Meet IEEE HomePlug AV, 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.3, IEEE802.3u;

2. EOC coaxial cable WAN access, provide four interfaces: TV, PHONE, WiFi wireless and wired; support CSMA/CA, CSMA/CD, TCP/IP,

PPPoE, DHCP, ICMP and NAT protocols;

3. Provide 1 WAN port and 4 LAN ports (10/100M adaptive), support port auto MDI/MDIX;

4. Provide two working modes: Bridge Mode and Routing Mode;

5. Support Quality of Service (QoS)‐802.11e;

6. Support remote and Web management, full Chinese configuration interface;

7. Support multi-SSID function;

8. Support NAT/NAPT IP share, WAN supported protocols: PPPoE/Static IP/PPTP/DHCP;

9. Provide stable transmission up to 150Mbps;

10. Support virtual server and DMZ host;

11. Support 128 bit WEP and the newest wireless security standards such as WPA-PSK and WPA2-PSK;

12. Support UPnP function and DDNS function;

13. Support IP filtering, port filtering and MAC address filtering;

14. Built-in DHCP server, built-in firewall to prevent DoS attack;

15. Provide system security log and traffic statistics function;

16. Provide Web management page reset, and support online software upgrades;

17. WiFi support 3dBi high-gain omnidirectional antenna;

18. External DC12V 1A power adapter.

Prod Model:	EOC-S-701W C4
Working Frequency:	7.5-65MHz
Frequency Range:	2.4~2.4835GHz
WiFi:	Optional
Type:	CATV（Cable Television）Equipment
Function:	Cable Modem
Certification:	RoHS
Condition:	New

Brief: SUMLO CABLE - CATV AND MATV COAXIAL CABLE

Sumlo Cable supplies wires and cables, predominantly coaxial cable for CATV (Community Antenna Television), MATV (Master Antenna Television), base stations and wireless communication.

We also provide cable for MIL spec, UTP (Unshielded Twisted Pair) cable, OFC (Optical Fiber Conductive) cable, audio cable, power cable, electric cable, etc. Our R&D department can design cable according to customers' requirements. These cables are manufactured by companies including Commscope, Belden and TFC.
Sumlo Cable operates according to the ISO: 9002 quality standard.

COAXIAL CABLE FOR CATV AND MATV
CATV cable, a foamed PE (polyethylene) cable, is a high frequency, low loss cable that is widely used for satellite TV systems. Cable specifications can be designed according to customers' requirements.

Sumlo Cable's stock of HFC (Hybrid Fiber Coaxial) cable for CATV and MATV systems includes drop cable (braiding outer conductor type) and distribution cable (aluminium tube outer conductor type). Drop cables consist of the following types: RG59, RG6, RG7 and RG11. Distribution cables include 500 and 540 serial types.

Sumlo Cable's latest coaxial cable products are the JIS series and RG series cables. These cables are mainly used for video signal transmission from fixed and mobile wireless communication equipment or similar electronic devices.

UK STANDARD COAXIAL CABLE FOR CATV
Sumlo Cable supplies a wide range of UK coaxial cables for broadcast applications. The following is a brief outline of these products.

ANTENNA DOWNLEAD FOR UHF TRANSMITTERS
75ohm coaxial cables are used for the reception of UHF analogue and digital signals broadcast from terrestrial transmitters. The 'c'and 'RF' cable range is designed for use in areas where the signal level ranges from average to strong.

BROAD AND VIDEO COAXIAL CABLES
Sumlo cables offer excellent signal integrity due to narrower electrical tolerances and improved shielding. They include:
Standard video coaxial cables - these screened cables, for use in broadcast installation, are available with PVC or LSZH outer sheaths
Miniature 75ohm coaxial cable - suitable for video signal distribution including RGB type systems, these cables are also available with PVC or LSZH sheaths precision serial digital video coaxial cables

DROP CABLE
Ideal for use in areas where reception levels of UHF signals from terrestrial transmitters are poor, these 75ohm double-screened low loss cables provide an optimum and reliable electrical performance while retaining a low overall diameter for ease of installation. Drop cables are used as the subscriber feeder cable, often connecting to the set top box in DTH, IRS, MATV and CATV systems.

Dual cable versions are designed for use with the twin tuner set top boxes where electrical performance and screening between the cables is critical.

RADIO FREQUENCY CABLE
Single- and double-screened 50ohm and 75ohm coaxial cables are the most popular cables from our wide range of URM and RG type cables.

TRUNK CABLE
75ohm double-screened low loss trunk cables offer an optimum attenuation performance for main trunk / distribution use in IRS (Integrated Reception System), MATV and CATV systems where longer cable runs are required.
