| Prod Model: |
SLT52BG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
24V |
| No Load Speed: |
2520 |
| Rated Torque: |
50 |
| Rated Speed: |
2100rpm |
| Rated Current: |
0.8A |
| Stall Torque: |
250mnm |
| Stall Current: |
3.2A |
| Rotor:La: |
21mm |
| Application: |
Power Tools |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Excited |
| Structure And Working Principle: |
Brushless |
| Brand: |
Slt |
Product Description
1,Voltage:6V-36V
2,No load speed:1000-10000 r/min
3,Rated torque:0.01-0.8Nm
4,Rated speed:3000-8000r/min
5,Rated current:0.5A-20A
6,Environment conditions:-10-40ºC
7,Magnet material:Bonded NdFeB
8,Insulation Class:B
9,OEM and ODM are available for us.

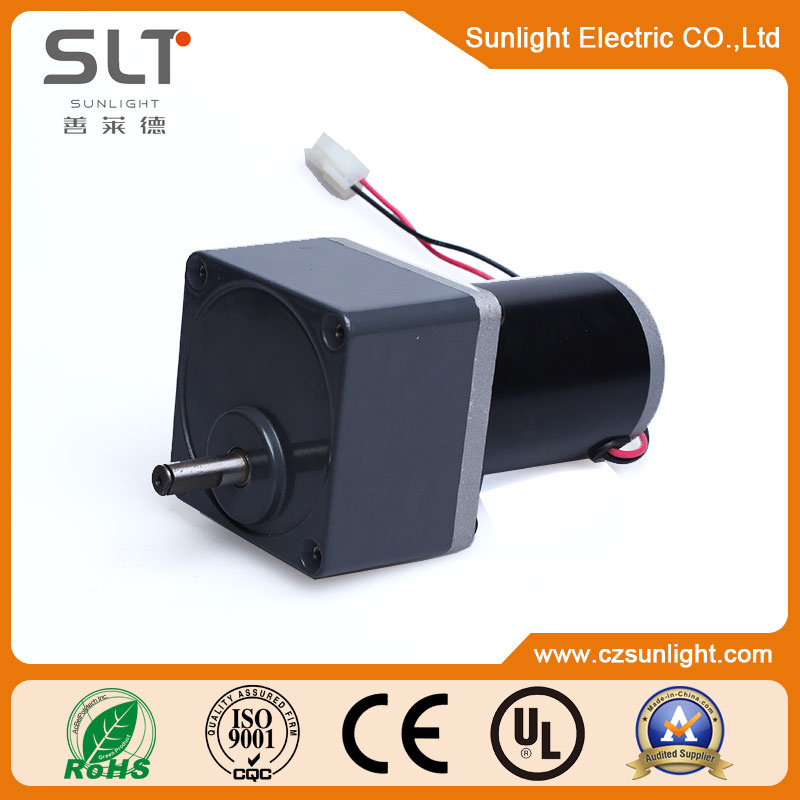

Advantage of excited brushlessed Gear Reducer Motor apply for electric tools :
1,Low interference
2,low noise ,smooth operation
3,long life,low maintenance cost
4. Used widely
Specifications of excited brushlessed Gear Reducer Motor apply for electric tools
| Model | SLT52G01A | SLT52G01B |
| output shaft speed | RPM | 21 |
| Ratio | I | 120 |
| Motor Parameter |
| Voltage | V | 24 |
| No load speed | rpm | 2520 |
| Rated torque | Nm | 50 |
| Rated speed | rpm | 2100 |
| Rated current | A | 0.8 |
| Stall torque | mNm | 250 |
| Stall current | A | 3.2 |
| Rotor inertia | Kgmm² | 14 |
| Black-EMFconstant | V/krpm | 8.5 |
| Torque Constant | Nm/A | 81 |
| Resistance(20ºC) | ohm | 7.95 |
| Weight | Kg | 0.7 |
| Rotor:La | mm | 21 |
Applications of excited brushlessed Gear Reducer Motor apply for electric tools
A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Appliance ( Electric cooker, Electric mop and other products.)
C.Medical equipment and beauty products.
D.Office products (such as printer, scanner......)
E. Other Fields.
About sunlight:
1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)
Contact Sunlight
1,Your client satisfied on the right schedule and quality;
2,You can get good reputation from your market and obtain more orders;
3,Our professional service before and after sale;
4,The reasonable and competitive price;
5,Service is excellent.Any questions from you are welcome and will be replied in 24 hours.
6,Delivery on time
.
Packaging & Shipping
1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required
Name card
Sunlight Motor
Contact.: Catherine Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Website: www.czsunlight.com or www.sunlightmotor.com
Changzhou Sunlight Motor is the subsidiary company of the Jiangsu Woersen Electronics Technology Co., Ltd. It also contains Wenwei tube, Rongda Electronics, Woersen motor.
There are almost two hundred people in this group, including twenty technical engineers, eight R&D engineers. Annual value of production is about 0.16 billion.
The main products are DC motor, brushless DC motor, linear actuator and DC fan.
At present, our products have been exported to the United States, Germany, Britain, Russia, Japan, South Korea and so on. And we have received the high praise from our customers.
Currently, our company has passed ISO9000 and TS16949 certifications. The factory also has been audited by the authority SGS.
We welcome all the global companies to visit our factory and negotiate with us!
Sunlight is a young and dynamic team. Our slogan is " Where there is power supply, there is Sunlight"
We can not only meet our clients` mass production order, but also be flexible to provide the small quantity order for our clients too.
Meanwhile, the professional OEM services could be provided by us according to the customers'requests. The main brushless DC motor's series are: 42BLDC, 57BLDC, 86BLDC 110BLDC motor and so on
The main brush DC motor's series are: 130DC, 365DC, 370DC, 477DC motor and so on;
The main linear actuator's series are: ST01, PT01, YT01 and so on;
The main fan's series are: 16inch, 12inch, and so on
So that, If you give us a chance, Sunlight Motor will not let you disappoint.
