Explosion-Proof 4-20mA/Hart/ Profibus-PA Smart Temperature Controller with PT100/PT1000/K

Name: Explosion-Proof 4-20mA/Hart/ Profibus-PA Smart Temperature Controller with PT100/PT1000/K
Brand: all-electronics-online.com
SKU: 803045585
Availability: InStock
Rating: 4.7 (147 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

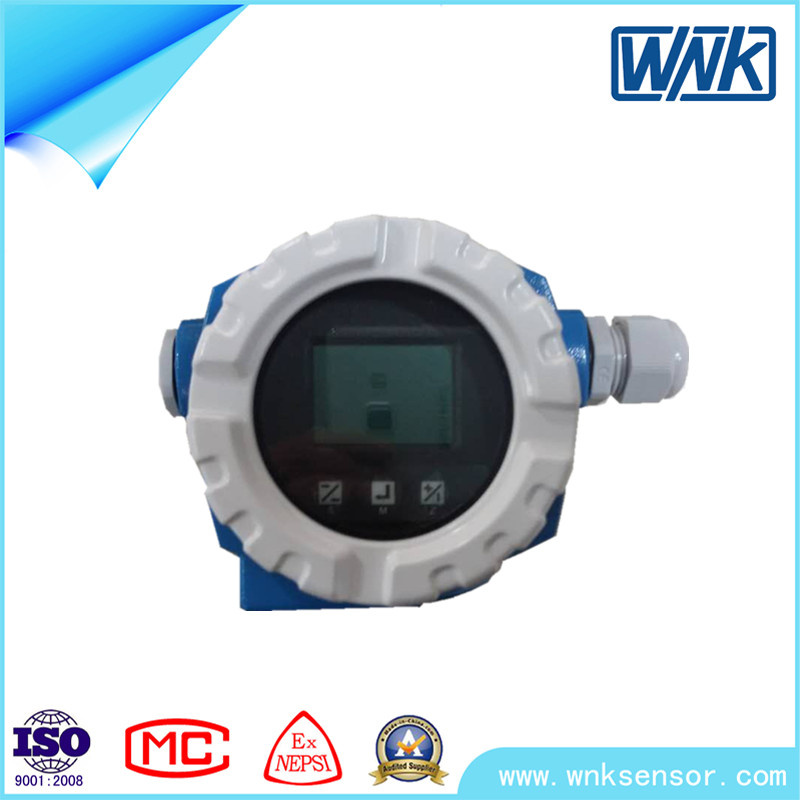

Wall/Pipe Mounted Temperature Transmitter with LCD display
WNK6T PROFIBUS-PA temperature transmitter is approved by PROFIBUS Nutzerorganisation e.V. For temperature sensor we can provide the thermal resister, thermocouple etc usually used in industry, we can also provide special sensor, including high temperature type,high pressure type,healthy type,with special material or with coating etc sensor. Customized sensor is also available.

Features - Wall/Pipe Mounted Temperature Transmitter with LCD Display
1. High precision, digital precision up to :±0.01ºC
2. Long-term drift<0.1/year
3. Install easily, more flexiable
4. To reduce the overall cost of installation,maintenance and running.
5. 4~20mA/Hart/Profibus PA output all available
6 Self-diagnostics function
7. LCD display, Menu-guided operation.

Specification :

Measuring media	liquid, gas
Measuring range	-270~800 ºC (PT100 thermal resistor)
	0~1300ºC, (Thermocouple K)
Power supply range	9~45V (9~24V, Ex)
Output signal	4~20mA/Hart/Profibus PA
Digital Accuracy	±0.01ºC, PT100 input
Internal cold end compensation error	<0.25ºC±0.1%/10ºC
Temperature drift	±0.05%/10ºCfull scale range
	0.1% between-10°C to 60°C
Effect of power supply on range	<0.005%/V full-scale range
Long term drift	<0.1/year
Allowable temperature	Ambient temperature		Storage temperature
	T4	Safe operation(T6)
	-40...85ºC	-40...60ºC	-40...95ºC
Protection Class	IP66/67
Relative humidity	≤98%, condensation allowed
Electromagnetic compatibility	Accordance with EN 61 326

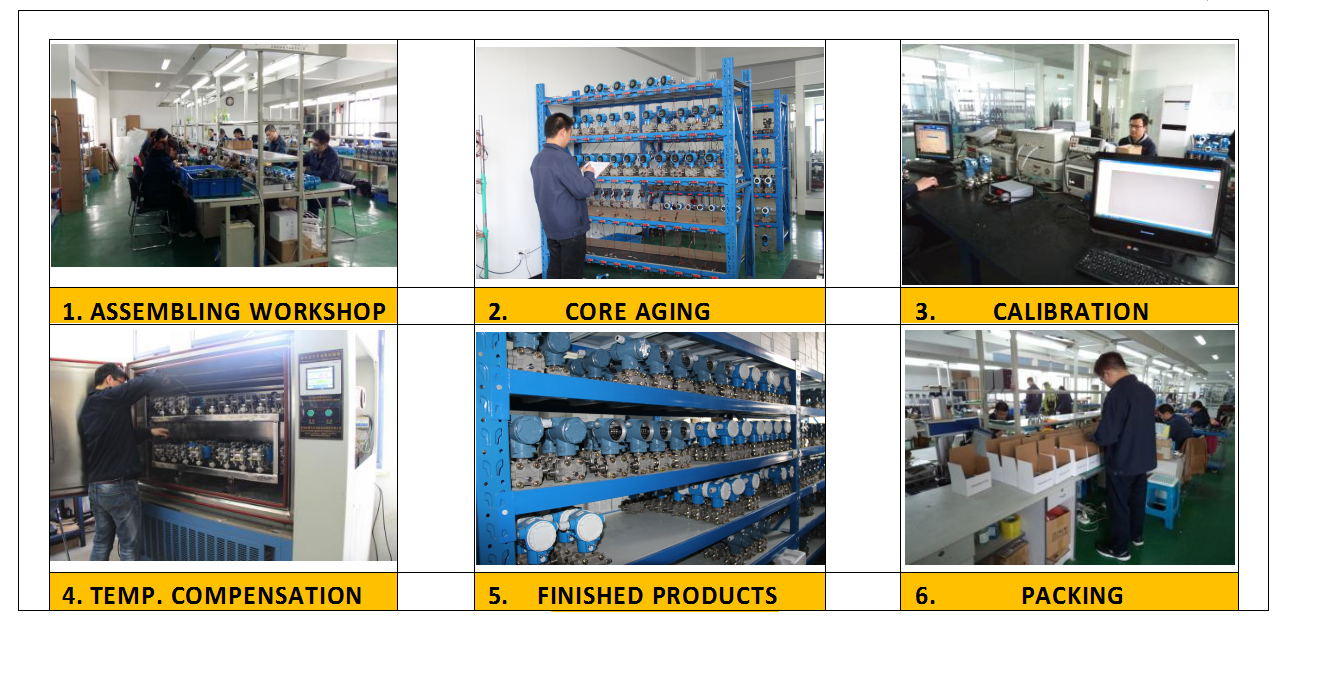

Production Line:

Prod Model:	WNK6T
Output Signal:	4~20m, 4~20mA/Hart, Profibus-PA
Housing Material:	Aluminum Alloy
Stability:	<0.1/Year
Temperature Drift:	0.05%
Type:	Intergrated Temperature Transmitter
Accuracy Grade:	0.075%

Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.

Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.

WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.

With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.

As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
