Factory Copper/CCA Telecom Feeder Cable 1-5/8" Feeder Cable
Price: |
US $ 0.9-1.8/Meter |
Min Order: |
1000/Meter |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

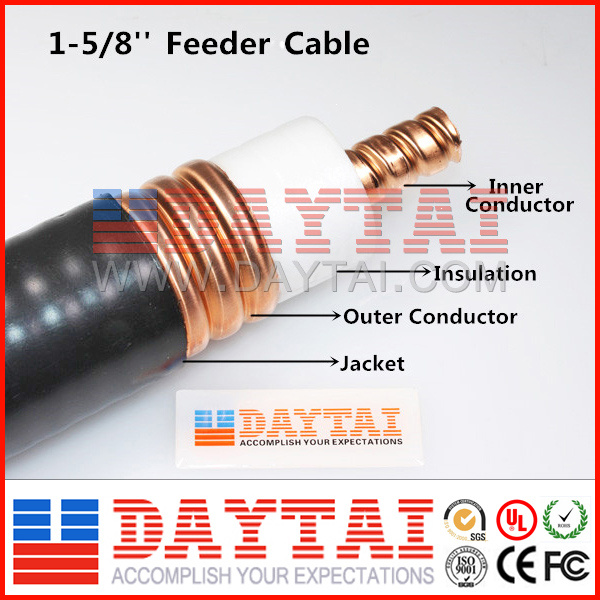

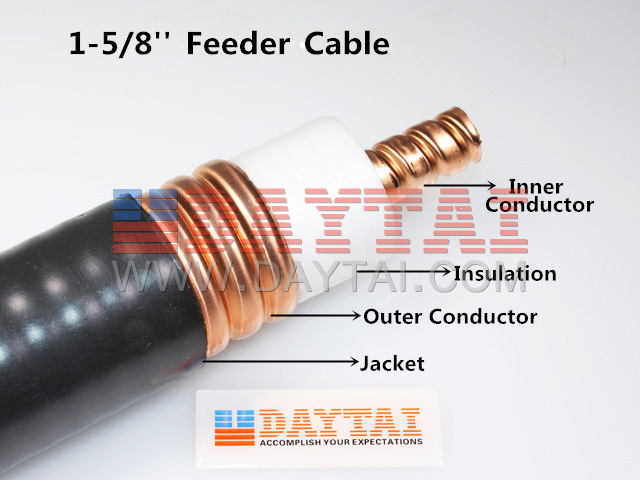

Factory Copper/CCA Telecom Feeder Cable 1-5/8" Feeder Cable
Description1-5/8" Feeder Cable, 17.30mm Inner Conductor +46.50mm Outer Conductor +50.00mm Jacket.Physical Dimensions ITEM | 1-5/8″ | 1-1/4″ | 7/8″ | 5/8″ | 1/2″ | 3/8″ | 1/4″S |
Inner Conductor (Diameter.mm) | 17.30 | 13.10 | 9.05 | 7.05 | 4.80 | 3.15 | 1.91 |
Outer Conductor (Diameter.mm) | 46.50 | 35.80 | 24.90 | 19.80 | 13.80 | 9.53 | 6.40 |
Jacket(mm) | Thickness | 1.75 | 1.80 | 1.30 | 1.20 | 1.00 | 0.85 | 0.60 |
Diameter | 50.00 | 39.40 | 27.50 | 22.20 | 15.80 | 11.20 | 7.40 |
Weight (kg/km) | 13.10 | 980 | 530 | 400 | 240 | 135 | 80 |
Mechanical Characteristics ITEM | 1-5/8″ | 1-1/4″ | 7/8″ | 5/8″ | 1/2″ | 3/8″ | 1/4″S |
Minimum Bending Radius(mm) | Single Bending | 300 | 200 | 120 | 90 | 70 | 50 | 20 |
10 Repeated Bendings | 510 | 380 | 250 | 200 | 125 | 95 | 25 |
Mobile Application | --- | --- | 500 | 450 | 350 | 300 | 200 |
Max. Pulling Strength (N) | 3630 | 5900 | 1470 | 3630 | 1130 | 800 | 680 |

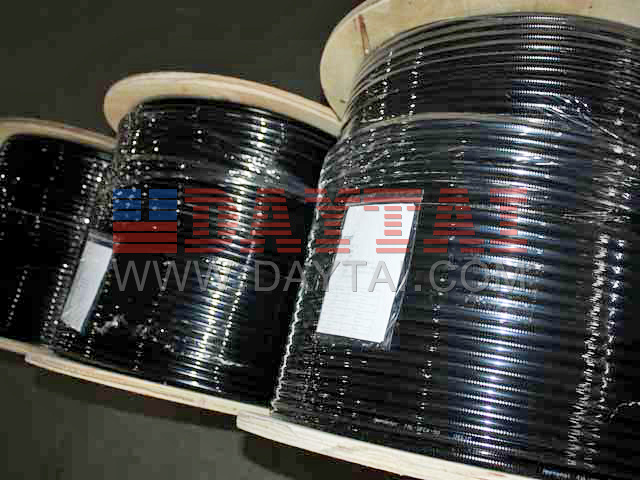

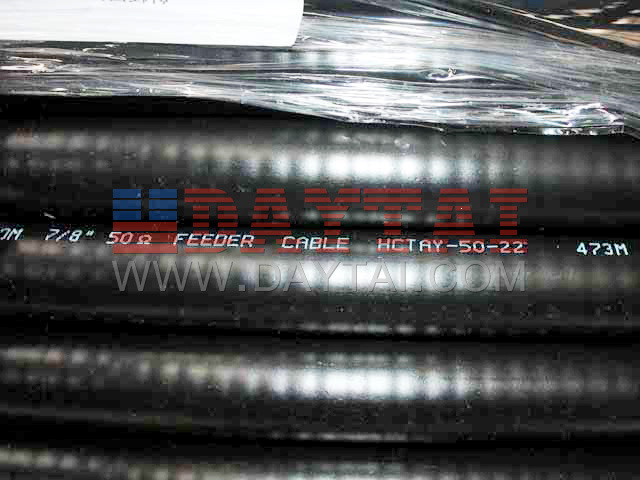

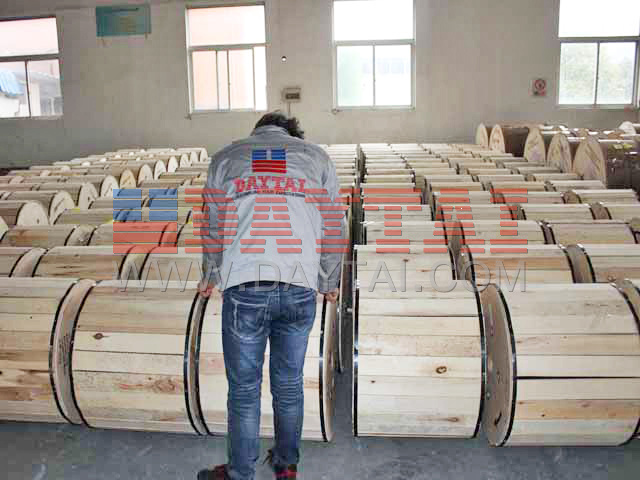

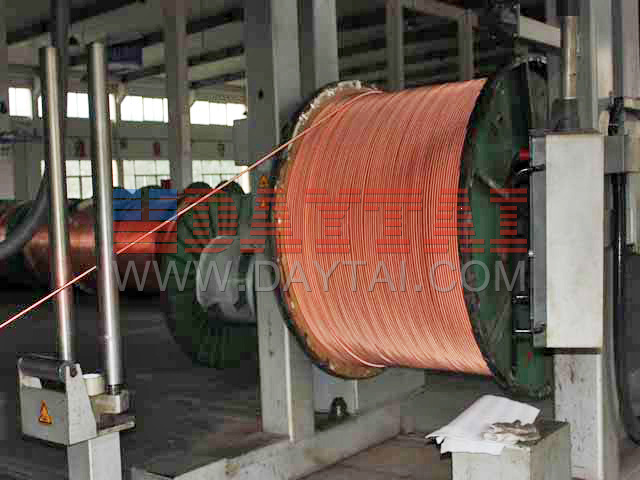

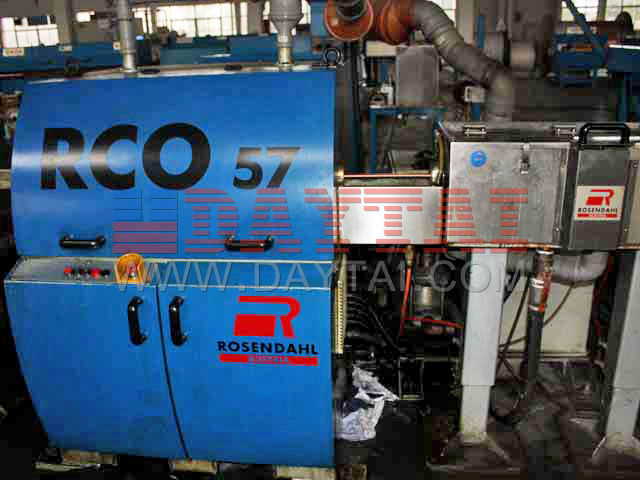

Feeder Cable Factory Pictures
Customer first, service foremost If you have any other questions, please feel free to contact with us.
I will reply you at my first time.
Thank you for visiting our products, have a good day.
Tel: +86-571-8735-7726
Fax:+86-571-8735-7798 Mob:+86-188-5811-4495
Website:www.daytai.com
Prod Model: |
DT-158RFFC |
Quality Certification: |
ISO 9001, SGS, Ce, etc |
Name: |
1-5/8" Feeder Cable |
Number Of Conductors: |
1 |
Color: |
Black |
Jacket: |
Polyethylene |
Service: |
OEM/ODM |
Sheath: |
Foamed PE |
Application: |
Mobile Communication |
Conductor Material: |
Copper |
Cover Material: |
PE |
Certification: |
RoHS |
Model: |
7/8'' Feeder Cable |
Brand: |
Daytai |
Type: |
Feeder Cable |
