| Prod Model: |

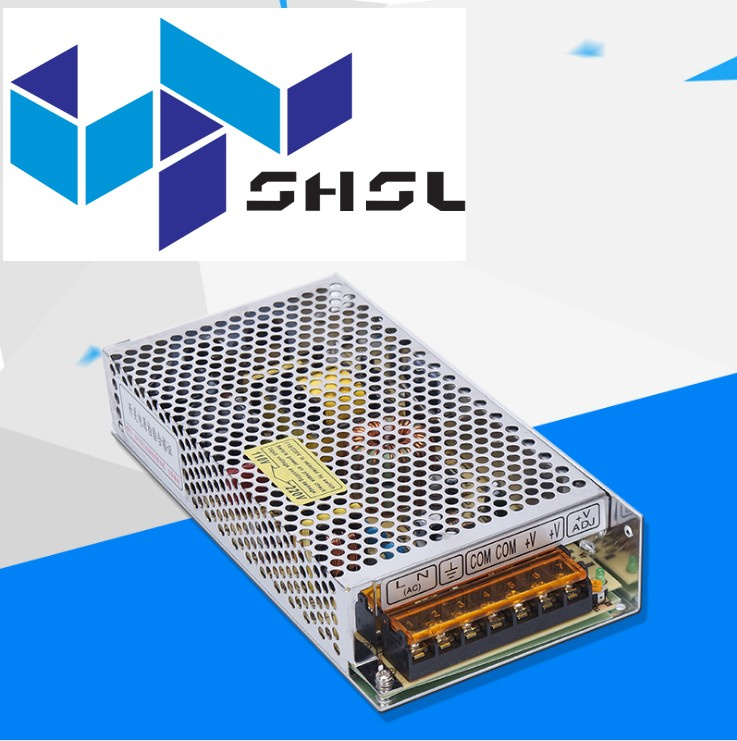

Factory outlet best quality S-120 120w 12v 10a dc |
| Output Type: |
Single |
| Warranty: |
>2 Years |
| Output Power: |
401 - 500W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
FCC |
| Brand: |
Zuoyi |
Product Description
Features :

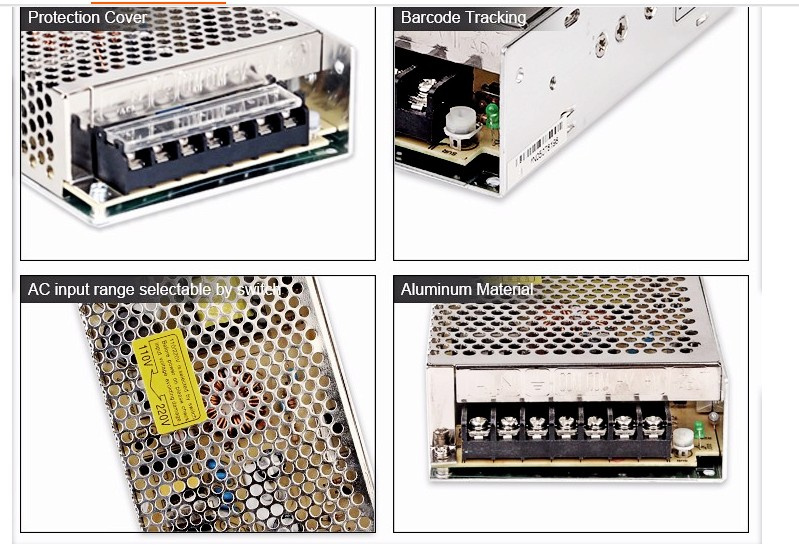

• AC input range selectable by switch

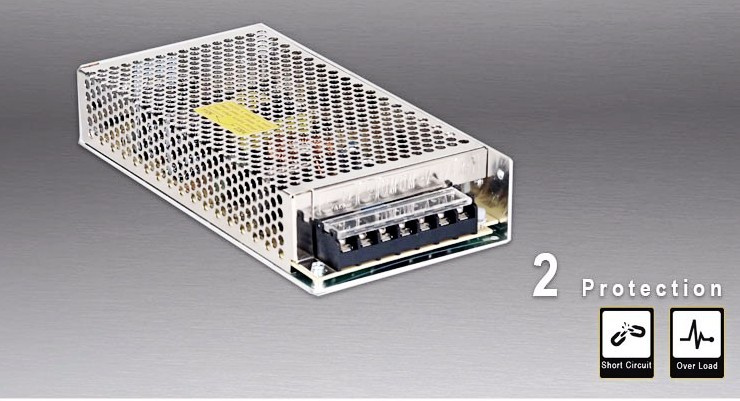

• Protections:Short circuit/Over load/Over voltage
• Cooling by free air convection
• 100% full load burn-in test
• Fixed switching frequency at 83KHz
• 2 years warranty
| Model | S-120-5 | S-120-12 | S-120-15 | S-120-24 |
| DC output voltage | 5V | 12V | 15V | 24V |
| Output voltage tolerance | ±2% | ±1% | ±1% | ±1% |
| Rated output current | 24A | 10A | 8A | 5A |
| Output current range | 0-24A | 0-10A | 0-8A | 0-5A |
| Ripple and noise | 50mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.3% | ±0.2% |
| Load stability | ±1% | ±0.5% | ±0.3% | ±0.2% |
| DC output power | 120W | 120W | 120W | 120W |
| Efficiency | 79% | 84% | 85% | 85% |
| Output voltage adjustment range | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 85~132VAC/170~265VAC/47~63VAC,120~370VDC |
| Input current | 0.6A/115V 0.35A/230V |
| AC impulse current | Cold-start current 15A/115V 30A/230V |
| Leakage current | <0.75mA/240VAC |
| Overload protection | 105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery |
| Over-voltage protection | 115%~135% rated output power |
| Temperature coefficient | ±0.03%°C(0~50°C) |
| Setup rise hold up time | 800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC |
