Factory Price 45mm Travel Length Slide Potentiometer Wh4511

Factory Price 45mm Travel Length Slide Potentiometer Wh4511
Price: US $ 0.42/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: WH4511
Resistance Range: 500ohm-1mohm
Tolerance Of Resistance: ±20%
Withstand Voltage: 1min.at 250V AC
Operating Force: 10-120GF.Cm
Sliding Life: 10, 000cycles
Resistance: Variable Resistor
Installation: SMD Resistor
Material: Carbon Film Resistor
Type: Rotary Potentiometer
Function For Resistance: Variable Potentiometer
Package Type: Carton
Quantity: 50, 0000PCS
Shape: Picture
Application: Many Ways
Brand: Kainar

Product Description




Product  specifications specifications:

Total resistance:1KΩ~500KΩ
Resistance taper:A,B,C
Resistance tolerance:±20% or ±10%
Rotational noise:≤47mV
Power Rating:Curve B: 0.25W
Other than B: 0.125W


Tracking error:0~-40dB  ±3dB
Rated voltage:Curve B: 200V
Other than B: 150V
Withstanding Voltage:1Min,at 250V AC
Operating force:10~120gf.cm
Insulation resistance:≥10MΩ at DC250V
Operating Temperature: -10 ~ 60ºC
Rotary life:10,000cycles

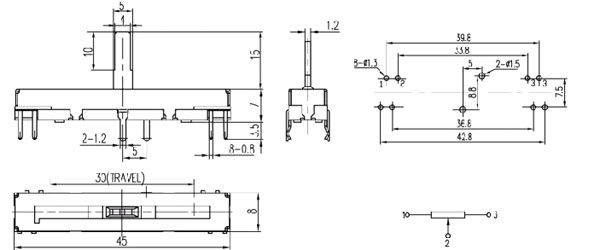

OUTLINE DRAWING



Related Products









Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
