| Prod Model: |
RG6 |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
CCC |
| Model: |
RG6 |
| Brand: |
Sansen |
| Type: |
RG6 |
Product Description
OPTIONS FOR MATERIAL:
1) Conductor: TC, CCS, BC, OFC available;
2) Foam: Foam PE, PE, SPE available;
3) Braiding Foil: Al-Foil or Bonded Al-Foil available;
4) Braiding coverage: Between 30- 97% available;
5) Braiding net: 32, 64, 80, 96, 112,128,144 and more available;
6) Braiding wire diameter: 0.12, 0.13, 0.14, 0.15, 0.16, 0.18mm available;
7) Jacket Color: Black or White available;
8) Jacket material: PVC, PE ,PP, Rohs, available

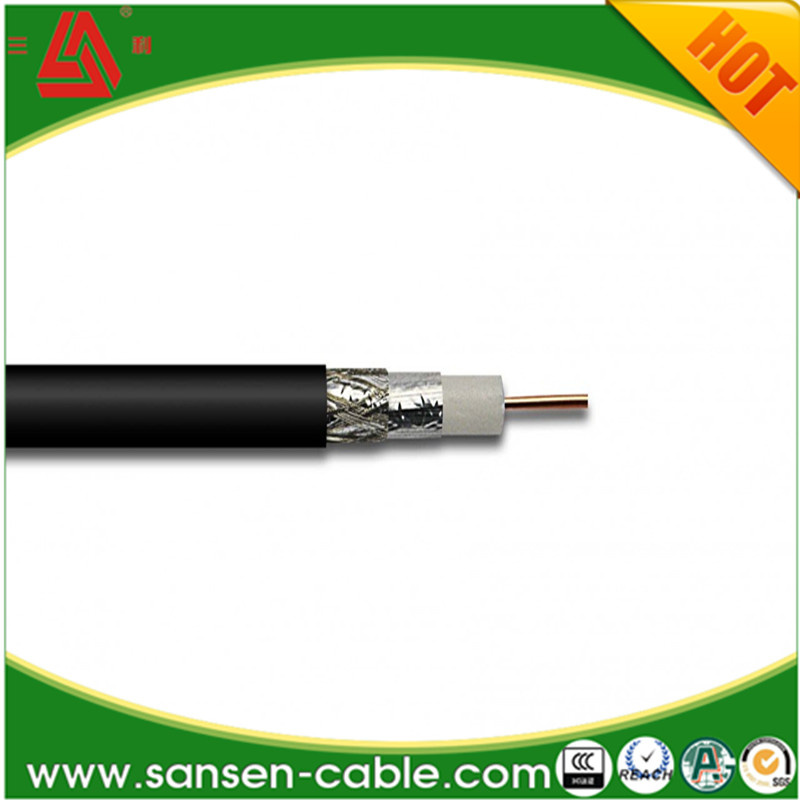

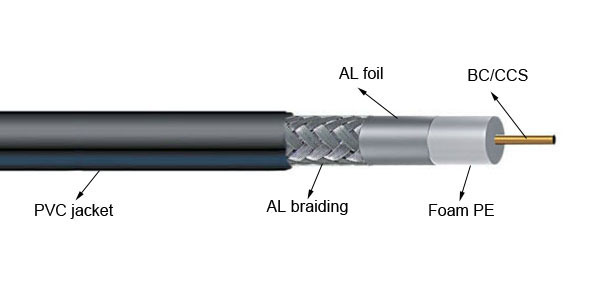

DETAILED SPECIFICATION OF RG6 COAXIAL CABLE:
| CONDUCTOR | MATERIAL | CCS |
| Nom. Dia. | 1.02mm |
| DIELECTRIC | MATERIAL | Foamed PE |
| Nom. Dia. | 4.8mm |
| SHIELD | MATERIAL | Al foil+64*0.12mm ALMG braiding |
| JACKET | MATERIAL | PVC |
| Nom. Dia. | 6.80mm |
BASIC CHARACTERISTICS OF RG6 COAXIAL CABLE
| Nominal Impedance(Ohm) | 75±3 |
| Nominal Velocity of Propagation(%) | 85 |
| Nominal Capacitance(pF/m) | 50 |
| Sparker Test(VAC) | 4000 |
| SRL(dB) | 20 |
| Attenuation(68F/20C) |
| Frequency(MHz) | Maximum(db/100ft) | Maximum(db/100m) |
| 5 | 0.58 | 1.9 |
| 55 | 1.6 | 5.25 |
| 187 | 2.85 | 9.35 |
| 300 | 3.55 | 11.64 |
| 450 | 4.4 | 14.43 |
| 600 | 5.1 | 16.73 |
| 750 | 5.65 | 18.54 |
| 865 | 6.1 | 20.01 |
| 1000 | 6.55 | 21.49 |

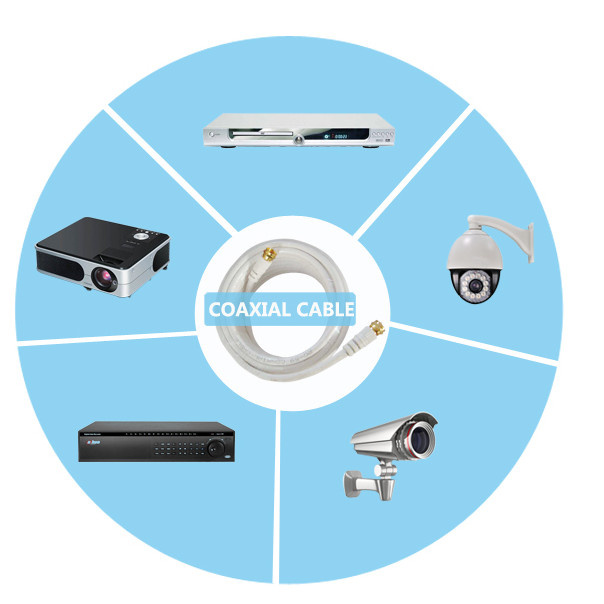

APPLICATION:
1. Coaxial cable for CATV,CCTV systems
2. For satellite systems
FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.
Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.
Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.
Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.
Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.
