Factory Supply Self-Locking Through Hole 6pin Push Button Switches
| Price: |
Negotiable/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P |

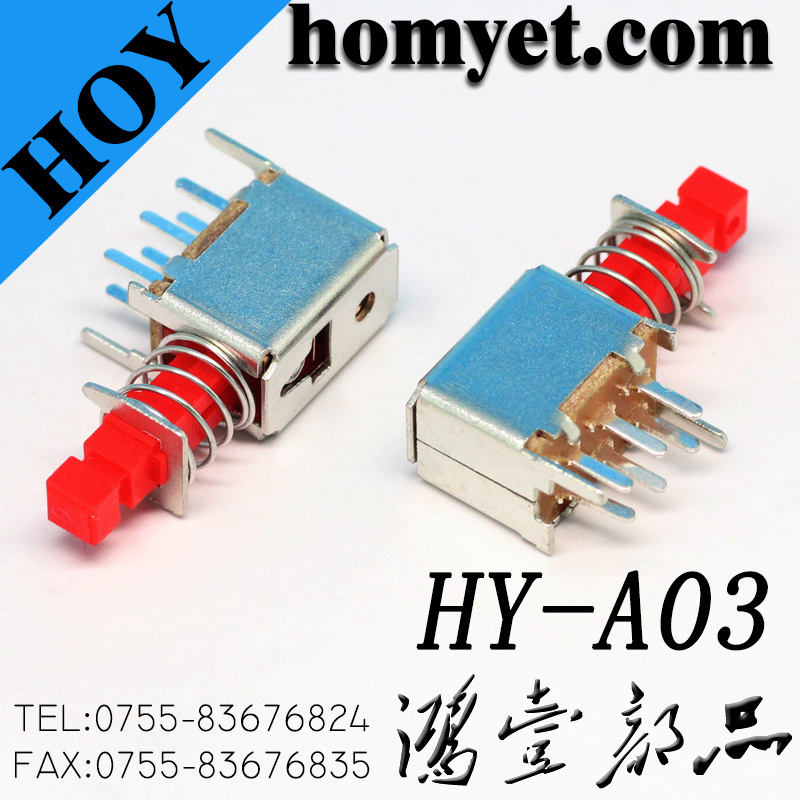

Factory Supply self-locking through hole 6Pin Push Button Switches
Features:1.Micro-Miniature, Innovative design
2.It has good feeling and long life
3.Snap-in type, can be mounted directly on P.C.Board and good for electrostatic discharge
4.It has a lot of choices for button shape and height and it is easily to installApplications:Include low power on/off designs, instrumentation, telecommunications, performance audio, computers/servers, networking and more.
1) Computer products
2) Consumer products
3) Communication equipments
4) InstrumentationWelding Conditions:1.Hand soldering
Use a soldering iron of 30 watts, controlled at 350ºC approximately 3 seconds while solder applying
2.Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260ºC max. Condition for soldering Temperature ProfileSpecification: | Rating | DC50V 0.3A |
| Contact Resistance | ≤100m Ω |
| Insulation Resistance | ≥ 1000MΩ |
| Withstand Voltage | AC100V (50-60Hz for 1 Minute) |
| Electrical Life | 100,000 Cycles |
| Operating Force Range | 30+-10gf |
| Operating Temperature | -10ºC+ 60ºC |
| Stroke Distance | 2+-0.2mm |
| Travel | 0.3+-0.1mm |
Product Details:
Packaging & Shipping1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery
Why Choose Us?1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2000pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force, height and colour for one item for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.Company Profile:Shenzhen Homyet Parts Electronics Co., Ltd is committed to electronic components parts & some digital products which we do design & production and sales by ourselves . Our company keep with " Faithfulness & Mutual Benefit " as our Philosophy, and "Quality Is The Life, And Integrity Is The Development" as our Mission Statement! Our target is "Create A Word-Class Brand " ,so we stick to innovation and strict quality control. In order to adaptation the requirements of market, we develop a series of new product successful and push in market.

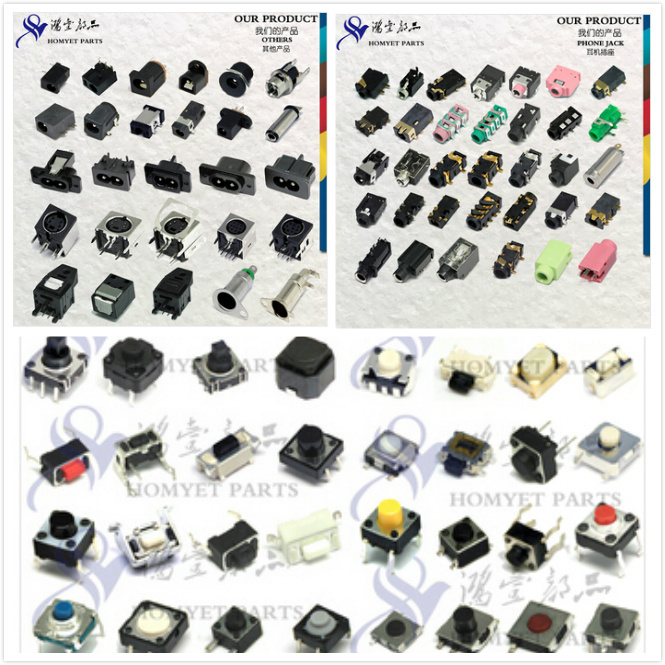

Our main products include all type of switch/Phone jack/power jack/Cable & connector etc. Our products are widely used in Computer products, Consumer products, Communication equipments, Instrumentation and other related fields. The rapid development of the company, our term be coming bigger with professional manager and technical personnel. All of our products are compliance with RoHS, and our company got the certification of RoHS and CE! We are looking forwarder for all of respective customer visit our company and welcome your trial order to start our cooperation in any time. Homyet Parts will act locally, think globally, and create a brilliant tomorrow for Global electronic consumer industry, return better products and services to faithful users with more perfect high-tech products.
You are always welcome to visit us, and we will do our best to work with you.
Don't be hesitate, send inquiry in below now. We'll reply you within 24Hours in working time !
Contact Information:Seven/Overseas Sales Dept
Mob: +86-15112386375
Web:www.homyet.com
| Prod Model: |
HY-A03 |
| Type: |
Normal Close |
| Usage: |
Reset Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
HOY |
Shenzhen Homyet Parts Electronics Co.,Ltd is committed to electronic components parts development,design,production and sales of professional firms. We stick to innovation and quality.ln order to adaptation the requirements of market,we open up constantly,innovation,so we development a series of new product successful and push in market.Our main products ane Tact switch,Phone jack,Toggle switch,power jack, card and connector etc.Our products are widely used in digital fashion,communications,
Multimedia, digital home and other related fields. The company has perfect quality management ,system,Experienced professional andtechnical personnel.
The company keep in line with purpose of"quality,efficiency,integrity
Service",we Conscientiously sum up experiences,Listen carefully to customer feedback and suggestions,Constantly improving and upgrading servies to users.ln the days,the company will go on cooperation with new and old customers to create brilliant together.
We're pleased to get your Inquiry and we will come back to as soon as possible.
