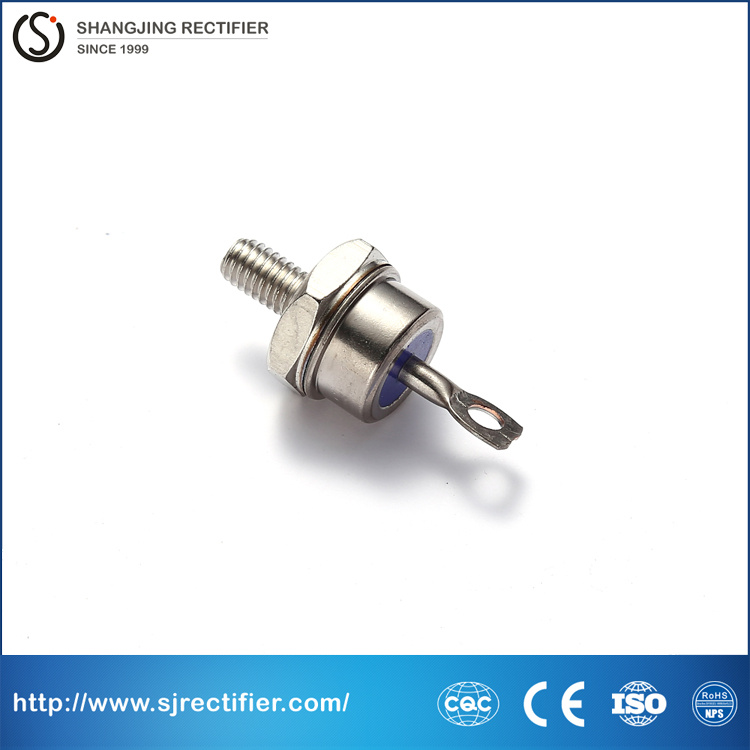

Fast Recovery Diode (Stud Type)

Name: Fast Recovery Diode (Stud Type)
Brand: all-electronics-online.com
SKU: 674444822
Availability: InStock
Rating: 4.9 (96 reviews)

Price:	US $ 1-2/Piece
Trade Terms:	FOB
Min Order:	12/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Features
High surge current capability
Stud cathode and stud anode version
Wide current range
Metric device version available

Typical Applications
Battery charges
Converters
Power supplies
Machine tool cotrols
Welders
Motor controls

Type	IF(AV)	VFM/IFM		IF(RMS)	VRRM	IRRM	Rjc	trr	Tj	M2	Wt	Outline
	THS55° C	25° C
	A	V	A	A	V	mA	° C/W	μ s	° C	kN	kg
FR10F(R)	10	1.40	30	16.0	200-800	≤ 6	≤ 2.0	≤ 0.5	-40 ~ +150	≤ 1.0	0.008	DO-4
FR15F(R)	15	1.45	45	24.0	200-800	≤ 12	≤ 1.2	≤ 0.5		≤ 1.0	0.008
FR20F(R)	20	1.60	60	32.0	200-800	≤ 12	≤ 1.2	≤ 0.5		≤ 1.0	0.008
FR40HF(R)	40	1.85	120	64.0	200-1200	≤ 10	≤ 1.2	≤ 0.7		≤ 2.0	0.020	DO-5
FR50HF(R)	50	1.80	150	80.0	200-1200	≤ 10	≤ 1.2	≤ 0.7		≤ 2.0	0.020
FR70HF(R)	70	1.75	210	112.0	200-1200	≤ 12	≤ 0.8	≤ 1.0		≤ 2.0	0.020
FR80HF(R)	80	1.75	255	136.0	200-1200	≤ 12	≤ 0.8	≤ 1.0		≤ 2.0	0.020
FR100U(R)	100	1.95	300	160.0	200-1200	≤ 15	≤ 0.3	≤ 1.5		≤ 12	0.120	DO-8
FR100U(R)L	100	1.95	300	160.0	200-1200	≤ 15	≤ 0.3	≤ 1.5		≤ 12	0.140	DO-30
FR150U(R)	150	1.90	450	240.0	200-1200	≤ 20	≤ 0.2	≤ 2.0		≤ 25	0.250	DO-9
FR200U(R)	200	1.95	600	320.0	200-1200	≤ 20	≤ 0.2	≤ 2.5		≤ 25	0.250	DO-9

Prod Model:	FR70HF(R) DO5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	200-1200V
Irrm:	<12mA
If(AV):	70A
Vfm:	1.75V
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Through Hole Package Type
Application:	Battery Charges, Power Supply, Converters
Model:	Fr70hf(R) Do5
Batch Number:	2016+
Brand:	Shangjing

China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, as well as the manufacturer for timer switch ( programmable timer switch, digital timer switch mechanical timer switch ) and circuit breaker ( mini circuit breaker, DPN miniatire circuit breaker, DPNL residual current circuit breaker etc) our company has been devoted to provide the high quality electronicsr products for our customers all over the world.

Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.

Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.

We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.

We hope our high quality products and service will be bringing successful future to all our customers.
