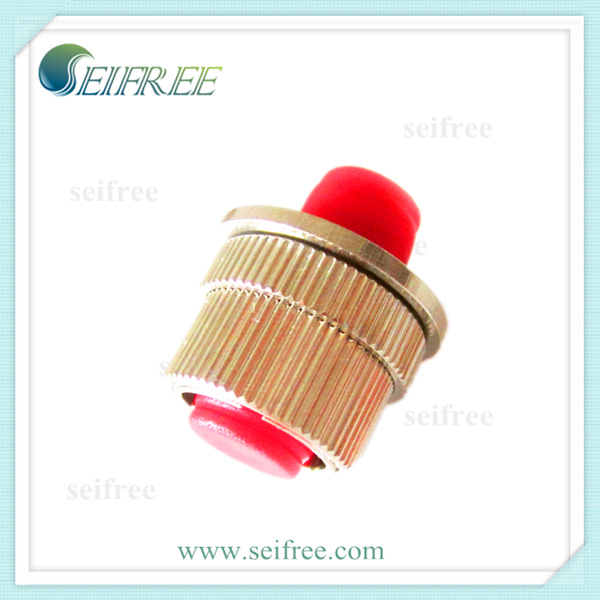

FC Adapter Fiber Optic Attenuator VOA

Name: FC Adapter Fiber Optic Attenuator VOA
Brand: all-electronics-online.com
SKU: 788764345
Availability: InStock
Rating: 4.7 (147 reviews)

Price:	US $ 6.5-7/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Description
The Air-Gap variable optical attenuator is used for continuously optical signal attenuation. The devices are manufactured to meet Telcordia GR-910-CORE requirements and RoHS compliant.

Applications Features
Optical Network Wiring High Attenuation Precision
LAN Simple Structure
Test Equipment   Compact Design
Ordering Information
SVOA-       -       -       -       -       -       -       -

Config	Fiber mode	Attenuation	Type	Housing of 1st End	Ferrule Type	Housing of 2nd End	Ferrule Type
A=Adaptor	S=Single mode	1=1dB	S=Standard	FC	MPC= Male PC	FC	MPC= Male PC
/	/	2=2dB	F=Flange	SC	MPC= Male PC	SC	MPC= Male PC
		…	0=Oval	…	FAPC= Female APC	…	FAPC= Female APC
		20=20dB	P=Prismatic	LC	FAPC= Female APC	LC	FAPC= Female APC

Specification

Parameter	Unit	Value
Attenuation Range	dB	0~30
Attenuation Precision	dB	±10%
Return Loss	dB	>20
Repeatability	dB	≤0.1
Interchangeability	dB	≤0.2
Repeatability	Time	>1000
Sleeve Material	/	Metal
Operating Tem.	ºC	-40~ +80
Storage Tem.	ºC	-40~ +85

FAQ
1.Is your company a manufacturer or dealer?
---We have our own factory in Wuhan, China.

2.Can you provide free samples for us?
---Sure, we can provide free samples for you, but the freight should be paid by you.

3.What's the lead time for all the goods that I required?
---It depend on the quantity of products. Generally, it would be 1-2 weeks.

4.What's the warranty for your products?
----Normally it is 1 year.

5.What's your payment term?
---It is 100% T/T in advance.

6.What's the MOQ for your products?
---1pcs is okay.

Prod Model:	SVOA-A-S-30-S-FC-FPC-FC-FPC
Configuration:	Adator Type
Attenuation:	1-30dB
Jacket Type (Housing):	FC
Ferrule Type:	PC
Application 1:	FTTH
Application 2:	CATV
Application 3:	Gpon
Application 4:	CWDM
Application 5:	EDFA
Application 6:	Optical Test and Measurement
Transmission Medium:	Single-Mode
Structure:	FC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
