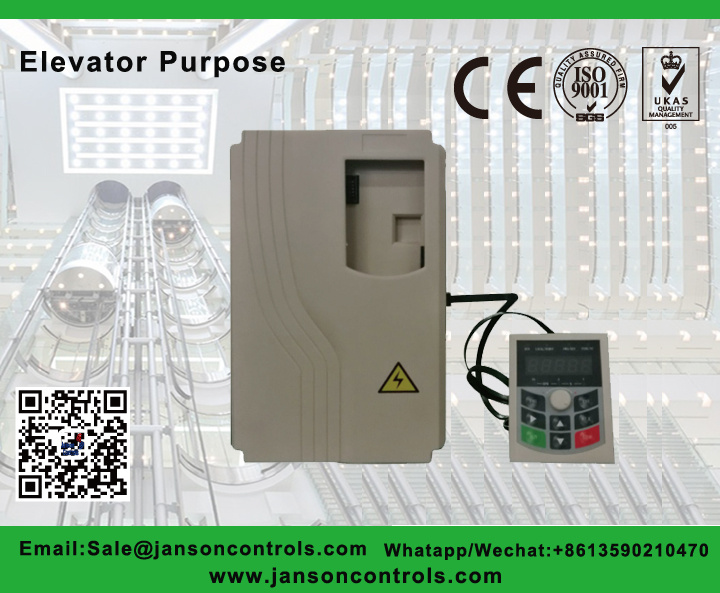

FC155e Series Variable Frequency Drive Elevator VFD 30kw 380V/415V
| Price: |
US $ 1-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
FC155E series Simple Introduction:

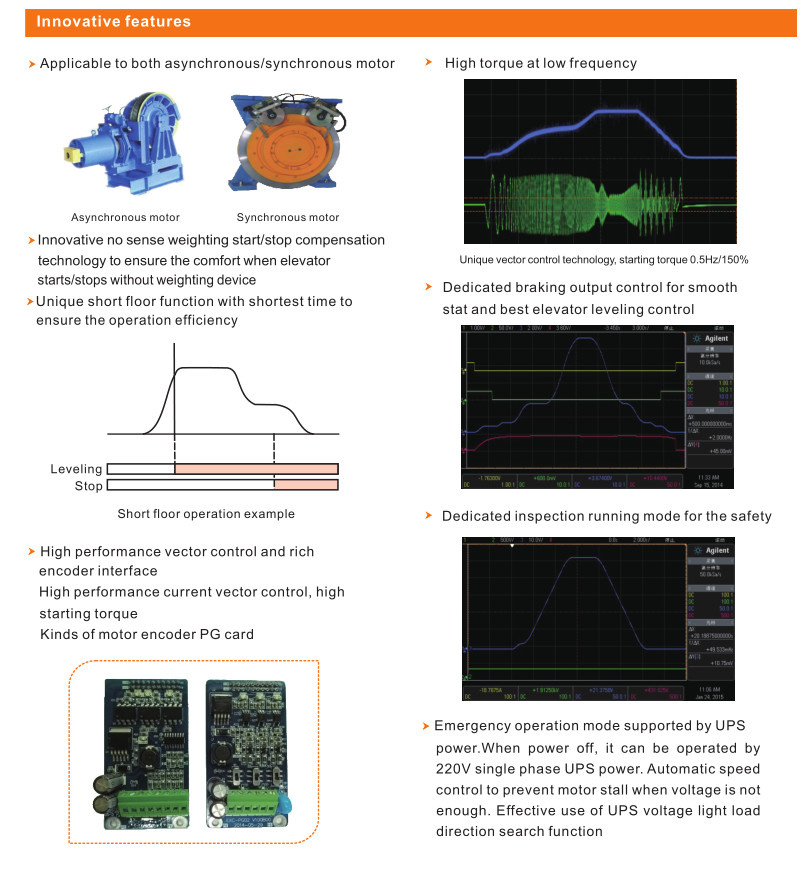

FC155E series inverter is designed according to the carrying characteristics of elevator. It adopts high performance vector control technology, can control both asynchronous motor and synchronous motor. For asynchronous motor open-loop vector control, it combined with innovative sensor start/stop compensation technology without weighting to ensure the comfort when elevator start/stop without weighting device.

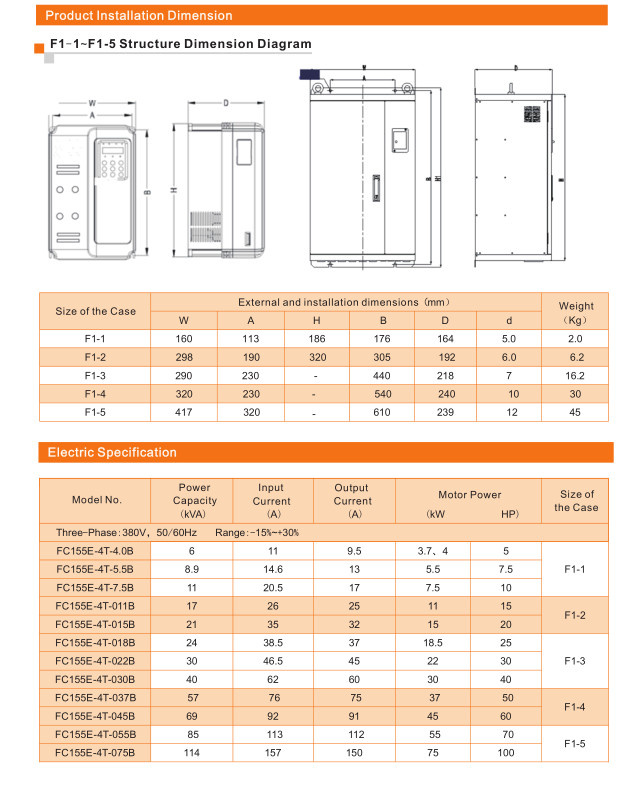

Technical Parameters:
| Item | Specification |
| Input Power | Rated Input Voltage ( V) :Three phase 380 V(-15%~+30%) |
| | Rated Input Frequency(Hz) :50Hz/60Hz,±0.5% |
| Output Power | Maximum Output Voltage(V) :0~Rated input voltage, Error<±3% |
| | Maximum Output Frequency(Hz) :0.00~600.00 Hz,Units: 0.01Hz |
Control
Characteristic | Control mode | V/f control Sensor-less vector control 1&2 Closed loop vector control |
| | Speed range | 1:50 (V/f control) 1:100 (sensor-less vector control 1&2) 1:1000(closed-loop vector control) |
| | Speed accuracy | ±0.5% (V/f control) ±0.2% (sensor-less vector control 1 & 2)± 0.1% (Closed loop vector control) |
| | Speed fluctuation | ±0.3% (sensor-less vector control 1 & 2) ± 0.1% (Closed loop vector control) |
| | Torque response | < 10ms (sensor-less vector control 1 & 2) < 5ms (Closed loop vector control ) |
| | Starting torque | 0.5Hz: 180% (V/f control, sensor-less vector control 1) 0.25Hz: 180% (sensor-less vector control 2)
0.0Hz: 180% (Closed loop vector control) |
Basic
functions | Carrier frequency | 0.7kHz~16kHz |
| | Overload capability | 150% Rated Current 60s,180% Rated Current 10s, 200% Rated Current 1s. |
| | Acceleration and
deceleration Curve | Line or curve acceleration and deceleration mode.
Four kinds of acceleration and deceleration time,Ramp Time Range :0.0~6000.0s |
| | DC brake | DC brake start frequency: 0.00~600.00Hz DC brake time: 0.0s~10.0s
DC brake current:0.0%~150.0% |
| Run | Control Characteristics | 7 Switch input terminals, one way to make high-speed pulse input. Support NPN and PNP
3-channel analog inputs, including 2-way 0~10V / 0~20mA voltage and current options,
a way to support -10~+10 V input |
| | Output
terminal | 2-way switch output terminal, which supports a maximum road speed 100kHz pulse output.
2 relay output terminals. 2 analog output terminal, and optional voltage and current. |
Protection
function | Provide fault protection dozen:Over current,Overvoltage,Under voltage,Over temperature,Overload Etc Protection. |
Environment
| Place of
operation | Indoors, no direct sunlight, free from dust, corrosive gases, flammable gases, oil mist, water vapor,
water drop and salt, etc. |
| | Altitude | 0~2000m De-rate 1% for every 100m when the altitude is above 1000 meters |
| | Ambient temperature | -10ºC~40ºC(De-rate from 40ºC~50ºC) |
Others
| Installation | Wall-mounted or Flange mounting |
| | IP grade | IP20 |
| | Cooling method | Fan cooled |

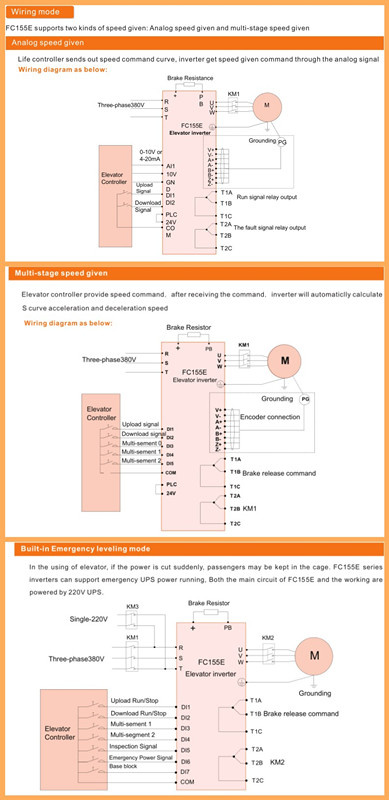

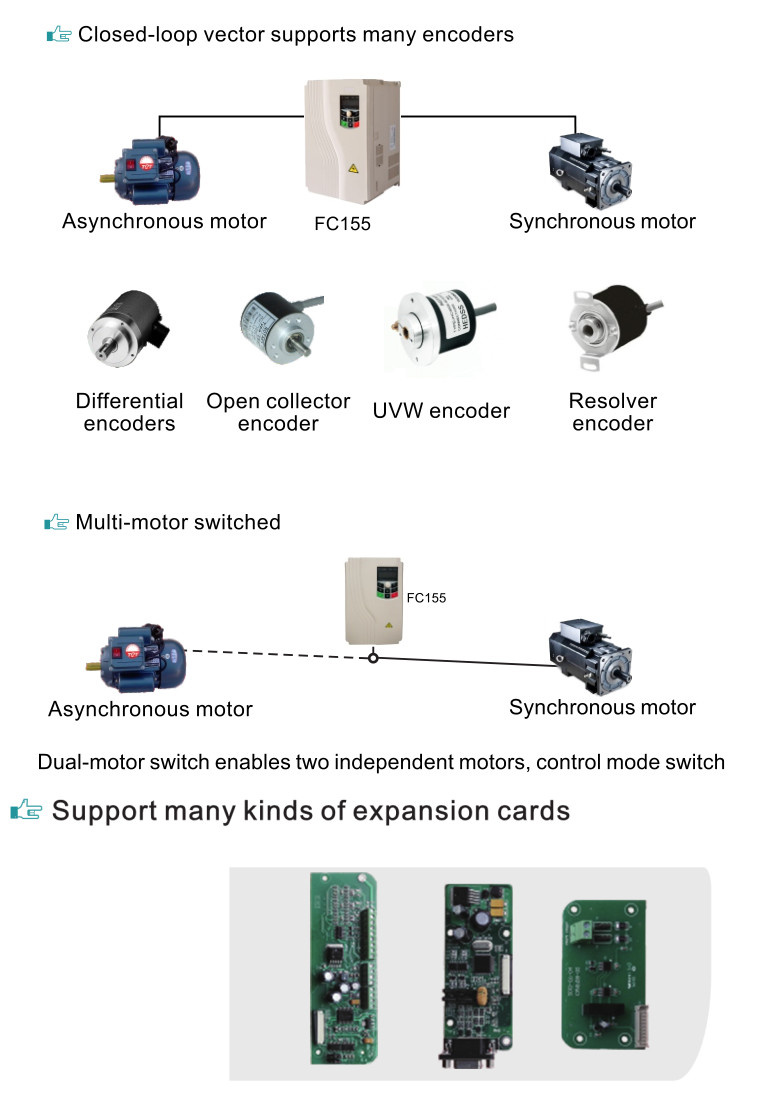

| Differential Encoder PG Card | PG1-V10 | A+/A-;B+/B-;Z+/Z- +5v, COM,PE Support the differential input and the collector |
| Rotary Transformer PG Card | PG2-V10 | Support Encoder Interface, include pumping signal EXC+/-&Sin+/-, COS=/-,10KHZ |
| Open Conllector PG Card | PG3-V10 | A,B, Z,+5V,COM,PE Support input open collector |
| Relay expension card | IO-KZ10 | Add One Relay and Two Analog Input |
| CANOPEN Card | IO-KZ22 | For Canopen Communication |
| Expansion Card 1 | IO-KZ31 | 1 Relay/2 Digital input,1 Analog(0-10V/0-20mA)Input |
| Two way turn a 00-1-10V,thermistor detection(PT100/Pt1000), CAN bus |
| Expension Card 2 | PGH00 | 1 Realy/5 Digital Input, one Dif Encoder Interface |
| TCAN bus Outer supply 5v, and 12v |
Our Service:
1. Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2. What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3. What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4. What's your warranty terms?
We offer 24 months warranty time .
5. Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6. Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7. How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .
8. Can you sell spare parts ?
If you are using our products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .We have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request .
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
Our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail. and we will take all the responsibility once problem during warranty time.
Note: for more information please check our website: www.jansoncontrols.com
| Prod Model: |
FC155E Series |
| Output Voltage: |
380VAC |
| Input Voltage: |
220V/380V/440V |
| Output Current: |
2.3~900A |
| Solutions: |
Textiles,Papermaking,Food,Machine Tool |
| Output Power: |
0.2~500kw |
| Output Frequency: |
0~600Hz |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Output Type: |
Sigle & Three Phase |
| Function: |
Closed-Loop Vector Control |
| Brand: |
Janson Controls |
Located in Shenzhen, China, Janson Controls Company Limited is a factory that obtained ISO9001: 2008 and CE certificate, we are highly skilled in focusing on green energy of harmonic drive, including high frequency inverter, low voltage inverter, and different variable frequency inverter for general purpose.
As a council member of Inverter Branch of China Electric Appliance Industrial Association, all of our software and hardware are developed by its own D&R, and the main components are from top-brands in the world, e. g. IGBT from Infineon of Germany, capacitor from NCC of Japan, rectifier bridge from Microsemi, PCB board from TDK of Japan, and fan from NAIS of Taiwan and also NIDEC of Japan, MCU from DSP of IT in USA, MOS Tube from ST etc.
Our products mainly serve for Equipment Manufacturing, Energy-saving&Environmental protection, and New energy field, and are widely used in elevator, crane, machine tool, metal products, wire and cable, plastic cement, printing packaging, textile chemical fiber, construction materials, metallurgy, colliery, civicism and auto industry.
With timely service and superior quality, we have gained high reputation for its applicability and reliability in this industry, together with competitive price make us develop a word-wide market network and our products have been exported to southeast Asia, Russia, Europe, Pakistan and many other countries, and what we offer is not only products but also solutions and services to meet all customers' needs.
Janson is strived to become the best reliable supplier of automated products, our mission is to improve the industrial automation application, and our value is to establish a human-centric development platform.
A warm welcome is extended to visit Janson Controls when you are visiting China.
