Ferrite Core Toroidal Choke Coil Fixed Inductor Common Mode Choke

Name: Ferrite Core Toroidal Choke Coil Fixed Inductor Common Mode Choke
Brand: all-electronics-online.com
SKU: 824030935
Availability: InStock
Rating: 4.4 (82 reviews)

Price:	US $ 0.1-2/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description

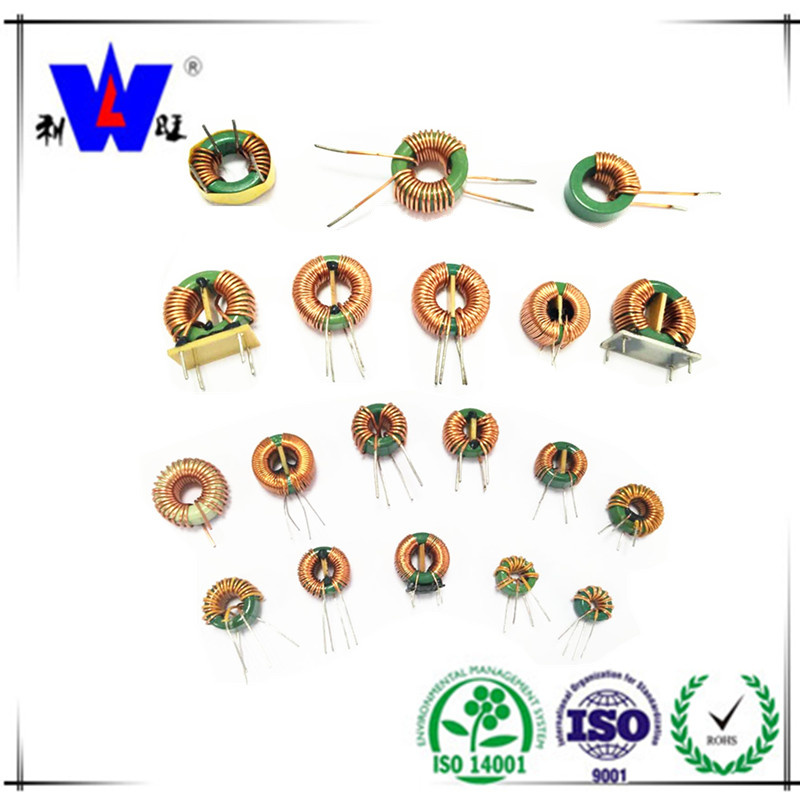

ferrite core toroidal choke coil fixed inductor common mode choke

High frequency and low loss
Common mode filter
Toroidal inductor
For excellent EMI suppressor
High-frequency, low loss toroid
Small profile
Large current
Low resistance
MPP, hi-flux, sendust/RF carbonyl, and iron power core
For excellent EMI suppressor
common mode choke coils
Toroid common-mode filter coils
Toroidal common-mode inductor
For SMPS application
SMT and low profile available
RoHS compatible (Pb free) versions available
Good frequency characteristic
With high impedance
Application: widely applied in various switching power suppliers and high frequency electronic equipment
Magnetic choke

Part No.	L(uH) ±15% @1KHz	I,DC (A)	DCR (Ω) Max	A Max	B Max	C Ref.	D	E
MN-1R0-V/H	1.0	20	0.002	17.5	10.4	8.9	1.5±0.1	5.0±1.0
MN-100-V/H	10.0	6.5	0.015	17.5	10.4	8.9	0.85±0.1	5.0±1.0
MN-220-V/H	22.0	4.3	0.035	17.5	10.4	8.9	0.68±0.1	5.0±1.0
MN-470-V/H	47.0	3	0.05	19.5	10.0	10	0.6±0.1	5.0±1.0
MN-680-V/H	68.0	5	0.01	25.5	13.5	10.5	0.7±0.1	5.0±1.0
MN-101-V/H	100	2.4	0.13	22	11.4	8.5	0.56±0.1	5.0±1.0
MN-221-V/H	220	2.4	0.12	22	11.4	8.5	0.56±0.1	5.0±1.0
MN-102-V/H	1000	1.3	0.4	22	11.4	8.5	0.56

Shipping way :
Economy Shipping way (HK post air mail or ePacket) ,it normally cost 15-25 days
Expedited Int'l Shipping (FEDEX, DHL, UPS, TNT) it normally cost 4-6 days

Our advantage:
1.More than 5,000,000 ownstock inventory to meet your needs of different products.
2.Competitive price advantage helps to save your purchase cost and your precious time.

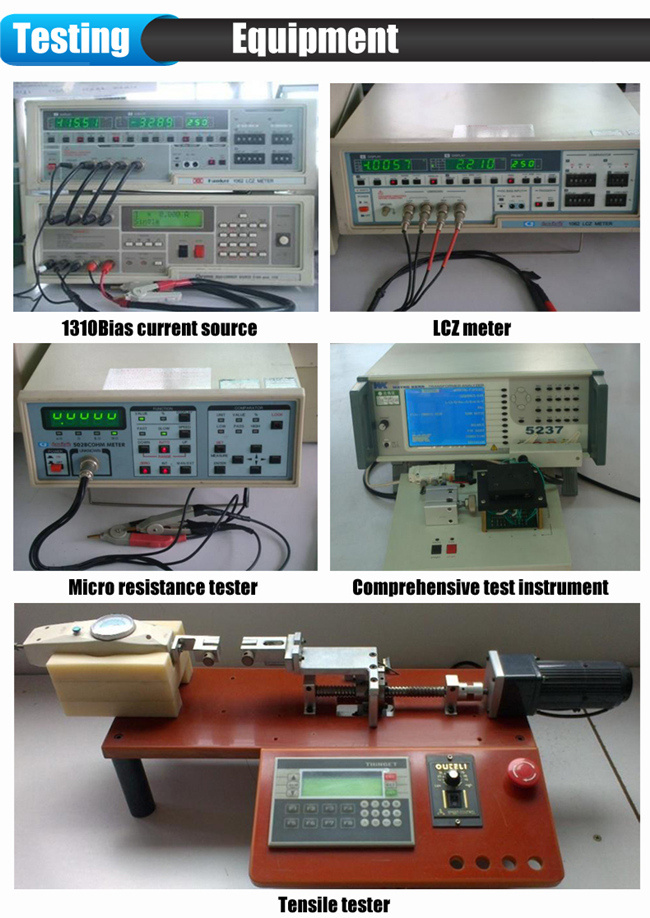

3.Own the international advanced testing equipment of electronic components and scientific storage system to ensure the quality stability.
4.Excellent elite team, more than 5 years seniority, and a good understanding of international market trends.

We'll reply you within 24 hours.If any questions or concerns pls contact us at any time convenience to you

Thank you and Have a nice Day!

Prod Model:	TCC
Tolerance:	20%,30%
Other Certification:	RoHS
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	Liwang

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
