| Prod Model: |
FTTH |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Application: |
Fiber Optic Cables |
| Brand: |
Hanxin |
| Sheath Material: |
LSZH |

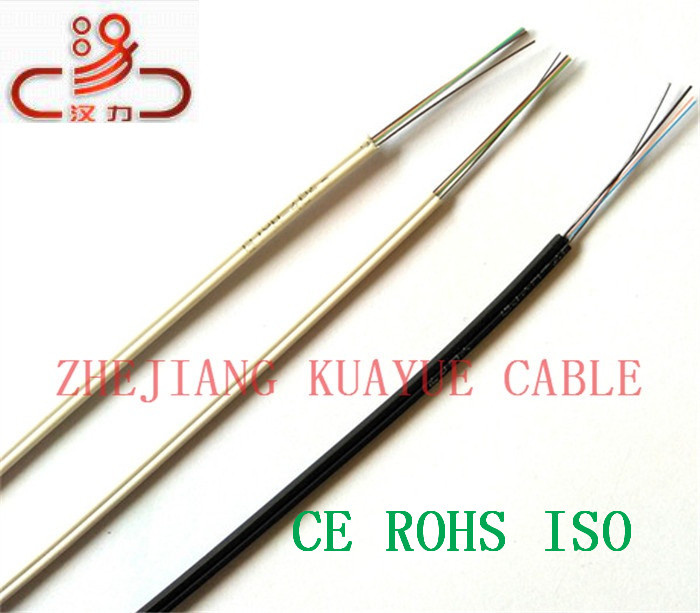

Product Description
Simplex
Simplex cable consists of single tight buffered fiber with aramid yarns as tensile strength members with
jacket of either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.
Duplex Flat
Duplex Flat Cable consists of two simplex units. Two simplex cords are placed side by side and jacketed
with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.
Duplex Round
Duplex Round Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are
reinforced with aramid yarn to provide physical and tensile strength. The fibers are jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.
Duplex Zip
Duplex Zipcord Cable consists of two single fibers, each with a color-coded PVC tight buffer. They
are reinforced with aramid yarn to provide physical and tensile strength. The fibers have either Flame Retardant PVC or LSZH compound jackets connected by a web to form a āzipcordā construction. The cable is unconnectorized.
Physical Properties
| Fiber Count | Cable Type | Nominal Weight(kg/km) | Nominal Weight(lb/kft) | Nominal Outer Diameter(mm) | Nominal Outer Diameter(in) | Maximum Pulling Load |
| Installation(N/Ib) | In Service(N/Ib) |
| 1 | Simplex 2.0mm | 7.6 | 5.10 | 2.0 | 0.079 | 490/110 | 290/65 |
| 1 | Simplex 2.5mm | 7.8 | 5.23 | 2.5 | 0.098 | 490/110 | 290/65 |
| 1 | Simplex 2.8mm | 8.0 | 5.37 | 2.8 | 0.110 | 490/110 | 290/65 |
| 1 | Simplex 3.0mm | 8.2 | 5.50 | 3.0 | 0.118 | 490/110 | 290/65 |
| 2 | Duplex Flat | 28.0 | 18.79 | 4.0X6.8 | 0.157X0.267 | 980/220 | 580/130 |
| 2 | Duplex Round | 18.4 | 12.35 | 4.2 | 0.165 | 980/220 | 580/130 |
| 2 | Duplex Zip | 15.0 | 10.07 | 2.4X4.8 | 0.094X0.188 | 980/220 | 580/130 |
Mechanical Properties
Minimum Bending Radius:
Under installation:20hOD
During operation:10hOD
Temperature Range:
Operating Temperature Range:-40ºC(-40ºF) to +70ºC(+158ºF)
Storage Temperature Range:-50ºC(-58ºF) to +70ºC(+158ºF)
| Maximum Compressive Load:2000N
Repeated Impact: 2.9 N.m (J)3h2 impacts
Twist (Torsion):180h10 times, 125hOD
Cyclic Flexing:25 cycles for armoured cables.;
100 cycles for unarmoured cables.
Crush Resistance:875N/cm (500lb/in) |
Fiber Compliance
| Temperature Cycling | IEC60794-1-2-F2 | Repeated Bending | IEC60794-1-2-E6 |
| Tensile Strength | IEC60794-1-2-E17 | ATorsion | IEC60794-1-2-E |
| Crush | IEC60794-1-2-E3 | Kink | IEC60794-1-2-E10 |
| Impact | IEC60794-1-2-E4 | Cable Bend | IEC60794-1-2-E11 |
| | | Cool Bend | IEC60794-1-2-E11 |
Safety Compliance
| General Purpose Grade | Flammability Test: OFN (UL1581) |
Riser Grade
Plenum Grade
FRPVC Grade
LSZH Grade
LSFROH Grade
FR Grade | Flammability Test: OFNR/FT4 (UL1666)
Flammability Test: OFNP/FT6 (UL 910)
Flammability Test: IEC60332-1
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A
Fire Resistance Test: IEC 60331 / BS 6387 CWZ |
Standard Compliance
GR409-CORE TIA/EIA 568B.3 ICEA-S-83-596

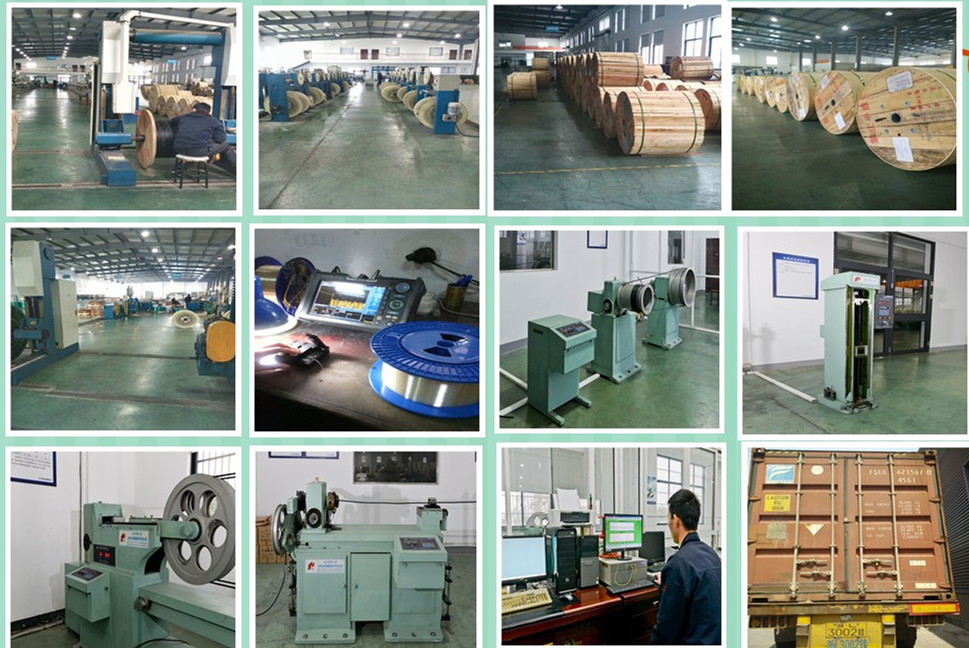

Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
"Zhejiang Kuayue Cable Co., Ltd" is a leading Manufacturer of cables, Specialized in producing and selling communication Cables with more than 7 years of experience, our main popular products are LAN cable. Fiber optic cable, Coaxial cable and telephone cable, other telecommunication cables and accessories.
"Zhejiang Kuayue Cable Co., Ltd" is the subsidiary of Hanli Group. We have served many of biggest company allover world such as telecom. We have our own 3 factory with more than 300 workers and more than 20000 designs of cable,
We have advanced production equipment to meet your high or special requirements. Our products have passed ISO9001, CE and RoHS certification. Our own brands "Hanli"have been widely recognized both by domestic and foreign country. We adhere to not only meet international standards but also take price in meeting customers requirement.
We can provide OEM or ODM services, and also efficient aftersales services. Please trust us can supply you with good quality products and competitive price. For more information,
Our principle: Service from Honesty, Impression from High quality!
Welcome visit our website and contact with us for any question or inquiries!
