Fiber Optic Duplex Round Indoor Cable III for FTTX Use
| Price: |
Negotiable/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

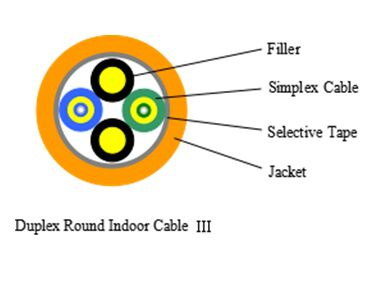

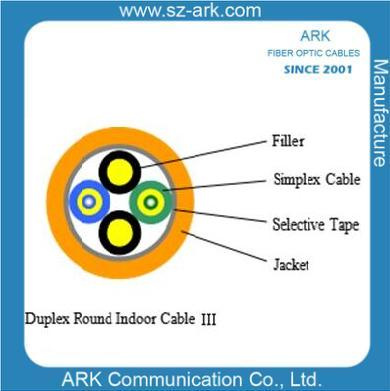

Duplex Round Indoor Cable III
ApplicationUsed as access building cable;Used in indoor cabling, especially used for FTTH.
FeaturesGood mechanical and environmental characteristics;Flame retardant characteristics meet the requirements of relevant standards;The mechanical characteristics of jacket meet the requirements of relevant standards;Soft, flexible, easy to lay and splice, and with big capacity data transmission;Meet various requirements of market and clients.
Specification| Fiber Count | Cable
Dimension (mm) | Cable Weight
(kg/km) | Tensile (N) | Crush (N/100mm) | Min. Bend
Radius(mm) | Range of Temperature(ºC) |
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static |
| 2 | 7.0(without jacket) | 37.2 | 150 | 300 | 300 | 1000 | 20D | 10D | -20~+60 |
| 2 | 9.5(without jacket) | 61.4 | 250 | 500 | 300 | 1000 |
| 2 | 7.5(without jacket) | 38.3 | 150 | 300 | 300 | 1000 |
| 2 | 10(without jacket) | 63.8 | 250 | 500 | 300 | 1000 |
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. D is outer diameter of the round cable; 3.The minimum bend radius (static) is 5D when G657 fiber is used. OptionsFiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;Jacket Material: Enviromental flame retardant polyvinylchloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromental halogen flame retardant polyolefin (ZRPO), or other contracted material;Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;Cable Dimension: The nominal cable dimension, or other contracted dimension;Delivery Length: 1km or 2km, or other contracted length;Other Requirements: Other contracted special requests.
| Prod Model: |
SM-DX-G652D |
| Jacket Color: |
Orange |
| Application: |
FTTH |
| Type: |
Single-mode Fiber |
| Certification: |
IEC,Tlc,Reach,SGS |
| Sheath Material: |
Zrpo,PVC,LSZH |
