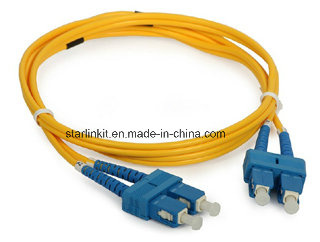

Fiber Optic Patch Cord Cable Single Mode Sc to Sc

Name: Fiber Optic Patch Cord Cable Single Mode Sc to Sc
Brand: all-electronics-online.com
SKU: 720864205
Availability: InStock
Rating: 4.4 (47 reviews)

Price:	US $ 2-10/Piece
Trade Terms:	FOB,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Description: Single-mode Patch Cord PC(2xSC-2xSC, 9/125)

Item:	Starlink Fiber Patch Cord
Code:	SL-SC+SM/DUP
Length:	1-30 M
Fibers:	2 x single-mode, 9/125
Connectors:	SC (A1)	SC (A2)	SC (B1)	SC (B2)
Insertion loss:	< 0.25 dB	< 0.25 dB	< 0.25 dB	< 0.25 dB
Return loss:	> 50 dB	> 50 dB	> 50 dB	> 50 dB

High Quality and Cost-effective 9/125μm Singlemode Fiber Patch Cable

The 9/125μm single mode fiber patch cables are RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for data network.

Star Link also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

How to Choose The Right Fiber Optic Cable Type?

Designation	Fiber Dia. (μm)	Type	Fast Ethernet 100BASE-FX	1 Gigabit Ethernet 1000BASE-SX	1 Gigabit Ethernet 1000BASE-LX	10 Gigabit Ethernet 10GBASE	40 Gigabet Ethernet 40GBASE-SR4	100 Gigabet Ethernet 100GBASE-SR4
OM1	62.5/125	Multimode	2000 Meters	275 Meters	550 Meters (mode conditioning patch cable required)	33 Meters	Not supported	Not supported
OM2	50/125	Multimode		550 Meters	550 Meters (mode conditioning patch cable required)	82 Meters	Not supported	Not supported
OM3 (Laser Optimized)	50/125	Multimode			550 Meters	300 Meters	100 Meters	100 Meters
OM4 (Laser Optimized)	50/125	Multimode			550 Meters	400 Meters	150 Meters	150 Meters
Singlemode	9/125	Singlemode		5km at 1310nm	5km at 1310nm	10km at 1310nm

PS:The difference of OM4 and OM3 fiber mode as the following

1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).

2. The effective modal bandwidth for OM4 is more than double that of OM3.

3. For OM4 patch cable, it is 4700 MHz.km while for OM3, it is 2000 MHz.km.

Prod Model:	SL-SC+SM/DUP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Od:	3.0mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
