Wenzhou Hantang Telecommunication Technology Co., Ltd. >> Fibre-Optical Clear Fitting +dB Cover 7mm

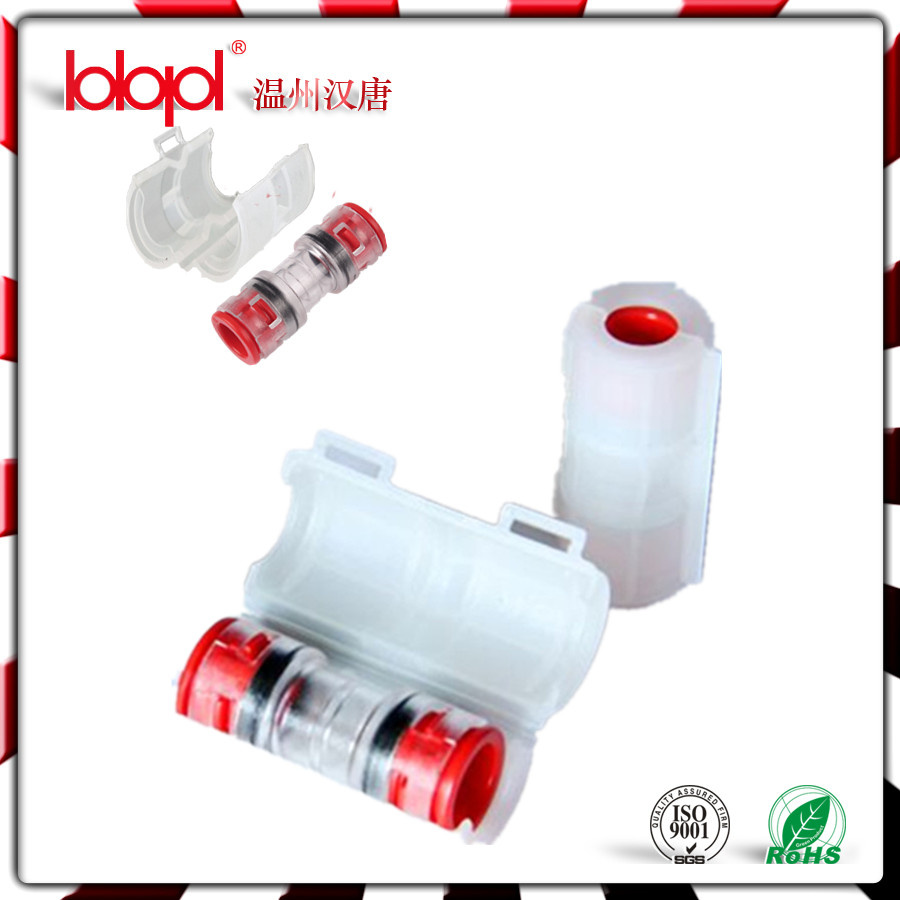

Fibre-Optical Clear Fitting +dB Cover 7mm

Fibre-Optical Clear Fitting +dB Cover 7mm
Price: US $ 0.55/Piece
Trade Terms: FOB,CFR,DAP
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal,Western Union


Plastic HDPE Pipe Fittings
Specifications

Clear Connector for MicroDuct
Easy installation
can be connected and disconnected 10 times
System Benefits
l Installation time reduced.
l Locking clips available in order to prevent microducts accidental disconnection.
l Transparent body allows inspection of correct installation of the cable.
l Anti shock cover available in order to prevent damages. It's special design allow inspection of correct installation of the cable also when installed. Locking clip function included.

Technical Specifications

Fittings         Accessories:
Body:           Transparent PA                            Locking clip:    POM
Cartridge:    Nickel plated brass                     Anti shock cover: PP
Collect:        Black POM
Seals:          NBR
Lock claws: Stainless steel

Performance
Temperature:
Working temperature: -15°C ~ +45°C
Pressure:
Working pressure: 15 bar
Burst pressure: >45 bar

Specification:

No.

Description

Model No.

For Tube OD(mm)

1

3mm Straight Connector

STR03

3-3

2

4mm Straight Connector

Str04

4-4

3

5mm Straight Connector

STR05

5-5

4

6mm Straight Connector

STR06

6-6

5

7mm Straight Connector

STR07

7-7

6

8mm Straight Connector

STR08

8-8

7

10mm Straight Connector

STR10

10-10

8

12mm Straight Connector

STR12

12-12

9

14mm Straight Connector

STR14

14-14

10

16mm Straight Connector

STR16

16-16


Welcome To Contact Us
TeL:86-21 62717588
Fax:86-21-62717585
Mobil:86-13588999961
Prod Model: STD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Transmission Medium: Multimode
Structure: FC
Number Of Cores: Multi-Core
Ferrule Endface: APC
Brand: Blqd
Established in 2006, our the company locates at Liushi, China Electric City, near Yingdangshan Mountain, national landscape, adjacent to highway 104 and Y-T-W expressway, about 20km from Wenzhou railway station, the traffic is very convenient.

Yueqing Baili Pneumatic Co., Ltd is a professional company which specializing in producing and selling pneumatic products and Auto parts. Our spirit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Pneumatic connectors widely used in machinery, metallurgy, foodstuff, package, electronic, automobile protection and etc, and exported to European, American, Middle-east, Southeast Asian and etc. We have latest production equipment and many years. Production experiences and high efficient team, we strictly monitor and control the each procedure from raw material supply to production, from industrial design to management, projects and customer group, devoted to every step, execute strict inspection program, ensure excellent quality.

For the future, we are full of hope, and give remorseless endeavor, insist on "Customer is our center", we would like to build the splendid future with you!
