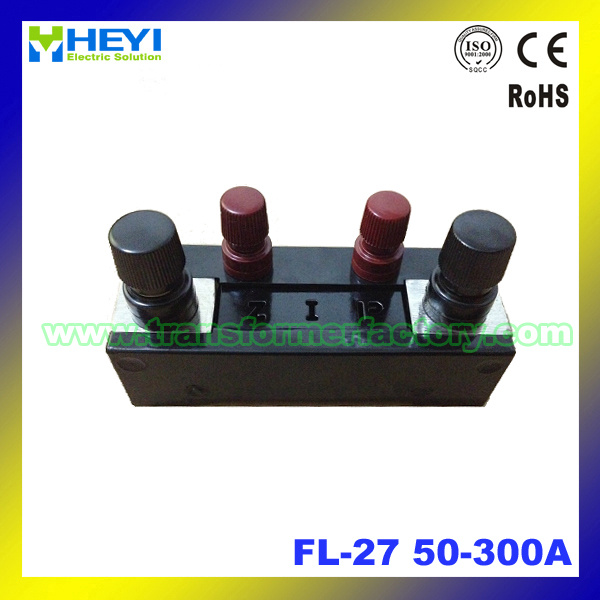

(FL-27 series) Class 0.2 Shunt Resistance DC Ammeter Resistor 1-300A
| Price: |
US $ 106.40-112.00/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Shunts are used to measure DC current, produced by the principle of resistance when a voltage is generated across the resistor according to DC current.
Features:1) Standard for the Installation: IEC 61010-1:1990
2) Accuracy class: 1~4000A: Class 0.2
3) Temperature: -40~+60ºC.
4) Relative humidity:
5) Mechanical properties of resistance: can withstand acceleration of 70 m / s ² and impact frequency of 6 hours of 80 to 120 beats per minute transport point earthquake.
6) Overload performance: 120% rated current value, 2 hours.
7) Voltage drop: 50mV, 60mV, 75mV, 100mV, 150mV, 200mV, 300mV and so on.
8) Heat load: Changes in temperature stabilized, does not exceed the rated current of 50A below 80 ºC; rated current of 50A above does not exceed 120 ºC.
Usage:
Shunts are widely used to expand the range of instruments to measure current with a fixed value shunt resistors, precision alloy, can be used in communications systems, electronic machine, automatic control of power supply circuits do limiting, both flow sampling testing.

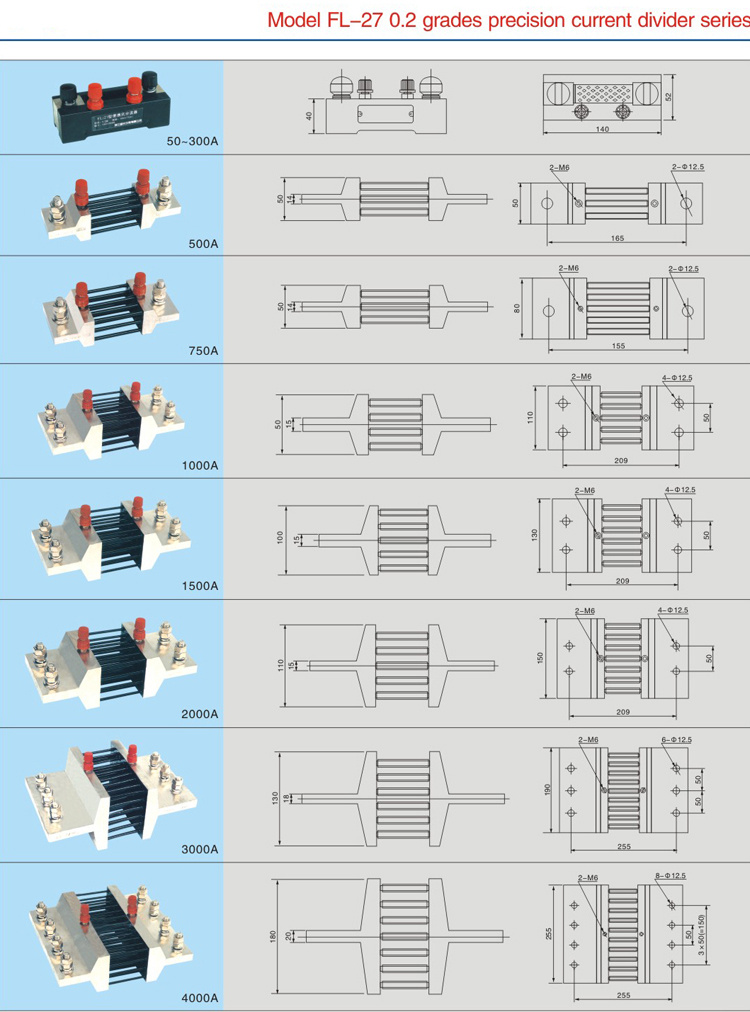

Specification:
Shipping:1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:1. We accept Western Union and T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.
Warranty:1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Customerservice:| Basic services | 1) Manufacturing & Offering high quality split core current transformer ,low & high voltage current transformer ,hall current sensor,digital smart meter and all related equipments. |
| 2) Purchasing all the products and accessories in electrical industry for customers requirements. |
| 3) OEM service |
| Characteristic services | 1) Service of product customization |
| 2) Research and development of new products |
| 3) To provide technical support to solve various technical problems of products. |
| 4) Welcomed to join our HEYI Team.As our agent in accordance with its local market conditions design solutions, providing products and technical support, real-time tracking and other one-stop service. |
Contact us:
Send your Inquiry Details in the Below, Click "Send" Now!
YOUR BENEFITS IS OUR BUSINESS!!!
| Prod Model: |
fL-27 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Fl-27 Shunt |
| Current Range: |
1-300A |
| Accuracy: |
Class 0.2 |
| Voltage Drop: |
50mv, 60mv, 75mv. 100mv, 150mv , 200mv, 300mv |
| Working Temperature: |
-40~+60 C |
| Humidity: |
<95 (35 C) |
| Resistance: |
Fixed Resistor |
| Function For Resistance: |
Shunt Resistor |
| Installation: |
DIP Resistor |
| Package Type: |
Throught Hole |
| Material: |
Manganese-Copper Alloy |
We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
1. Who we are
Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer
Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss
2 why choose us
We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.
3 Heyi Mission, vision values
Heyi mission is to provide reliable, accurate and customized current transformer solution
Heyi vision is leading global split core CT manufacture and energy solution provider
Values Enthusiastic by our work, we offer a quality personal and close service to our customers
Some products have been approved by CE and IEC certificates.
