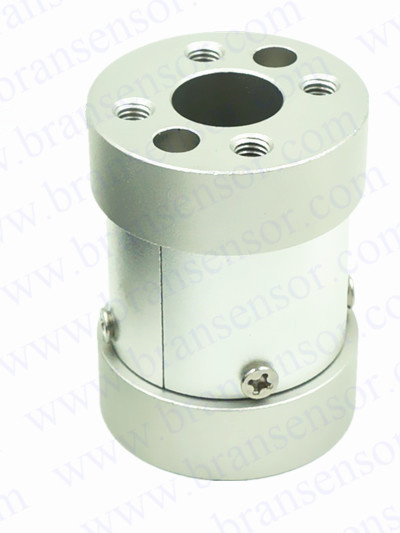

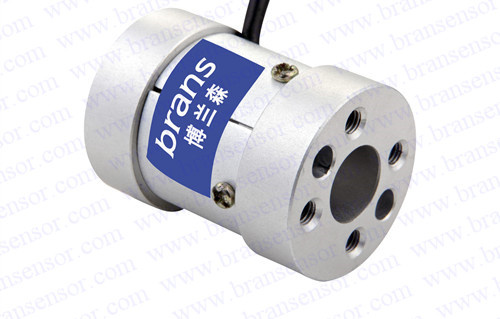

Flange to Flange Miniature Reaction Torque Sensor (BTQ-404)
| Price: |
US $ 300/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
1. Product Name: Flange to Flange Reaction Torque Sensor (BTQ-404)
2. Material: Alloy Steel
3. Capacity: 1,2,3,5,6,10, 20,30,50,100,150N.m

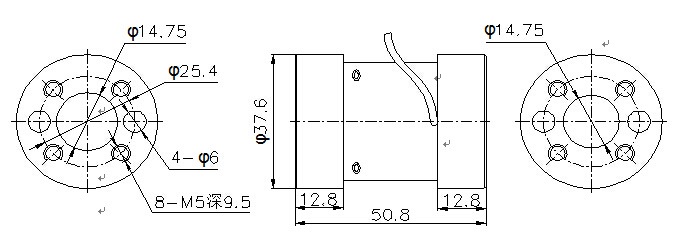

4. Design
5. Datasheet| Number | Specifications | Technique |
| 1 | Capacity | 1,2,3,5,6,10, 20,30,50,100,150N.m |
| 2 | Rated output | 2.0±10%mV/V |
| 3 | Zero balance | ±2% F.S. |
| 4 | Non-linearity | 0.25%F.S. |
| 5 | Hysteresis | 0.25%F.S. |
| 6 | Repeatability | 0.1%F.S. |
| 7 | Creep(30min) | 0.1%F.S. |
| 8 | Temp.effect on output | 0.05%F.S./10ºC |
| 9 | Temp.effect on zero | 0.05%F.S./10ºC |
| 10 | Input impedance | 410±10Ω |
| 11 | Output impedance | 350±5Ω |
| 12 | Insulation | ≥5000MΩ/100VDC |
| 13 | Recommended excitation | 10V |
| 14 | Maximum excitation | 15V |
| 15 | Compensated temp range | -10~60ºC |
| 16 | Operation temp range | -20~80ºC |
| 17 | Safe overload | 120%F.S. |
| 18 | Ultimate overload | 150%F.S. |
| 19 | Cable size | φ3×3000mm |
| 20 | Material | aluminum alloy() |
| 21 | Weight approx. | 0.2kg |
| 22 | IP Class | IP65 |
6. Features:
Easily integrates into OEM applications
Designed for Torque auditing
Flange to flange design, easy to install
Alloy or stainless-steel construction
Strain gauge based
7. Description:
The BTQ-404 Flange to Flange Reaction Torque Sensor can accommodate applications that include automotive braking, engine and transmission dynamometers, torque table, fastener testing, aircraft engine testing, and marine shaft torque measurements with shaft horsepower monitors. The BTQ-404 is available in both, aluminum and stainless steel construction and offers a unique solution for torque auditing applications. This particular Reaction Torque Sensor can be used to evaluate low-torque components and controls. Flange-reaction torque sensors measure small-reaction torque levels using flange-to-flange connections in-line with the component under test.
Need something special or a completely customized design? Contact BRANS to discuss your particular application requirements.Welcome to Brans and glad to cooperate with you together. If you have any new products need to OEM or customized, please contact with Brans in time. www.bransensor.com
| Prod Model: |
BTQ-404 |
| Certification: |
SGS |
