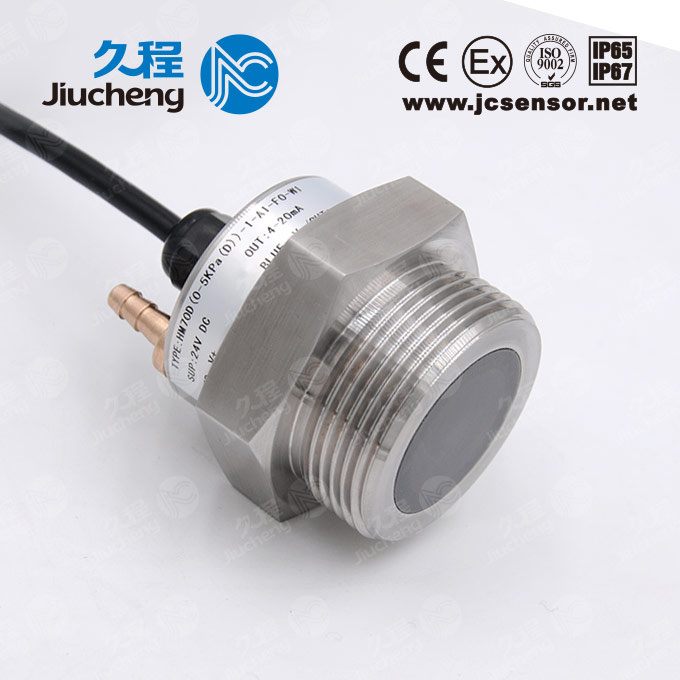

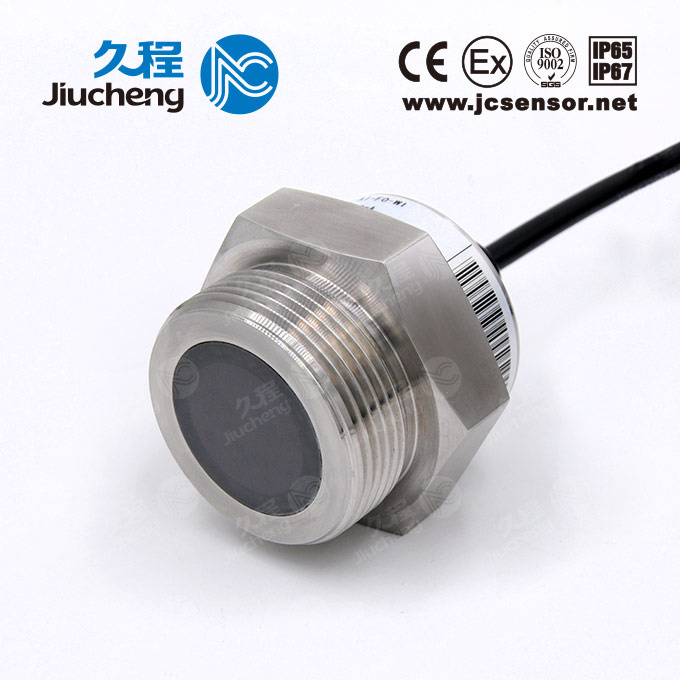

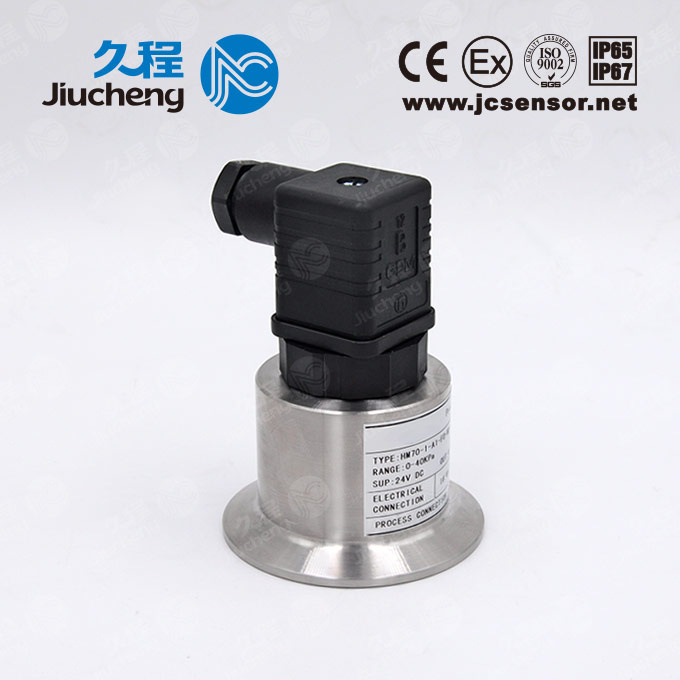

Flat Membrane Milk Tank Level Sensor (JC670-08)
| Price: |
US $ 130-270/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
JC670-08 |
| Thread Type: |
Customized |
| Measuring Medium: |
Gas and Liquid |
Product Description
Product Overview JC670 hygienic flat-diaphragm pressure transducer adopts imported high-accuracy and high-stability pressure sensor module to covert the absolute pressure or the gauge pressure of the measured medium into 4 ~ 20mA, 1 ~ 5V / 0 ~ 5V standard electrical signal through high-reliability amplification circuit and precise temperature compensation. High-quality sensor and encapsulation technology of full seal welding as well as improved assembling process have ensured excellent quality and best performance of this series of product.
Performance Parameters | Measured Medium | Liquid, gas or vapor compatible with 316 stainless steel |
| Measuring range | -100KPa~0~ 20KPa…35MPa |
| Overload capacity | 1.5 times FS pressure |
| Pressure type | Gauge pressure or absolute pressure |
| Overall accuracy | Typical: ±0.25%FS | Maximum: ±0.5%FS) |
| Long-term stability | Typical: ±0.1%FS/ year | Maximum: ±0.2%FS/ year |
| Zero point temperature drift | Typical: ±0.02%FS/ºC | Maximum: ±0.03%FS/ºC |
| Sensitivity temperature drift | Typical: ±0.02%FS/ºC | Maximum: ±0.03%FS/ºC |
| Medium temperature | -20~85ºC |
| Compensation temperature | -10 ~ 50ºC |
| Ambient temperature | -20~80ºC |
| Range of power supply | 12~36VDC (24VDC generally) |
| Signal output | 4~20mA / 1~5 V DC /0~5 V DC / 0.5~4.5V DC |
| Load resistance | ≤(U-12)/0.02Ω |
| Thermal lagging | ±0.1% (typical) |
| Process connection | M30x1.5 external thread or clamp |
| Enclosure protection degree | Plug type (IP65); cable type (IP67) |
| Safe explosion-proof degree | Ex iaII CT6 |
| Response time | ≤2 ms |
| Insulation resistance | 100MΩ,500VDC |
| Weight | Approx. 0.5kg |
Product Features Product Application*High stability and high sensitivity *Hygienic pressure pipelines*Lightning and RFI immunity *Food and beverage processing
*Fully made of stainless steel *Medical and pharmaceutical *Clean flat type isolating diaphragm *Sewage treatment*Diversified signal output form and adjustable zero *Viscous medium pressure measurement *point and full scale*Reverse polarity protection and transient over-current and over-voltage protectionOrdering Informaiton| JC670-08 | Hygienic Flat - diaphragm Pressure Sensor |
| | Pressure type | Gauge pressure ( G, may not be indicated); absolute pressure (A) |
| | Range | Measuring Range |
| | ( 0~ X KPa or MPa) |
| | | Code | Overall accuracy (linearity + repeatability + lagging) |
| | 1 | ±0.5%FS |
| | 2 | ±0.25%FS |
| | 3 | ±0.1%FS |
| | Code | Signal Output |
| | A1 | 4~20mA |
| | V1 | 1~5V DC |
| | V2 | 0~5V DC |
| | V3 | 0.5~4.5V DC |
| | Code | Additional functions |
| | F1 | M30x1.5 external thread |
| | F2 | Clamp type |
| | F0 | Special |
| | W1 | Cable type (IP67, 2m) |
| | W2 | Socket type (IP65, DIN43650) |
| | E | ntrinsically safe explosion-proof type Ex iaIICT6 |
| JC670-08 (0~100KPa)-1 -A1 -F1-W1 |
Tips of Selection1. The measured medium shall be compatible with the material contacting with the product.
2. The code E, an additional function code for selection, namely, intrinsically safe explosion-proof Ex iaIICT6, must
be power supplied via safety barrier.
3. Please contact us for other special requirements and clearly indicate them in the order.
4. During the field installation of flat diaphragm, the correct sealing method shall be adopted to prevent the

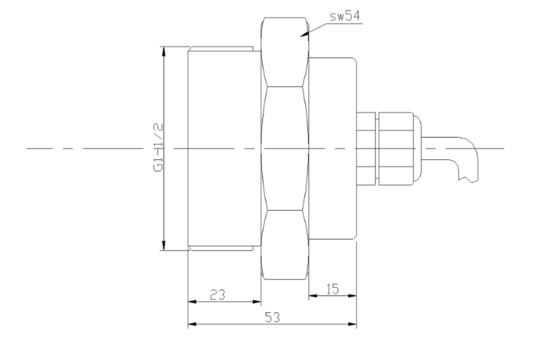

installation stress influencing product stability.Dimension

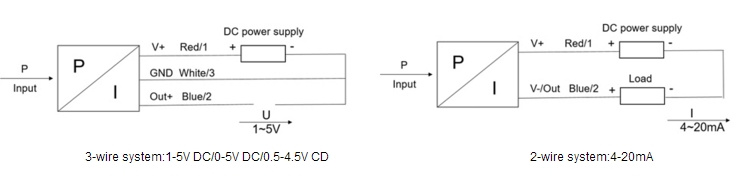

Electric connection| Plug | Cable | 4-20mA | 1-5V/0~5V/0.5-4.5V DC |
| 1 | Red | Positive power supply: +V | Positive power supply: +V |
| 2 | Blue | Signal output / negative power supply: OUT/-V | Positive signal output: +OUT |
| 3 | White | Idle | Common port / power source end: GND/-V |
| 4(⊥) | Yellow | Grounded in case of strong disturbance | Reliably grounded in case of strong disturbance |
